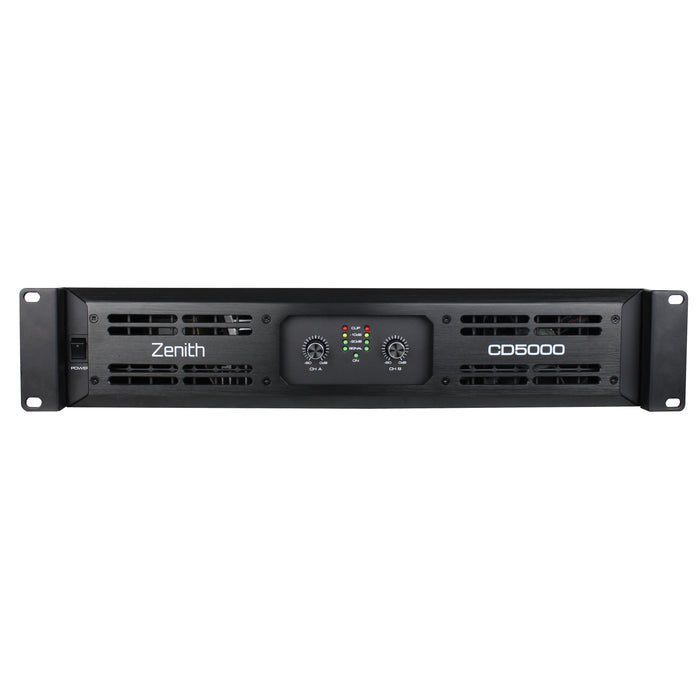

Zenith CD5000 Power Amplifier 5000W RMS 2 Ohms

by Zenith
Original price £699.00 (inc. VAT) - Original price £699.00 (inc. VAT)
Original price £699.00 (inc. VAT)
£699.00 (inc. VAT)
£699.00 (inc. VAT) - £699.00 (inc. VAT)
Current price £699.00 (inc. VAT)
SKU AMP06
DETAILS

The Zenith CD5000 is a high-powered 5000W RMS power amplifier that delivers outstanding sound quality for installed sound systems and portable PA applications.

The Zenith CD 5000 is stable down to 2 Ohms minimum, with bridge output mode at 4 & 8 Ohms.

  • Power output @ 8Ω: 2 x 1000Wrms
  • Power output @ 4Ω: 2 x 1700Wrms
  • Power output @ 2Ω: 2 x 2500Wrms
  • Power output bridge @ 8Ω: 1 x 3400Wrms
  • Power output bridge @ 4Ω: 1 x 5000Wrms

Features Class D amplification ensuring an energy-efficient operation, and low in running costs. Housed in a compact 2U rack chassis.

Automatic clip limiting along with high-efficiency tunnel cooling and DC fans ensure reliability time after time.

Zenith CD5000 Key Features:

  • Protection circuits: Soft start, limit, thermal, short circuit, overload, DC fault protection and AC power supply fuse
  • LED indicators: Power, active, signal and clip
  • Input connections: 2 x XLR sockets, 1 x powerCON mains input
  • Output connections: 2 x speakON connectors and 2 pairs of binding posts
  • Additional features: Switchable stereo, parallel and bridge and switchable low cut filters (30Hz, 50Hz and OFF)
    SPECS & DOWNLOADS

    Download the PDF User Manual HERE >

    Zenith CD5000 Power Amplifier Specifications

    • Power supply: 220-240V AC 50/60Hz
    • Power consumption: 1200W (1/8 power @ 8Ω)
    • Dimensions: 88 x 483 x 460mm
    • Weight: 9.5kg
    • Power output @ 8Ω: 2 x 1000Wrms
    • Power output @ 4Ω: 2 x 1700Wrms
    • Power output @ 2Ω: 2 x 2500Wrms
    • Power output bridge @ 8Ω: 1 x 3400Wrms
    • Power output bridge @ 4Ω: 1 x 5000Wrms
    • Frequency response: 20Hz to 20kHz
    • Input sensitivity: 1.2V, 32dB or 26dB
    • Input connections: 2 x XLR sockets, 1 x powerCON mains input
    • Output connections: 2 x speakON connectors and 2 pairs of binding posts

    }
