Martin Audio Adorn ACS40TS 4" 2-Way Enclosed Ceiling Speaker, 100V/16 Ohms
BLACK FRIDAY - Use code BF10 at checkout
Save an EXTRA 10% sitewide, including Sale items!
DETAILS
The ACS-40TS brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotels and concourses to retail outlets, bars and restaurants.
Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk- dome tweeter, the ACS-40TS produces 108dB peak output at 1 metre and has a high-fidelity sonic character ideal for both music and speech reproduction. Its ported design delivers strong bass that extends down to 73 Hz.
The very wide 180° conical coverage of the ACS-40TS makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage — leading to a reduction in installation cost. It features a shallow backcan for installation in ceilings with a minimum cavity depth.

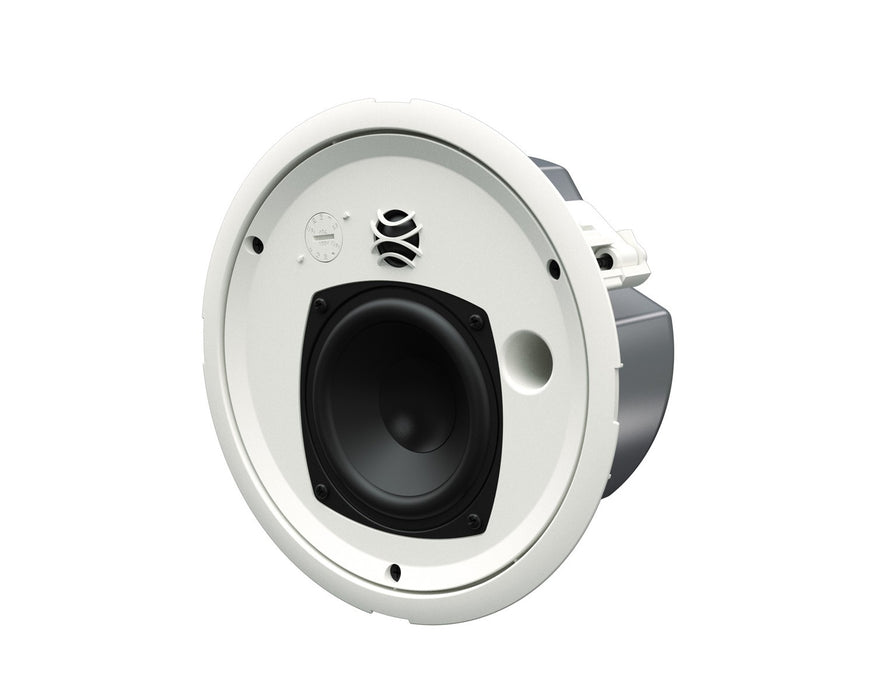

It incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch accessible behind the powder-coated, perforated steel grille. The switch also provides for 16-ohm low impedance operation — enabling four or more speakers to be driven in parallel from a single amplifier channel. For full-bandwidth protection, the low and high-frequency sections are individually against overload by auto-resetting thermal fuses.
Martin Audio Adorn ACS40TS Key Features
- High performance two-way ceiling speaker
- 4” (100mm) LF driver and 0.75” (19mm) HF dome tweeter
- Very wide 180° conical coverage pattern reduces speaker count required for even coverage
- 70V/100V multitap line transformer or 16-ohm low-impedance operation
- Low and high-frequency overload protection
- UL94V-0 rated baffle with zinc-plated steel backcan
- Quick release, bezel-less grille
- Tile rails and C-ring included
- 5-year warranty
Applications
- Retail outlets
- Cafes, bars and restaurants
- Museums and Houses of Worship
- Hotels, casinos and concourses
- Transportation facilities
- Boardrooms and reception areas
View the Martin Audio range of products HERE
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
Martin Audio Adorn ACS40TS Specifications
- Type: Ultra-compact, passive two-way ceiling speaker, ported bass reflex
- Frequency response: 106Hz-20kHz ± 3dB -10dB @ 73Hz
- Drivers: LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor
- Rated power: 40W AES, 160W peak
- Sensitivity: 86dB / 1W(4V) / 1m
- Maximum SPL: 108dB peak
- Nominal impedance: 16 ohms
- Dispersion (-6dB): 180° conical up to 10kHz
- Crossover: 3.5 kHz passive (LF and HF auto-resetting fuses)
- Enclosure: UL 94V-0 rated ABS baffle with steel backcan
- Finish: Baffle and grille: RAL9016 white Backcan: zinc plated

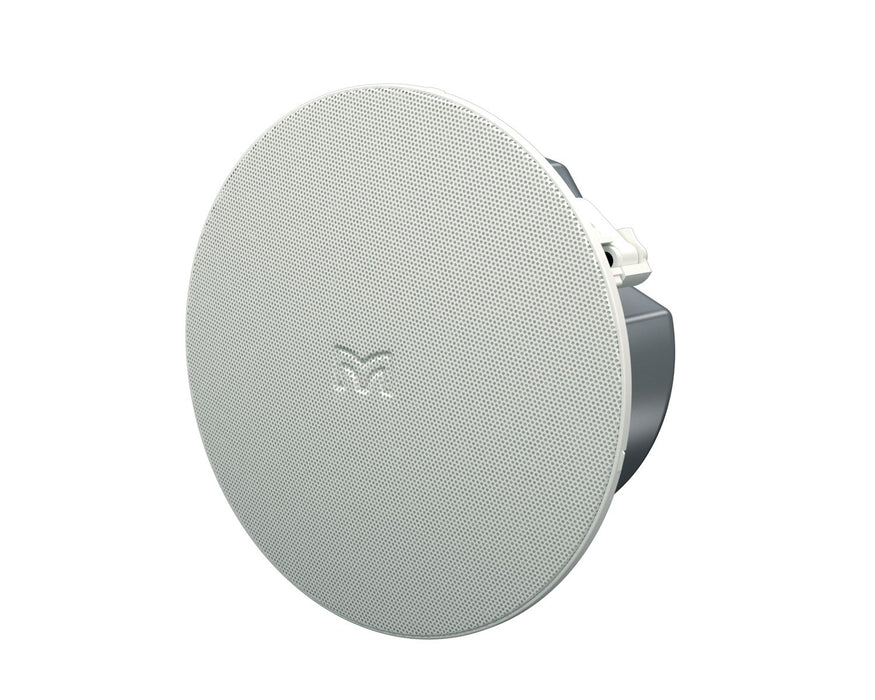

- Protective grille: Perforated steel, powder-coated, bayonet fitting
- Connectors: Ceramic connector (in and link) located behind fire-retardant steel cover
- Accessories (included): 2 tile rails, C-ring backing plate, Cut-out template
- Voltage taps: 100V – 20W / 10W / 5W, 70V – 20W / 10W / 5W / 2.5W
- Dimensions: (OD) 221mm x (D) Back Can 97mm, (D) Inc. Grille 115mm
- Weight: 2.2kg (4.8lbs)
