DETAILS

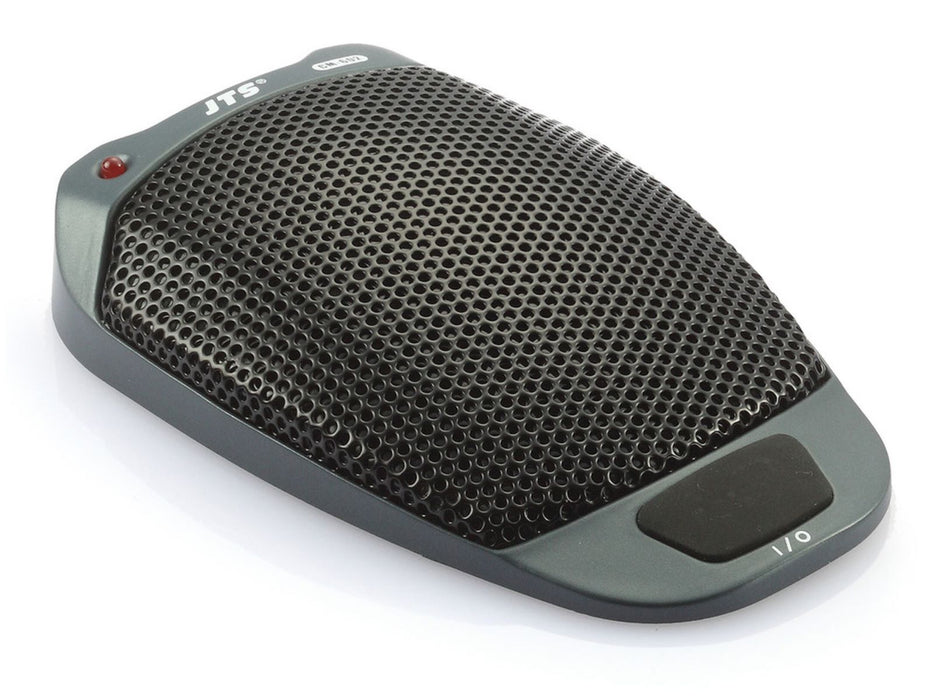

The JTS CM-601 is a versatile back electret cardioid boundary microphone, designed to deliver exceptional audio quality with added features for professional applications.
Its compact, low-profile design makes it ideal for discreet placement in various environments, including:
- Conferences and Offices: Perfect for conference tables or podiums, ensuring clear communication without cluttering the space.
- Theatrical Performances: Easily placed on stages to capture dialogues, speeches, or sound effects with minimal visual distraction.
- Places of Worship: Discreetly capture sermons, prayers, or musical performances without detracting from the ambiance of the worship space.
- Interviews: Provides clear audio for interviews in studios or remote locations, offering flexibility and ease of use with its XLR connection.
Versatile Professional Microphone
The JTS CM-601 shares the same robust build and design as the CM-602, with additional features tailored to enhance audio performance. The back electret cardioid condenser capsule ensures precise sound capture, while the 3-step low-cut switch allows for tailored sound shaping to adapt to different acoustic environments.
Not only this, the CM-601 features a configurable push-button that enables switching between push on/push off, momentary on (Push to Talk), and momentary off (Push to Mute) modes for flexible control over microphone operation.
JTS CM-601 Key Features:
- Back Electret Cardioid Condenser Capsule: Delivers natural and articulate sound with enhanced sensitivity and clarity.
- 3-Step Low-Cut Switch: Allows adjustment of bass frequencies to reduce rumble and improve clarity in various recording or live sound scenarios.
- Configurable Push Button: Enables switching between push on/push off, momentary on (Push to Talk), and momentary off (Push to Mute) modes for flexible control over microphone operation.
- 3-Pin XLR Socket: Requires +48V phantom power, ensuring compatibility with mixers, amplifiers, and audio interfaces.
- Low-Profile Design: Discreet and unobtrusive, suitable for placement on tables, stages, or altars without detracting from the surroundings.
- Effective Noise Reduction: Elastic cartridge suspension minimizes handling noise for cleaner audio transmission.
The JTS CM-601 is designed to meet the demands of professional audio applications, providing reliability, clarity, and versatile performance in diverse environments.
SPECS & DOWNLOADS
Download the PDF User Manual HERE >
JTS CM-601 Specifications
-
Frequency response: 30Hz - 12kHz
-
S/N Ratio: 67dB
-
Output Connector: 3 Pin Male Mini XLR
-
Power Supply: 12-52V DC Phantom Power
-
Microphone Type: Electret Condenser
-
Current Consumption: ≤6mA
-
Directional Pattern: Half-Cardioid
-
Low Frequency Roll-Off: 80Hz - 120Hz
-
Impedance: 100Ω
-
Sensitivity (at 1kHz): 53±3 dB* (2.23mV) 0dB
-
Max. SPL for 1% THD: 125dB
-

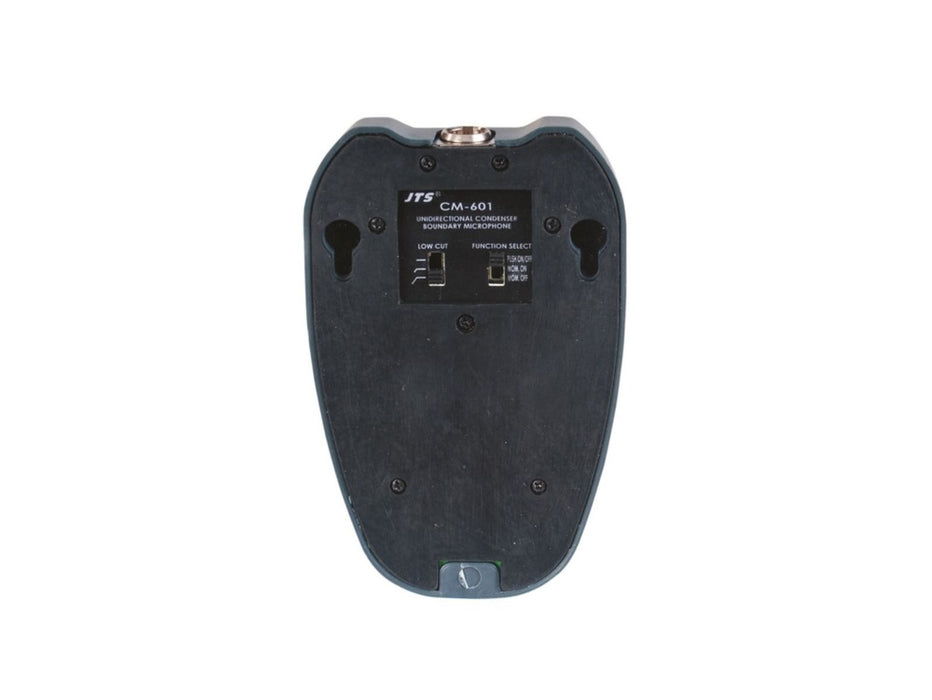

Switches: Push Control On/Off, Function Selection Push On/Off, Momentary On/Off, Low Cut Selection
