Eagle SL2000P 'Ready-to-go' Noise Pollution Sound Limiter
The Eagle SL2000P is a ready-to-go noise pollution system that automatically limits the sound output from connected audio equipment.
Thanks to a straight-forward design the Eagle noise limiter is extremely simple to install and operate and does not require a professional electrician to install it for you.
The SL2000P is extremely versatile and can be installed into a variety of environments such as in pubs, bars, wedding venues, hotels & marques; and is crucial for avoiding costly prosecutions and closures and is approved by Environmental Health Departments.
Thanks to an all-in-one, compact design, the SL2000P is not only great for fixed installations but can also be used for mobile applications such as for mobile DJs and entertainers that want to be able to limit the output from their equipment.

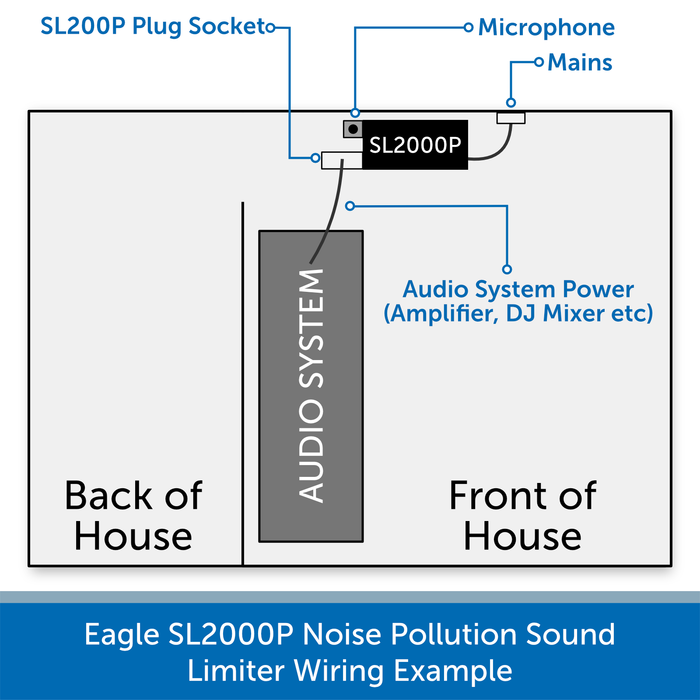

The Eagle SL2000P comes complete with a 2-gang UK mains socket and microphone pre-fitted to the unit; simply plug in your amplifier, mixer, or active PA speaker and away you go. Please note, the microphone needs to be within 1 metre away from the loudest point to ensure an accurate reading.
How is the output monitored?
An LED traffic light system is present on the SL2000P which gives users a visual reading of the current sound output, with an 8-second warning timer when the noise level is breached. An additional remote LED traffic light system can also be connected which can be installed in another area should the main unit not be accessible/visible at all times i.e. behind a bar, above a stage, etc.
Features two operating modes via the key switch - Monitor allows the unit to access the music levels but will not cut the power, great for setting up - Active allows the unit to monitor the music, but will cut-off the power if the maximum output level is met.
What happens when the power is cut?
After the reset button has been triggered and the volume has not been reduced, the unit will cut off for the time you have preset, and then it will reset itself.
The reset time can be adjusted internally using the Vr5 Timer Adj.
Wiring the remote lighting indicator:
Connections A-D are low voltage drive outputs only, and are connected to corresponding connections on the remote light display is fitted.
A = Traffic Lights 0 Volt (Common)
B = Traffic Lights Red Channel
C = Traffic Lights Yellow Channel
D = Traffic Lights Green Channel
SPECS & DOWNLOADS
Eagle SL2000P Specifications
- Depth (mm): 239
- Height (mm): 317
- Width (mm): 80
- Product Dimensions (mm): 239 x 317 x 80
- Net weight (kg): 7.5
- Attenuation (dB): 0-120
- Colour: Black
