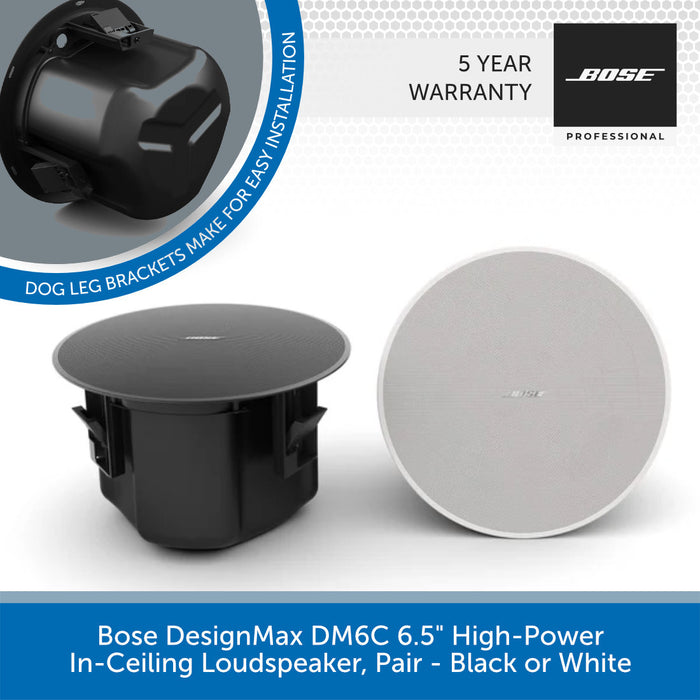

Bose DesignMax DM6C 6.5" High-Power In-Ceiling Loudspeaker, Pair - Black or White
DETAILS
The Bose DesignMax DM6C In-Ceiling Loudspeakers deliver exceptional audio performance paired with sleek aesthetics, making them a perfect fit for any commercial environment.
These 125-watt speakers feature a coaxial two-way design, with a 6.5-inch woofer and a 1.25-inch coaxial tweeter, providing rich lows and clear highs across a frequency range of 59 Hz to 20 kHz.
The DM6C integrates seamlessly into any space and installs easily with the patented QuickHold mounting arms, reducing strain and installation time.
Bose DesignMax DM6C Key Features:
-
Coaxial Two-Way Drivers: Enjoy deep bass and crisp highs with the DM6C’s 6.5-inch woofer and 1.25-inch tweeter. The Dispersion Alignment system ensures consistent and balanced sound coverage throughout the room by matching the acoustic pattern of the woofer with that of the tweeter.
-
Sleek In-Ceiling Design: Available in black or white, the DM6C features a minimalistic grille with removable logos, allowing the speakers to blend seamlessly into any room décor.
-
Quick and Secure Installation: The patented QuickHold mounting system makes installation fast and secure, reducing the risk of product damage during setup.
-
Flexible System Integration: Combine the DM6C with other models in the DesignMax series to create a custom audio solution tailored to your specific needs. For even better performance, pair the DM6C with Bose Professional DSPs and amplifiers to enable SmartBass processing and optimized speaker EQ.
-
Versatile Applications: Ideal for a variety of commercial settings, including performing arts venues, places of worship, conference centers, retail stores, and hospitality venues.
Why Choose the Bose DesignMax DM6C? The Bose DesignMax DM6C In-Ceiling Loudspeakers offer a perfect balance of power, performance, and aesthetics. Whether you're designing a new sound system or upgrading an existing one, these speakers provide the versatility and quality needed to enhance any commercial space.
In the Box:
- 2 x DesignMax DM6C Loudspeakers in Black or White
- 2 x Speaker Grilles
- 2 x Tile Bridges
- 1 x Cutout Template
- 1 x Installation Guide
SPECS & DOWNLOADS
Bose DesignMax DM6C PDF Spec Sheet > DOWNLOAD HERE
Bose DesignMax DM6C Specifications
Physical:
- Colours: Black (RAL 9005), white (similar to RAL 9003), paintable
- Cutout Diameter: 11.5 in (292 mm)
- Enclosure Material: Engineered-plastics front baffle with integrated steel-formed back can
- Environmental Testing: Indoor only
- Grille Material: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
- Logo: Rotatable, removable
- Mounting/Rigging Provisions: (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
- Net Weight: 14.3 lb (6.5 kg), loudspeaker with grille (single) / 1.8 lb (0.8 kg), tile bridge (single)
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D): 14.0 in × 9.4 in (356 mm × 239 mm), loudspeaker diameter × depth / 11.3 in × 8.8 in (287 mm × 223 mm), backcan diameter × depth
-
Shipping Weight: 39.1 lb (17.7 kg), pair
Performance:
- Frequency Range (-10 dB): 59 Hz – 20,000 Hz
- Coverage, Horizontal: 120° conical
- Maximum SPL at 1 m: 109 dB
- Nominal Impedance: 8 Ω (transformer bypass)
- Power Handling, Continuous: 125 W
- Power Handling, Peak: 500 W
- Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
- Sensitivity (SPL/1 W at 1 m): 88 dB
- Transformer Taps, 100V: 5, 10, 20, 40, 80 W, bypass
- Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
- Coverage, Vertical: 120° conical
Transducers:
- Crossover Frequency: 1.7 kHz, passive 2-way crossover
- Driver Protection: Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
- High-Frequency Transducer Quantity and Size: 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted
- Low-Frequency Transducer Quantity and Size: 1 × 6.5 in (165 mm) woofer
