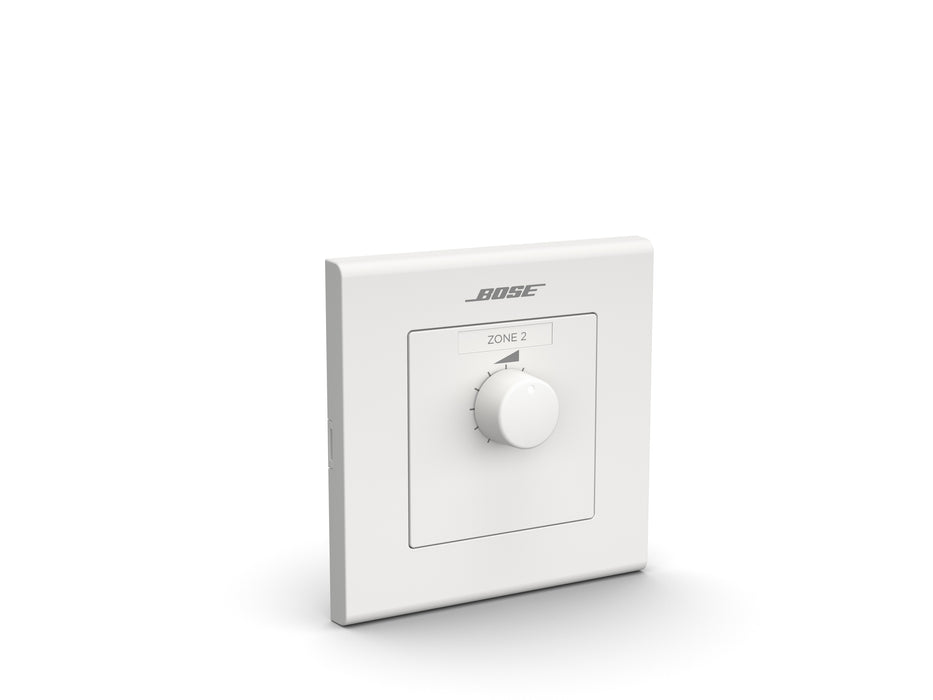

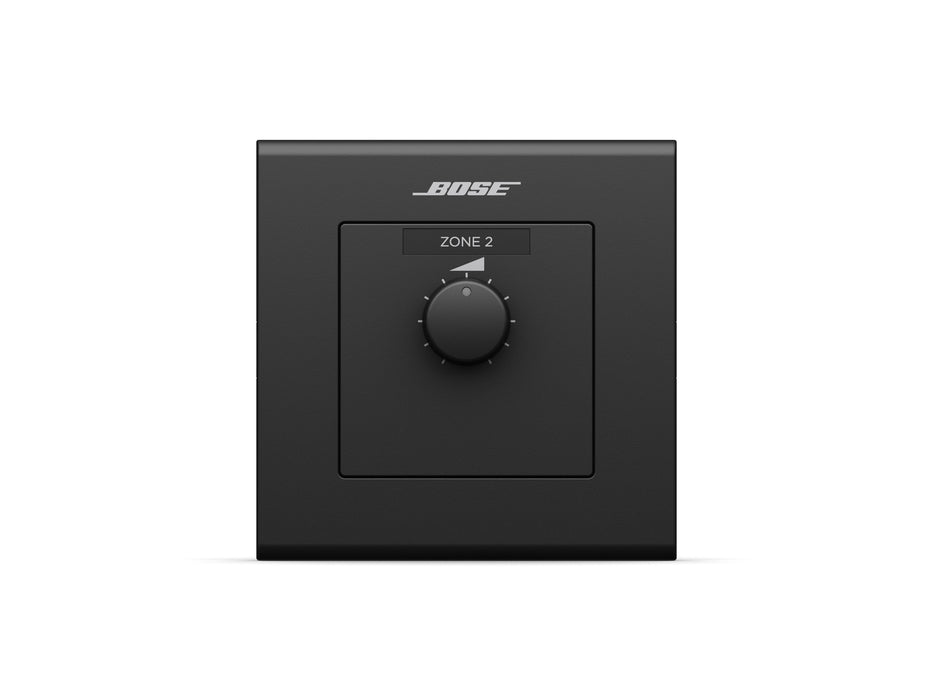

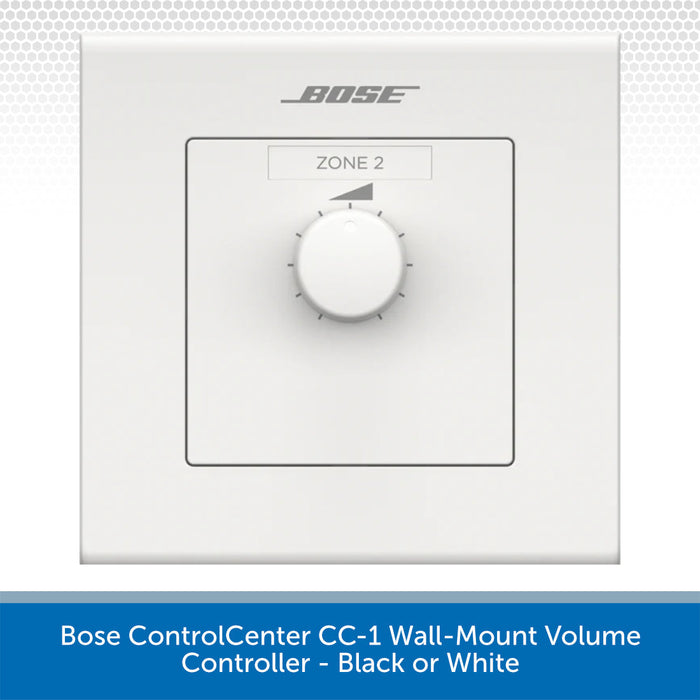

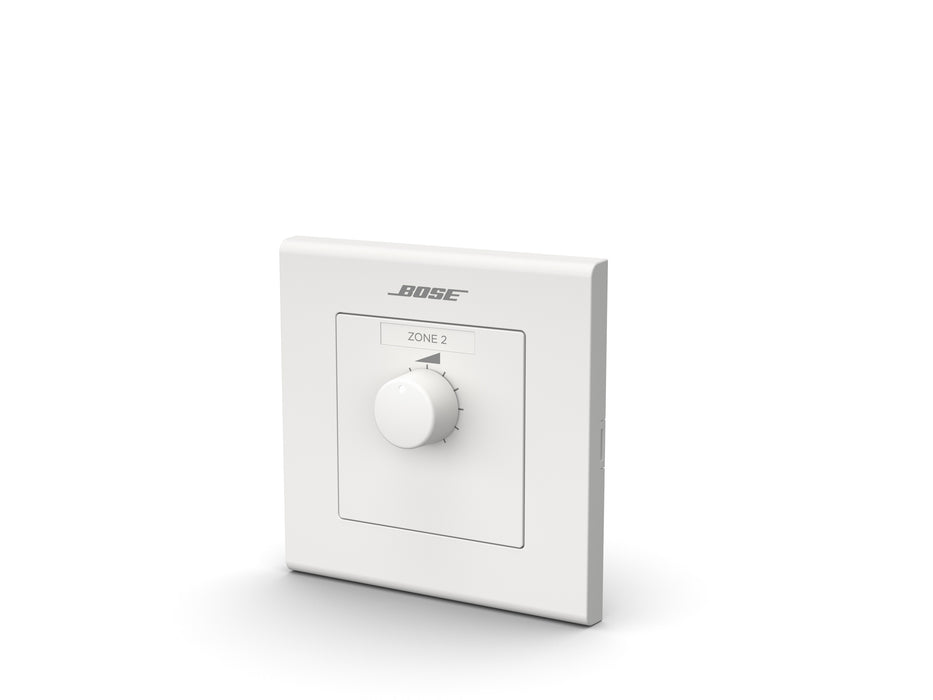

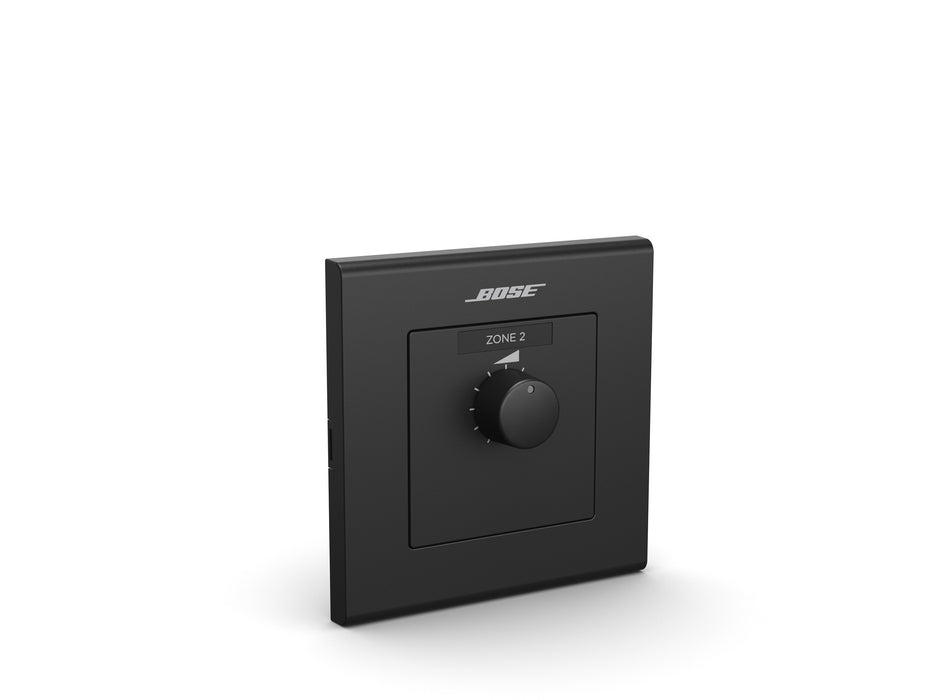

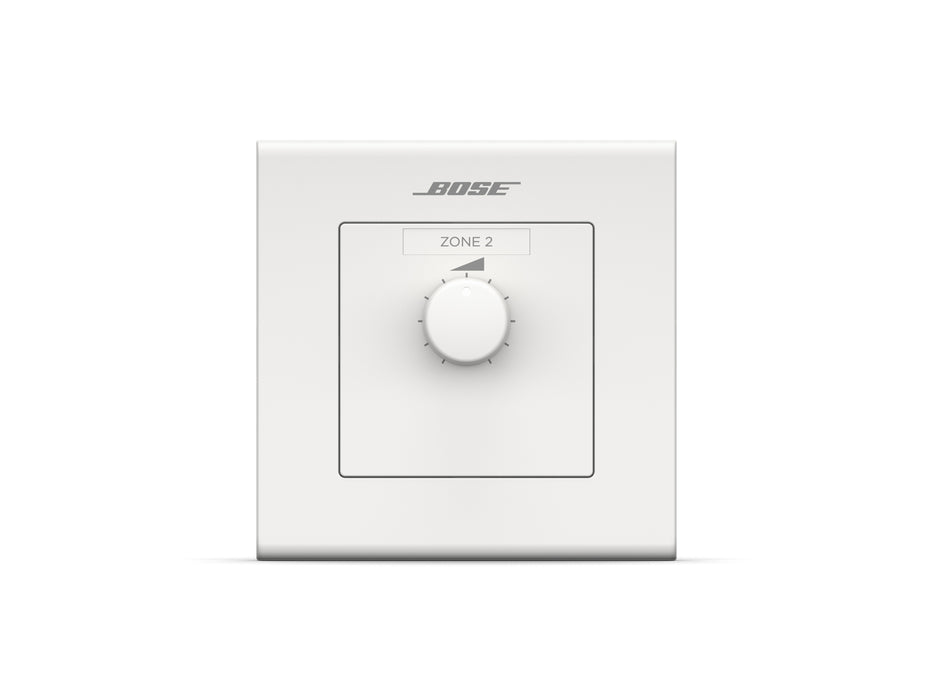

Bose ControlCenter CC-1 Wall-Mount Volume Controller for FreeSpace Amplifiers - Black or White
DETAILS
The Bose ControlCenter CC-1 is an essential volume control solution designed for use with FreeSpace, PowerShare, and ControlSpace amplifiers.
This wall-mount controller enhances audio management in commercial environments, including retail stores, restaurants, bars, hospitality venues, and religious facilities.

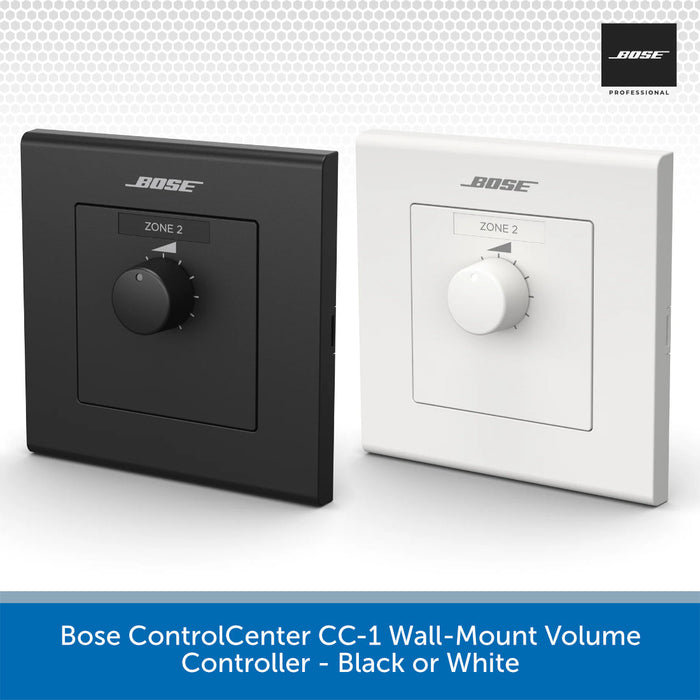

The CC-1 offers straightforward volume control and is available in both black and white finishes, fitting standard 1-gang electrical boxes. This model is perfect for creating a user-friendly audio experience without complex setups.
With its intuitive front panel featuring a single volume knob, the CC-1 allows for effortless adjustments. Each unit comes with pre-printed labels and two blanks for custom labeling, ensuring that users can easily identify zones. Additionally, it supports a maximum cable length of 2000 ft to FreeSpace or PowerShare amplifiers, enabling flexible installation options.
Bose ControlCenter CC-1 Key Features:
- Simple Volume Control: Allows for easy adjustment of sound levels in various environments.
- Multiple Compatibility: Works seamlessly with Bose FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors.
- Customizable Labeling: Includes sheets of pre-printed labels for easy identification and two blank labels for personalization.
- Flexible Installation: Designed to fit in standard 1-gang electrical boxes, with options for North America, Europe, and Japan.
- Robust Performance: Supports long cable runs, making it suitable for expansive installations.
Efficient Audio Management for Commercial Spaces
The Bose ControlCenter CC-1 is the perfect solution for businesses looking to enhance their audio experience with user-friendly volume control.
SPECS & DOWNLOADS
Bose ControlCenter CC-1 PDF Spec Sheet > DOWNLOAD HERE
Bose ControlCenter CC-1 Specifications
Electrical:
-

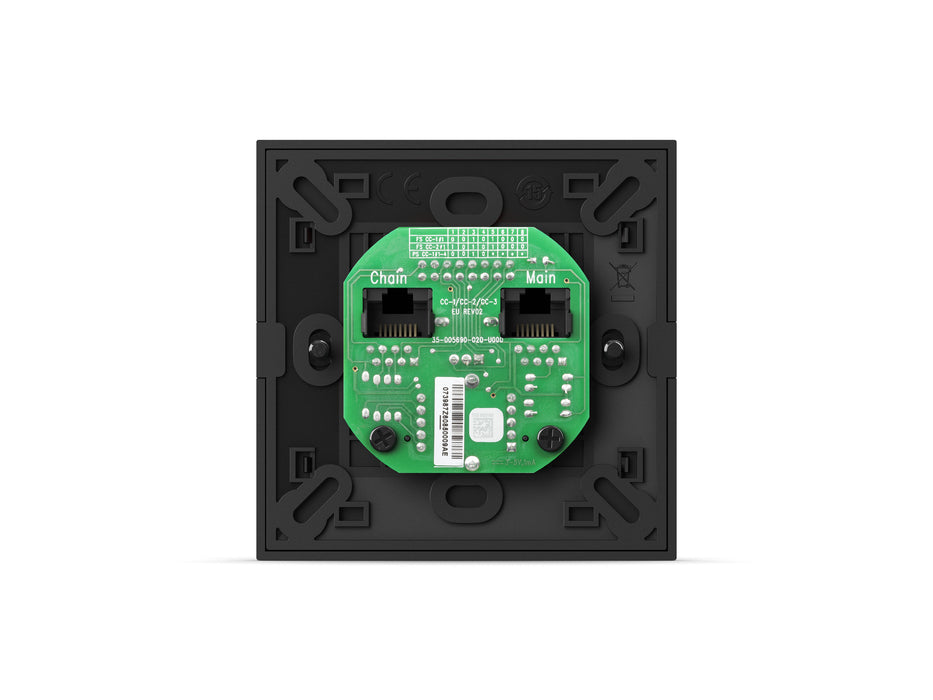

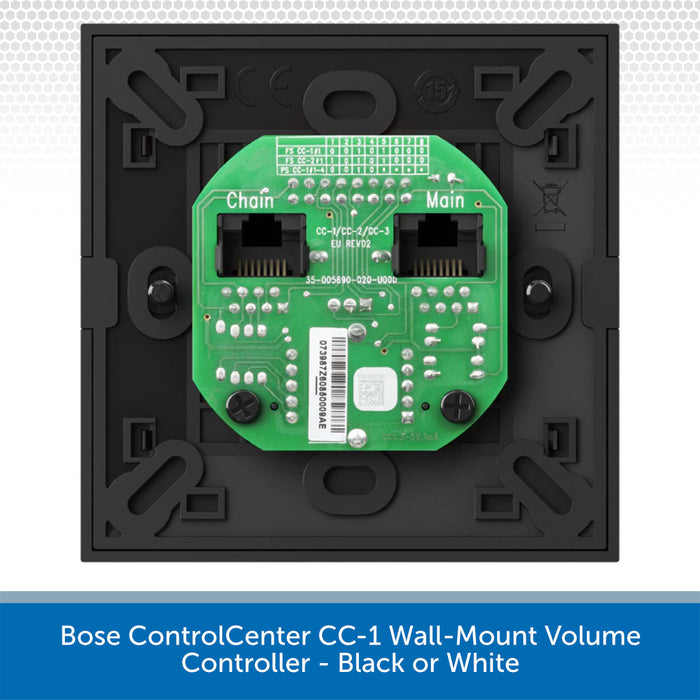

Connectors: (2) RJ-45, TIA/EIA 568B wiring standard
-
Cable Requirements: Cat 5
-
Maximum Cable Length: 2000 ft (609 m) to FreeSpace or PowerShare amplifiers / 500 ft (152 m) shielded, 100 ft (30 m) unshielded to ControlSpace processors
-
Maximum Controller Quantity: 4 per ControlSpace processor
General:
-
Compatible with: ControlCenter CV41, ControlSpace ESP-880A, FreeSpace IZA 190-HZ, FreeSpace IZA 250-LZ, FreeSpace IZA 2120-HZ, FreeSpace IZA 2120-LZ
Indicators and Controls:
-
Controls, Front Panel: (1) volume knob
Physical:
-
Colours: Black, white
-
Mounting/Rigging Provisions: 1-gang electrical box (North America, Europe, Japan)
-
Product Dimensions (H×W×D): 4.1 in × 1.5 in × 1.4 in (105 mm × 38 mm × 36 mm), North America / 3.4 in × 3.4 in × 1.4 in (86 mm × 86 mm × 36 mm), Europe / 4.3 in × 1.7 in × 1.5 in (110 mm × 42 mm × 38 mm), Japan
