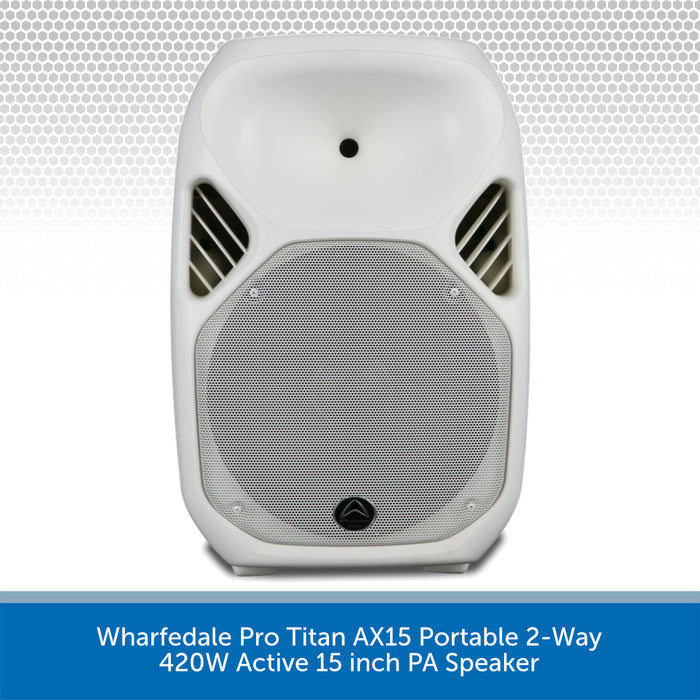

Wharfedale Pro Titan AX15 - Portable 2-Way 420W Active 15 inch PA Speaker

£339.00 (inc. VAT)
SKU TITANAX15BLACK
DETAILS

The Wharfedale Titan AX15 is a portable, lightweight and durable active loudspeaker perfect for use as a main PA speaker, in arrays, or as a monitor.

The 15" powered PA speaker features a Class-D bi-amplified design that delivers 420W RMS / 840W Peak Power and with 129dB Max SPL, is an ideal solution for small to medium-sized venues.

The AX15 features a cutting-edge 6-position DSP engine and all-new HF and LF drivers that provide versatile control that cannot be seen on alternative loudspeakers

Key Features

  • 420 watts programme / 840 watts peak

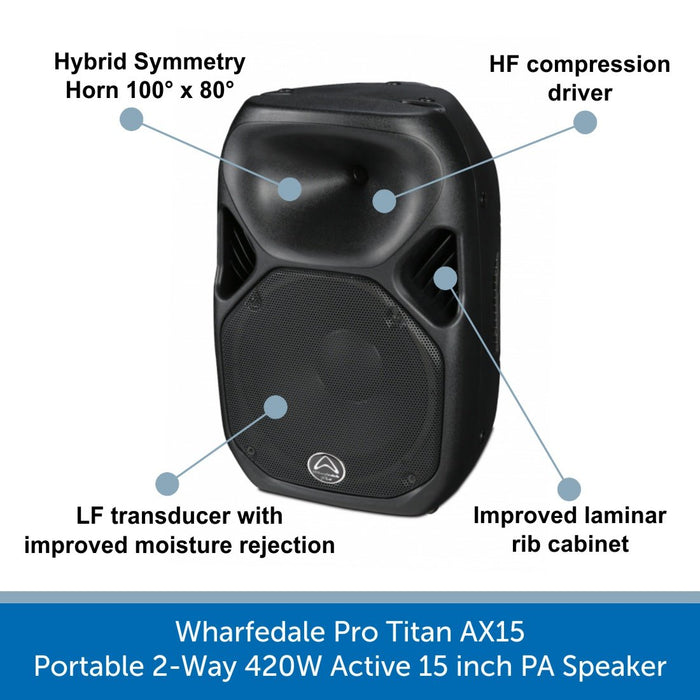

  • New IRIS X HF Drivers have been honed acoustically for high-frequency detail and power
  • New 3" voice coil LF Drivers reject moisture for resistance in all environments
  • New Proprietary 100° x 80° Hybrid Symmetry Horn design
  • New category leading DSP functions
  • 129dB Max SPL
  • Available in black or white
  • New tweaked laminar rib structure
  • Integral mixer functions
  • Class D Bi-amplified
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • Titan Tourbags available



      SPECS & DOWNLOADS

      Wharfedale Titan AX15 Specifications

      • System Type: Active 15'' 2-way, bi-amplified

        Frequency Range: 50Hz - 20kHz (-10dB)

        Frequency Response: 40Hz - 20kHz (+/-3dB)

        Calculated Maximum SPL: 129dB

        LF Transducer:

        • Size: 381mm / 15"
        • Coil Size: 75mm / 3.0"

        HF Transducer:

        • Type: Compression driver
        • Coil Size: 1.75'' / 44mm
        • Exit Size: 1'' / 25mm
        • Diaphragm Material: Titanium
        • Nominal Coverage: Hybrid Symmetry Horn, 100° x 80° (H x V)

        Amplifier:

        • LF Wattage: 350 / 700w (Class D)
        • HF Wattage: 70 / 140w (Class D)

        DSP: Advanced user-selectable presets

        • Flat
        • Monitor
        • Speech
        • Bass
        • Punch
        • Live

        Hi-Pass Switch: 90Hz

        Amplifier Protection: Yes

        Thermal Protection: Yes

        Low-Line Voltage Shut Down: 60-percent nominal line voltage

        Driver Protection: Independent LF and HF limiters

        DC Protection: Yes

        Short Protection: Yes

        Clip Limiter: Turns on at approximately 250W output

        Limiter Indicator: Red LED

        Power Indicator: Green LED

        Input Type: Switchable balanced mic or line level (Chan 1)

        Input Connectors:

        • 2 x XLR
        • 2 x 1/4'' jack

        Line Output Connector: Switchable LOOP/MIX balanced female XLR

        Enclosure:

        • Material: Injection-moulded polypropylene
        • Colour: Black
        • Grille: 1.2mm steel

        Hardware:

        • 10 x M8 threaded inserts, including 4 x M8 threaded inserts on bottom in OmniMount 30.0-type footprint
        • 35mm pole receptacle with lock screw
        • 2 x carry-handles (one on each side)

        Power Supply: SMPS

        AC Power: AC100-120V/220-240V, 50/60Hz

        Dimensions: 830mm x 514mm x 489mm / 32.7'' x 20.2'' x 19.3'' (H x W x D)

        Weight: 22.94kg / 50.3lbs

      Wharfedale Titan AX15 - PDF Downloads

      Download the User Manual Here
