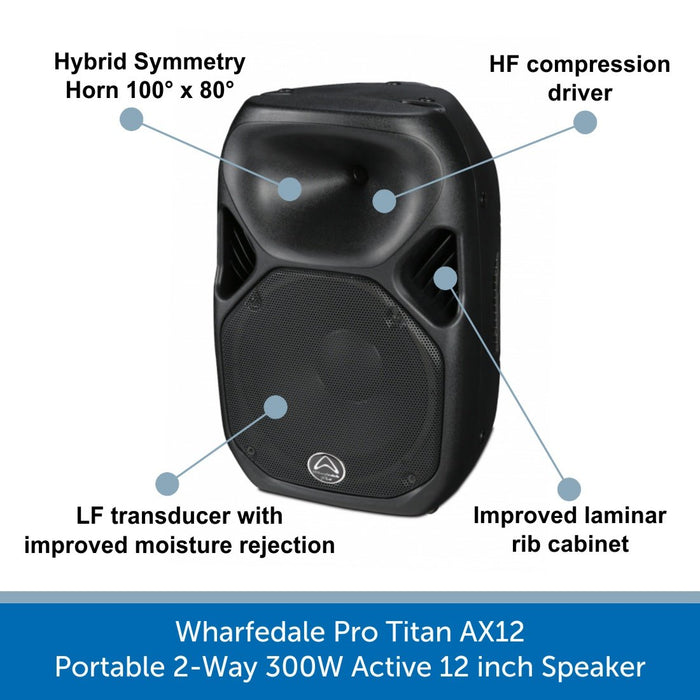

Wharfedale Pro Titan AX12 - Portable 2-Way 300W Active 12 inch PA Speaker

£269.00 (inc. VAT)
SKU TITANAX12BLACK
DETAILS

The Wharfedale Titan AX12 is a portable, lightweight and durable active loudspeaker perfect for use as a main PA speaker, in arrays, or as a monitor.

The 12" powered PA speaker features a Class-D bi-amplified design that delivers 300W RMS / 600W Peak Power and with 128dB Max SPL, is an ideal solution for small to medium-sized venues.

The AX12 features a cutting-edge 6-position DSP engine and all-new HF and LF drivers that provide versatile control that cannot be seen on alternative loudspeakers

Key Features

  • 300 watts programme / 600 watts peak
  • New HF Drivers have been honed acoustically for high-frequency detail and power
  • New 2.5" voice coil LF Drivers reject moisture for resistance in all environments
  • New Proprietary 100° x 80° Hybrid Symmetry Horn design
  • New category leading DSP functions
  • 128dB Max SPL
  • Available in black or white
  • New tweaked laminar rib structure
  • Integral mixer functions
  • Class D Bi-amplified
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • Titan Tourbags available



    SPECS & DOWNLOADS

    Wharfedale Titan AX12 Specifications

    • System Type: Active 12'' 2-way, bi-amplified

      Frequency Range: 50Hz - 20kHz (-10dB)

      Frequency Response: 55Hz - 20kHz (+/-3dB)

      Calculated Maximum SPL: 128dB at 1m

      LF Transducer:

      • Size: 12'' / 305mm
      • Coil Size: 2.5'' / 64.26mm

      HF Transducer:

      • Type: Compression driver
      • Coil Size: 1.75'' / 44mm
      • Exit Size: 1'' / 25mm
      • Diaphragm Material: Titanium
      • Nominal Coverage: Hybrid Symmetry Horn, 100° x 80° (H x V)

      Amplifier:

      • LF Wattage: 250W(RMS)/500W(Peak), Class-D
      • HF Wattage: 50W(RMS)/100W(Peak), Class-D

      DSP: Advanced user-selectable presets

      • Flat
      • Monitor
      • Speech
      • Bass
      • Punch
      • Live

      Hi-Pass Switch: 90Hz

      Amplifier Protection: Yes

      Thermal Protection: Yes

      Low-Line Voltage Shut Down: 60-percent nominal line voltage

      Driver Protection: Independent LF and HF limiters

      DC Protection: Yes

      Short Protection: Yes

      Clip Limiter: Turns on at approximately 250W output

      Limiter Indicator: Red LED

      Power Indicator: Green LED

      Input Type: Switchable balanced mic or line level (Chan 1)

      Input Connectors:

      • 2 x XLR
      • 2 x 1/4'' jack

      Line Output Connector: Switchable LOOP/MIX balanced female XLR

      Enclosure:

      • Material: Injection-moulded polypropylene
      • Colour: Black
      • Grille: 1.2mm steel

      Hardware:

      • 10 x M8 threaded inserts, including 4 x M8 threaded inserts on bottom in OmniMount 30.0-type footprint
      • 35mm pole receptacle with lock screw
      • 2 x carry-handles (one on each side)

      Power Supply: SMPS

      AC Power: AC100-120V/220-240V, 50/60Hz

      Dimensions: 582.7mm x 384.6mm x 318.6mm / 22.9'' x 15.1'' x 12.5'' (H x W x D)

      Weight: 12.4kg / 27.28lbs

    Wharfedale Titan AX12 - PDF Downloads

    Download the User Manual Here
