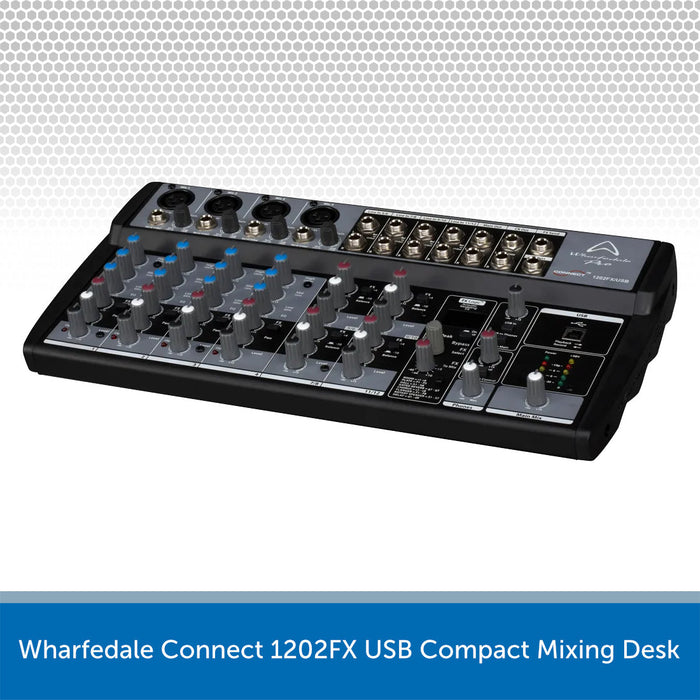

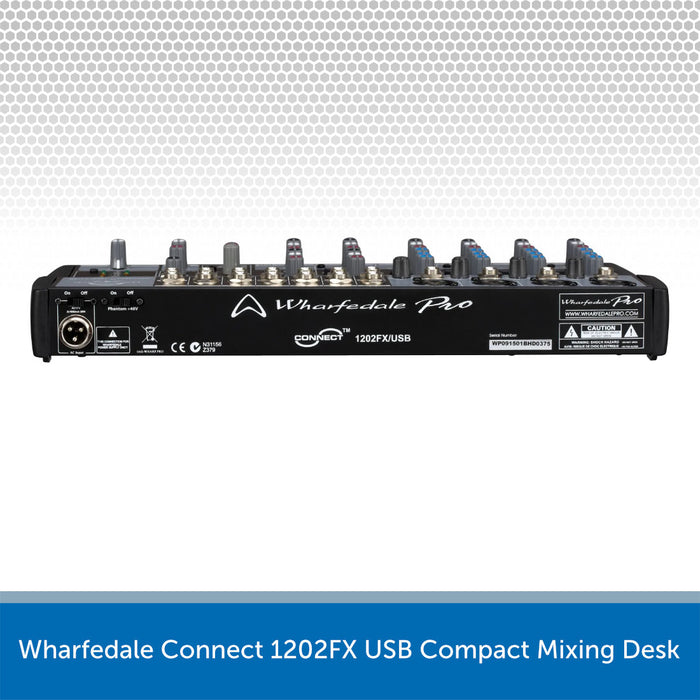

Wharfedale Pro Connect 1202FX Compact USB Mixing Desk With Effects

Original price £134.99 (inc. VAT) - Original price £134.99 (inc. VAT)
Original price £134.99 (inc. VAT)
£134.99 (inc. VAT)
£134.99 (inc. VAT) - £134.99 (inc. VAT)
Current price £134.99 (inc. VAT)

The Wharfedale Pro Connect 1202FX/USB is the mixing desk for small-scale live performances and discreet sound installations where there simply isn’t space for a full-scale mixer.

While packing a wealth of features for mixing and recording it does so with a small footprint. The use of rotary controls as opposed to larger linear faders means space is saved to fit the mixer into small spaces even including guitar gig bags, yet the textured rotary pots operate with a suitable resistance so EQ and level controls can be pin-pointed with accuracy.

Small Size, Studio Sound

The Connect 1002FX/USB features four studio grade XLR / Jack inputs with phantom power and four additional stereo channels. This makes the mixing desk suitable for performers needing up to 10 inputs including bands. There is also a headphone output for studio style monitoring.

56 Digital FX

The FX logic bit DSP offers a total of 56 effects. These include a variety of delays, reverbs, chorus, and rotary speaker algorithms, achieving a professional touch on your mix and lending itself to more creative sound engineering styles. Individual FX send controls on each channel mean your chosen FX can be applied with accuracy.

Wharfedale Pro Affordability and Quality

As with all Wharfedale pro products, the Connect Series are competitively priced yet maintain the essentials of a high quality mixing desk. High headroom, low noise operation ensures a professional sound and integration with any sound system.

Wharfedale Pro Connect 1202FX Key Features:

  • 16 Total inputs (4 x XLR / 6.3mm Jack, 4x twin 6.3mm jack)
  • 4 x 6.3mm jack outputs (master, control room)
  • Studio grade phantom power XLR
  • 16 bit / 48kHz built in USB audio interface
  • Playback and record via USB audio interface
  • 80Hz HPF on first 4 channels
  • Headphone output
  • Pan / Balance control
  • Clip LED display
  • Ideal for home studio recording and live use
  • slimline profile for portability and to fit in gig bags
  • FX Send
  • 56FX Logic effects built-in with independent send

Wharfedale Connect 1202FX Specifications

  • Channels: 12
  • Inputs: 4 x XLR, 12 x 6.3mm Jack
  • Outputs: 4 x 6.3mm Jack
  • Headphone Output: 6.3mm Jack
  • EQ: 3-Band
  • FX: 56 FX Logic Acoustic Modelling FX: Room, Plate, Hall and Gated Reverb, Chorus, Flanger, Rotary speaker, Delay
  • Phantom Power: Yes
  • USB: 16-bit / 48kHz
  • Signal To Noise Ratio: >78dB ±5dB @ Max Gain
  • Frequency Response: 20Hz-20kHz ±1dB
  • Display Dual: 4-Segment LED, FX Setting Display
  • Dimensions (H x W x D): 360.2mm x 183.8mm x 52.8mm
  • Weight: 1.69kg / 3.3lbs

Wharfedale Connect 1202FX - PDF Downloads

Download the User Manual HERE
