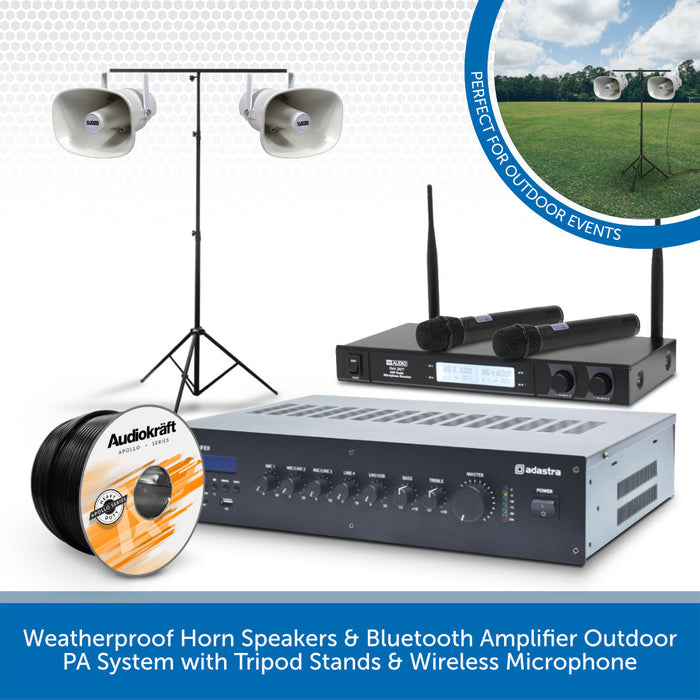

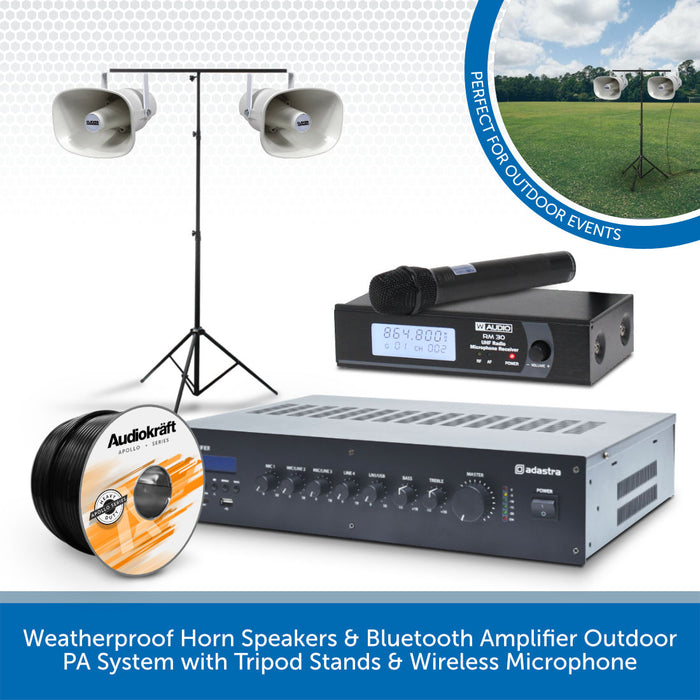

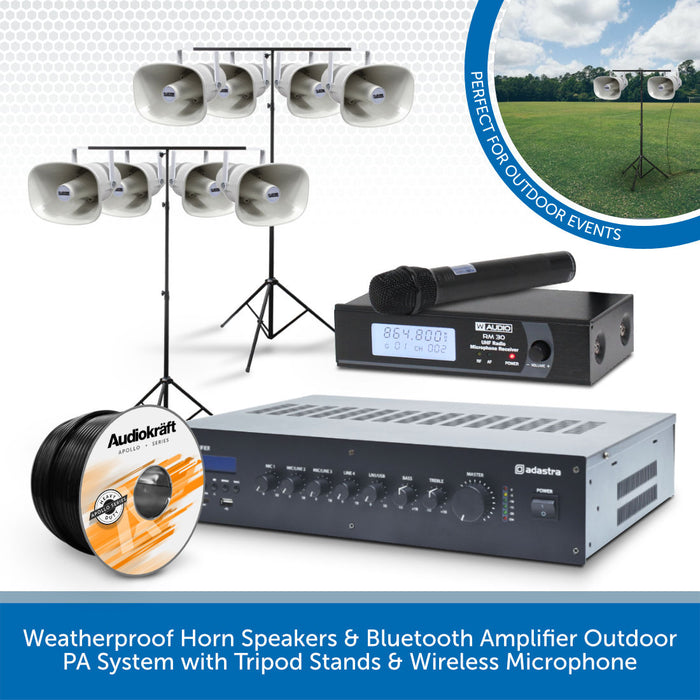

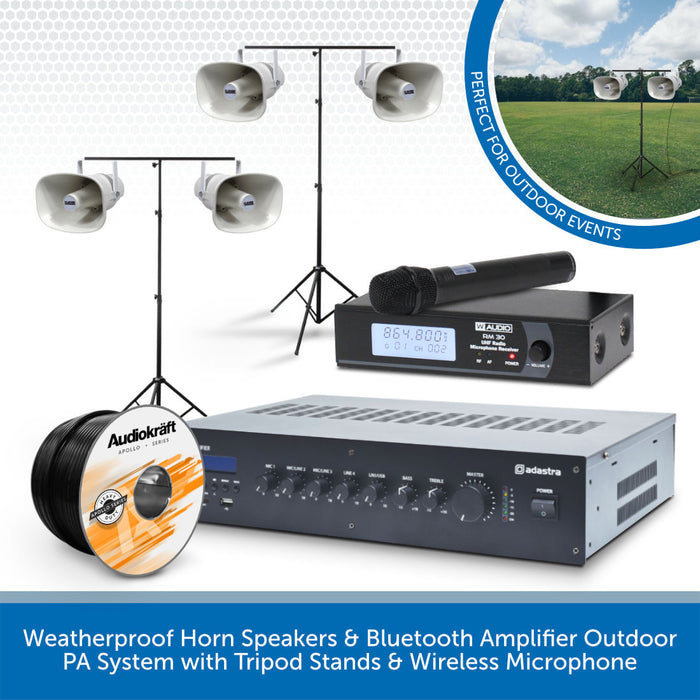

Weatherproof Horn Speakers & Bluetooth Amplifier Outdoor PA System with Tripod Stands & Wireless Microphone
DETAILS

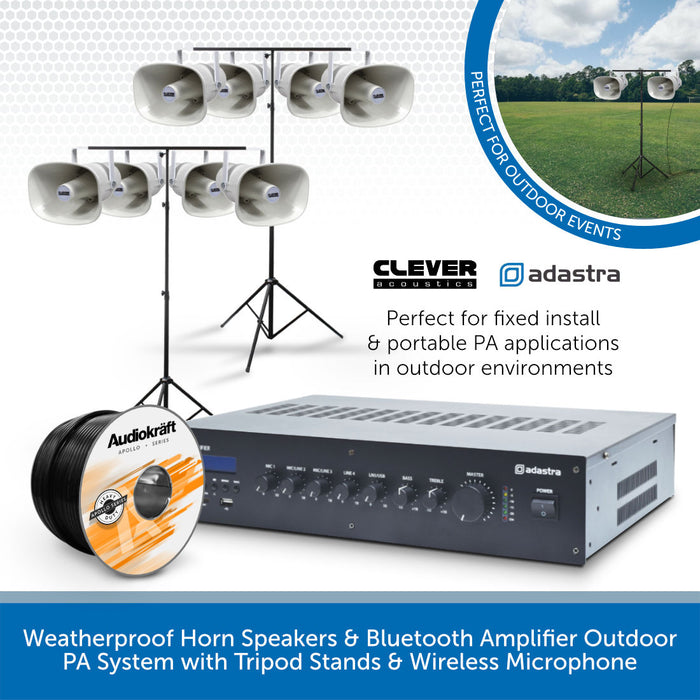

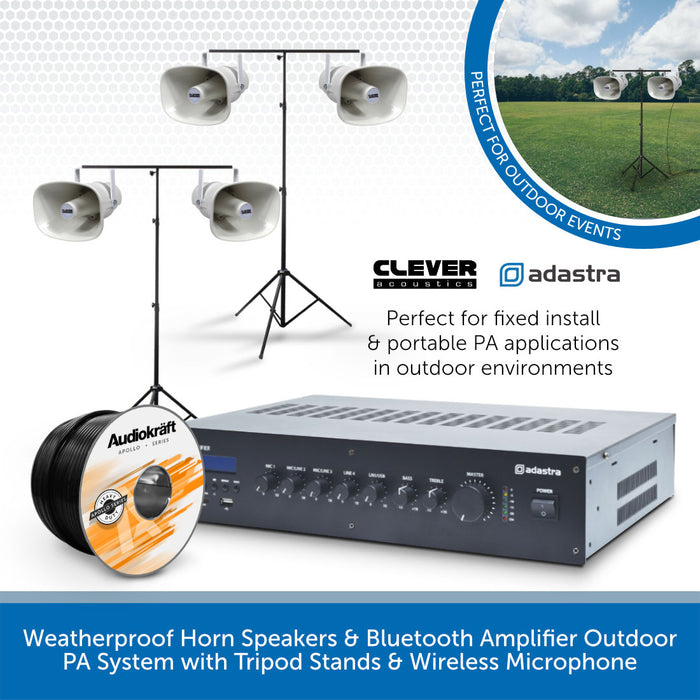

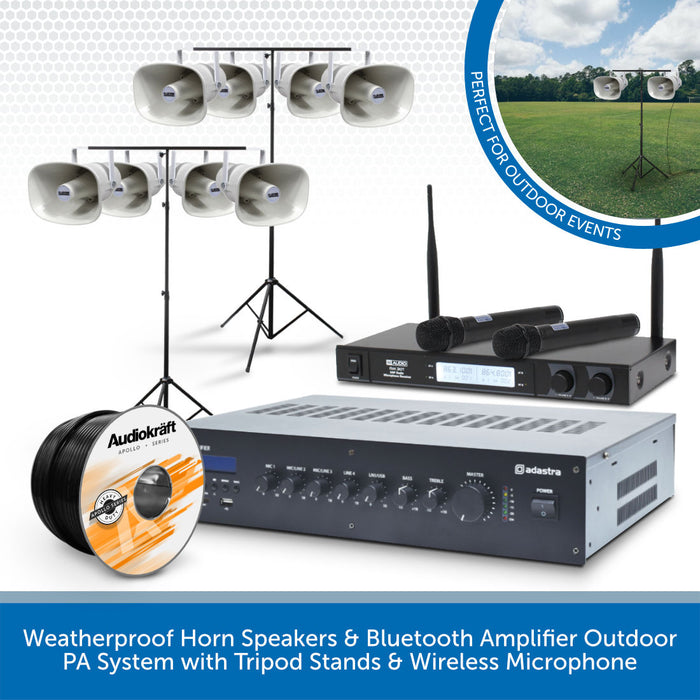

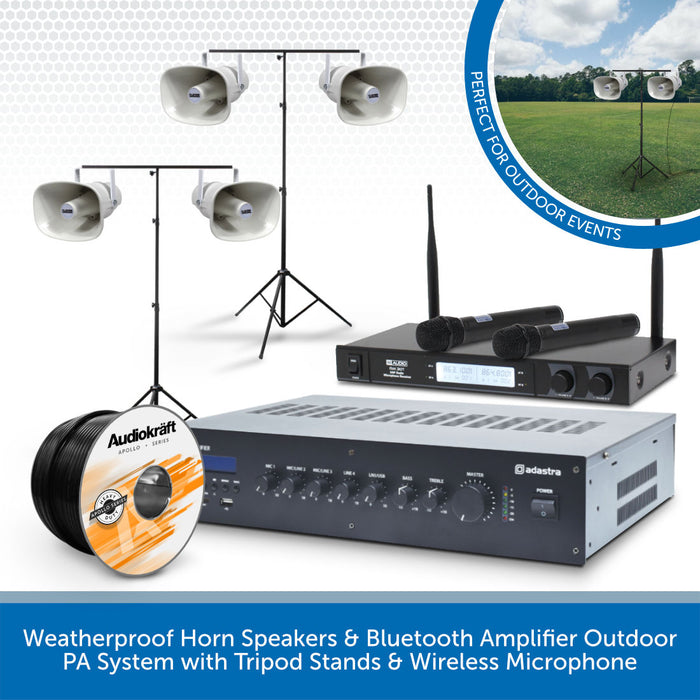

An Outdoor PA Speaker System supplied with 2, 4 or 8 x 15W weatherproof horn speakers and adjustable tripod stands perfect for public address & music playback.
Our outdoor horn PA system comes complete with the Adastra RM120 120W Bluetooth & USB Mixer Amplifier, 2 x Adjustable Tripod Stands and up to 150m of AudioKraft Apollo Heavy-Duty Outdoor Speaker Cable.
This complete PA speaker system is ideal for both fixed and portable PA applications in outdoor environments such as equestrian centres, dog shows, sports and football grounds, etc.
The supplied 120W 100V mixer amplifier features a built-in media player with Bluetooth, USB/SD card reader & an FM tuner as well as a microphone input with a priority switch great for 'voice-over-music' applications.
In addition to this, the amplifier can be powered via a 24Vdc battery ideal for remote locations where 240V mains is not accessible.
What's Included?
- 1 x Adastra RM120 120W Bluetooth Mixer Amplifier
- 2, 4 or 8 x Clever Acoustics HS 715 15W Weatherproof Horn Speakers
- Optional Single or Dual Wireless Mic System
- 2 x Heavy-Duty Adjustable T-Bar Speaker Stands (2.5m max. height)
- Up to 150m Drum AudioKraft Apollo Premium Outdoor Speaker Cable
- Spring Clip Cable Connectors (1 per speaker)

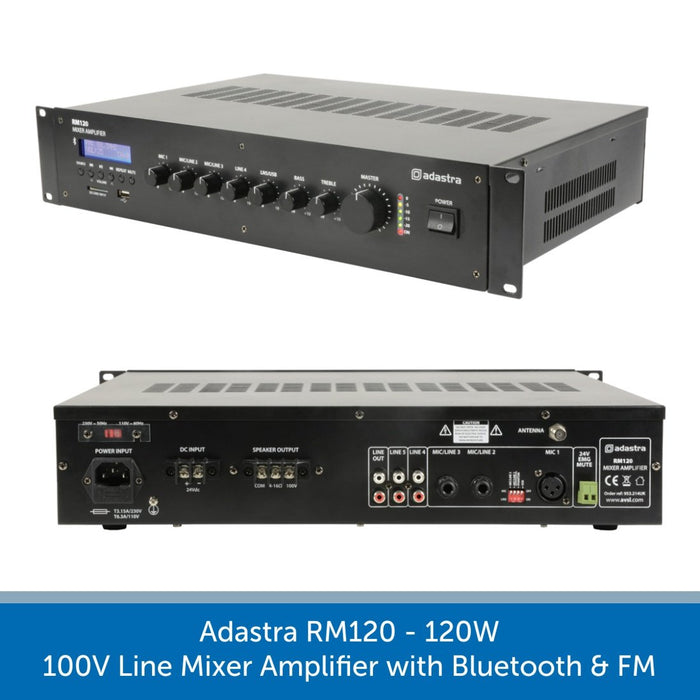

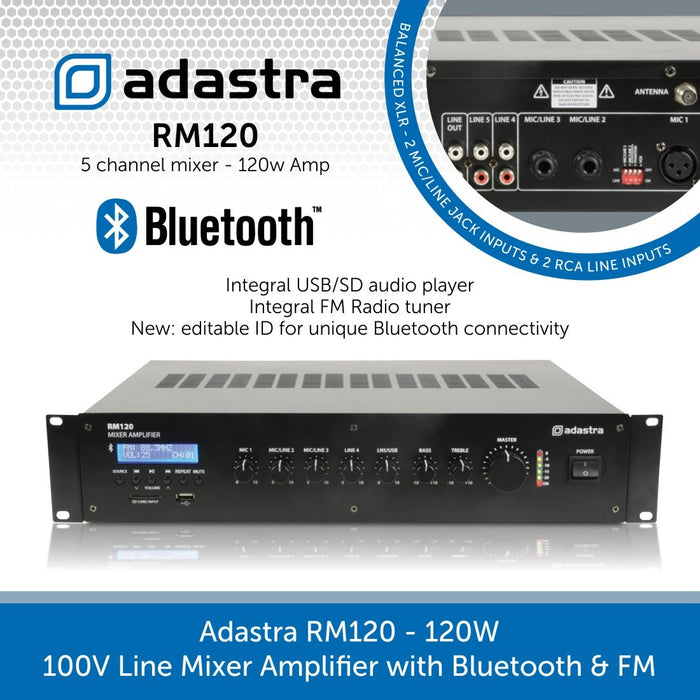

Adastra RM120 120W 100V Mixer Amplifier Key Features
The new updated RM120 amplifier by Adastra is a 5 channel mixer amp designed for commercial installations where reliability is needed.
Unlike most commercial amplifiers the RM120 has the ability to run 240 volts (mains plugged in) or 24 Volts which is especially useful for outdoor events where no power is available.
At just 2U high the RM120 can be left free-standing or fixed into a rack-mount cabinet/case.
In terms of connectivity, the Adastra RM120 has multiple line-level & microphone inputs as well as a built-in media player with Bluetooth, USB/SD card reader & an FM radio tuner.
Microphone input 1 has a priority override over the other inputs great for 'voice-over-music' applications.

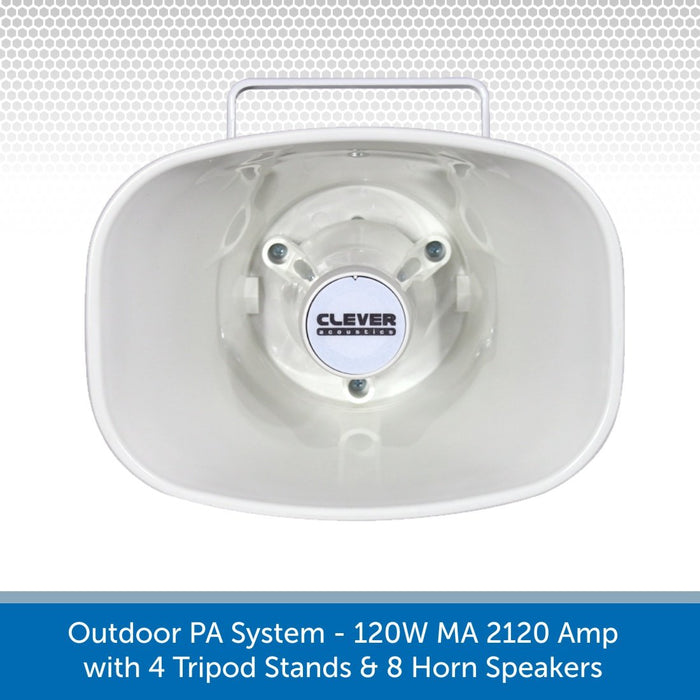

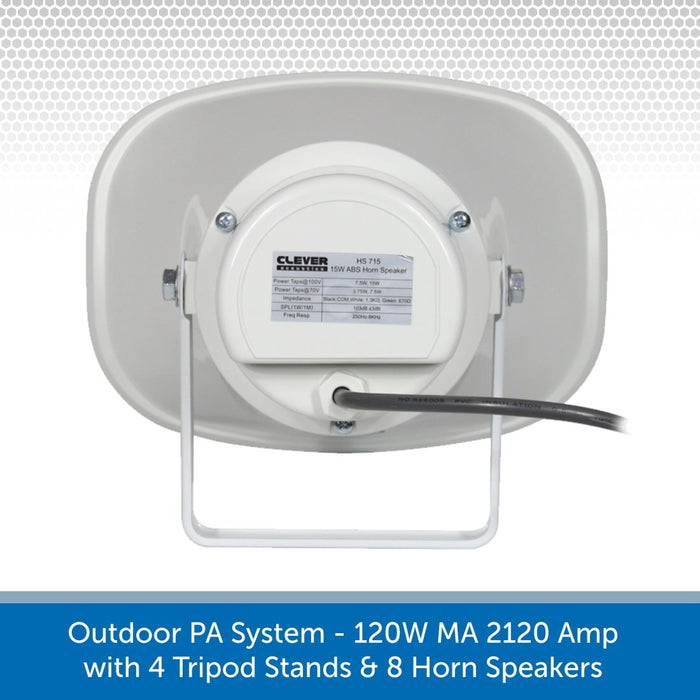

Clever Acoustics HS 715 Horn Speakers Key Features
The Clever Acoustics HS 715 weather-resistant horn speaker is suitable for outdoor paging and voice installations in large open spaces such as sports venues, car parks and warehouses etc.
This IP66 rated 100V horn speaker features solid ABS construction to protect it from the outdoor elements meaning it can be used all-year-round.
The Clever Acoustics HS 715 operates on 100V Line with multiple power tappings of 7.5W, 15W.

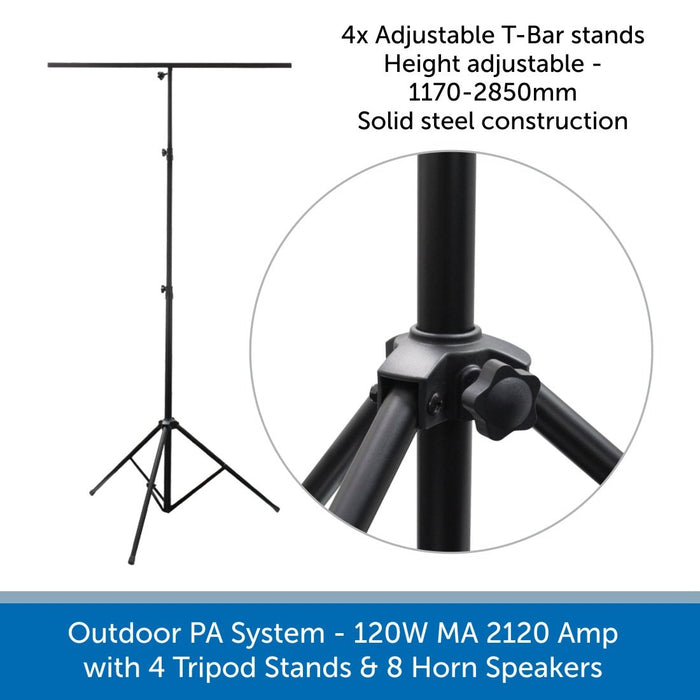

T-Bar Tripod Stands Key Features
This solid steel, height-adjustable T-bar stand is a great way to elevate your lighting equipment or PA speakers.
The Equinox compact T-bar stand comes with wing nut fixings, T-bar and has tripod legs for stability whilst folding down to a compact and portable size.
Whilst mainly designed for lighting, this T-Bar stand can also be used to mount horn speakers perfect for outdoor PA applications.
SPECS & DOWNLOADS
Adastra RM120 Mixer Amplifier Specifications
-
Mains power: 110/240Vac, 50/60Hz (IEC)
- DC power: 24Vdc (screw terminals)
- Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced): -53dBV
- Input impedance : mic: 1 5k Ohms
- Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
- Input impedance : inputs: 2-5 1k Ohms
- Line output: RCA
- Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equalizer : bass: 100Hz ±10dB
- Equalizer : treble: 10kHz ±10dB
- Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 input)
- Audio source: USB/SD player, FM tuner and Bluetooth receiver
- Emergency control: 24V contacts - mute all except Mic.1 when triggered
- Bluetooth version: 2.0
- THD: <1.0%
- Power : output: 120Wrms
- Speaker : outputs: 100V / 8 Ohms / COM terminals
- Weight: 8.36kg
- Dimensions: 433 x 320 x 89mm
Clever Acoustics HS 715 Specifications
- Input: 100V, 70V
- Power taps @ 100V: 7.5W, 15W
- Power taps @ 70V: 3.75W, 7.5W
- Impedance: 1.3K?, 670?
- Sensitivity (1W/1m): 103dB (±3dB)
- Maximum SPL (Rated W/1m): 115dB
- Frequency response: 250Hz-8kHz
- Connections: Flying leads
- Dimensions: 165 x 221 x 235mm
- Weight: 1.6kg
- IP rating: IP66
Tripod Stand Specifications
- Collapsed dimensions: 1090 x 90 x 90mm
- Height: 1170-2850mm
- T-bar length: 1010mm
- Max. load: 30kg
- Maximum footprint: 940mm
- Weight: 3.7kg
Double Insulated Speaker Cable Specifications
- CSA: 2 x 1.15mm²
- Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
- Dimensions: 7.8mmØ
- Current: 15A max.
- Sheath: Black
- Length: 100m
