Warehouse DAB / FM Radio Music System with Wall-Mount or Suspended Pendant Speakers

£549.00 (inc. VAT)
SKU WARE-DAB-BUN1
Speaker Type
Amount of Speakers
Speaker Colour

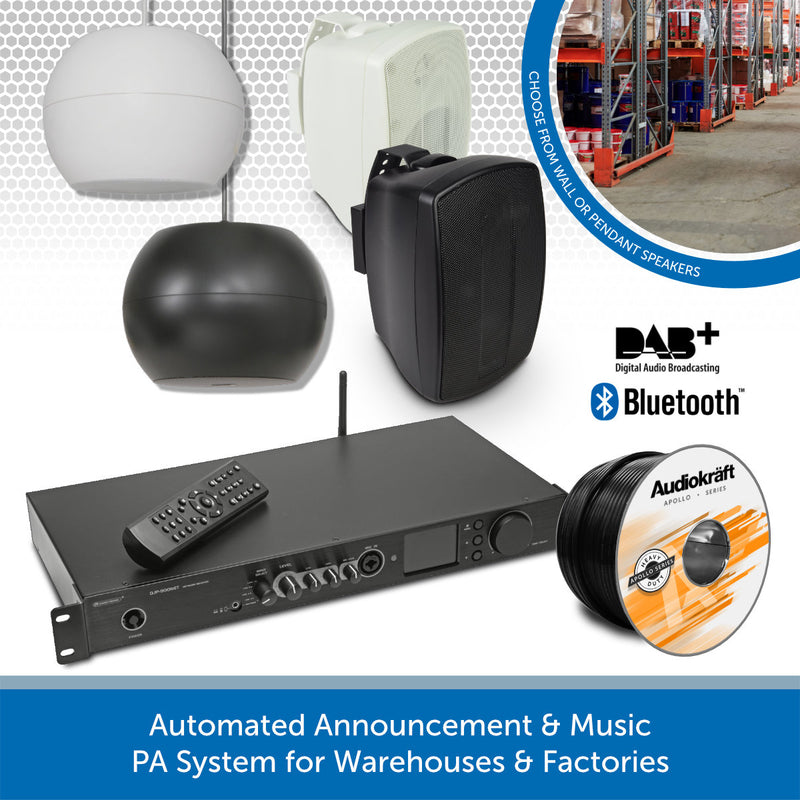

Warehouse speaker & amplifier PA system with DAB radio and a choice of wall-mount or suspended pendant speakers.

Our warehouse PA speaker system comes complete with a 100V 120W Mixer Amplifier and a remote-controlled DAB+/FM Radio Tuner both of which can be installed into a rack-cabinet or left free-standing.

For public address applications, a desktop paging microphone can be connected to this system. Mic input 1 features a priority switch which overrides the rest of the amplifier/music when an announcement is made. Once the mic is switched off the music will kick back in.

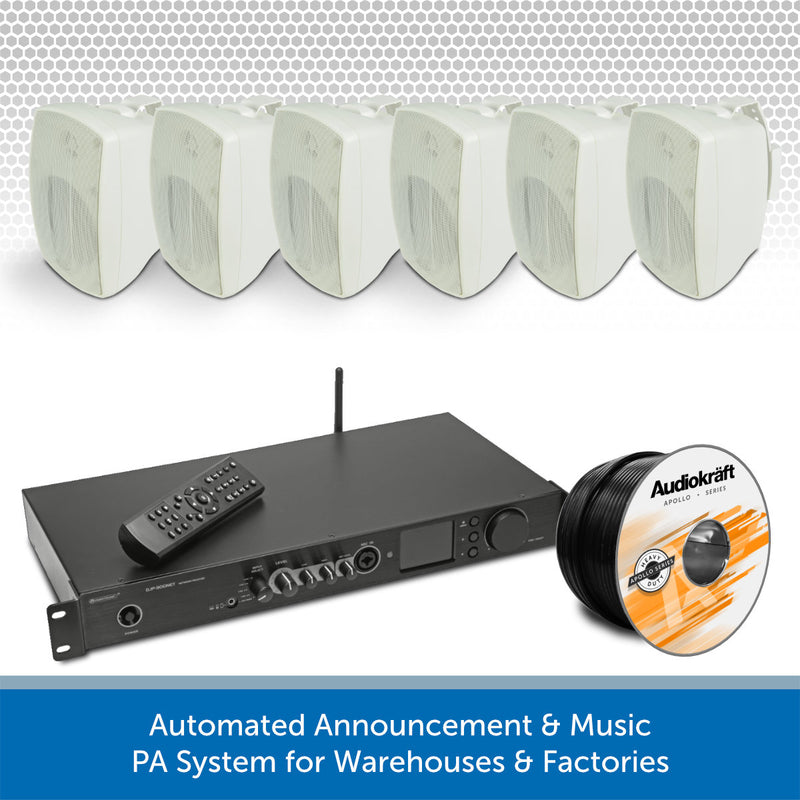

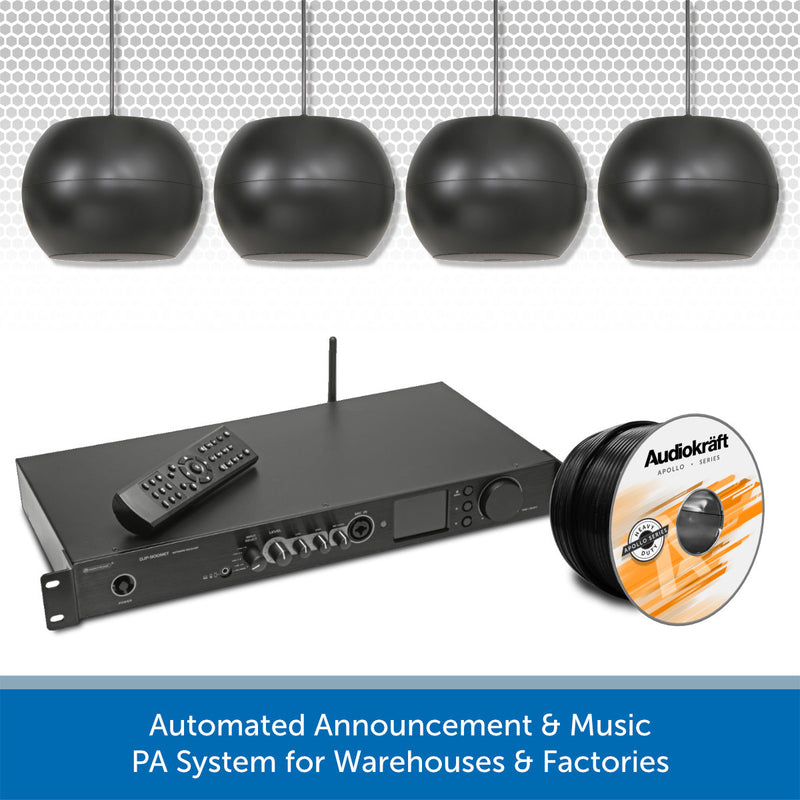

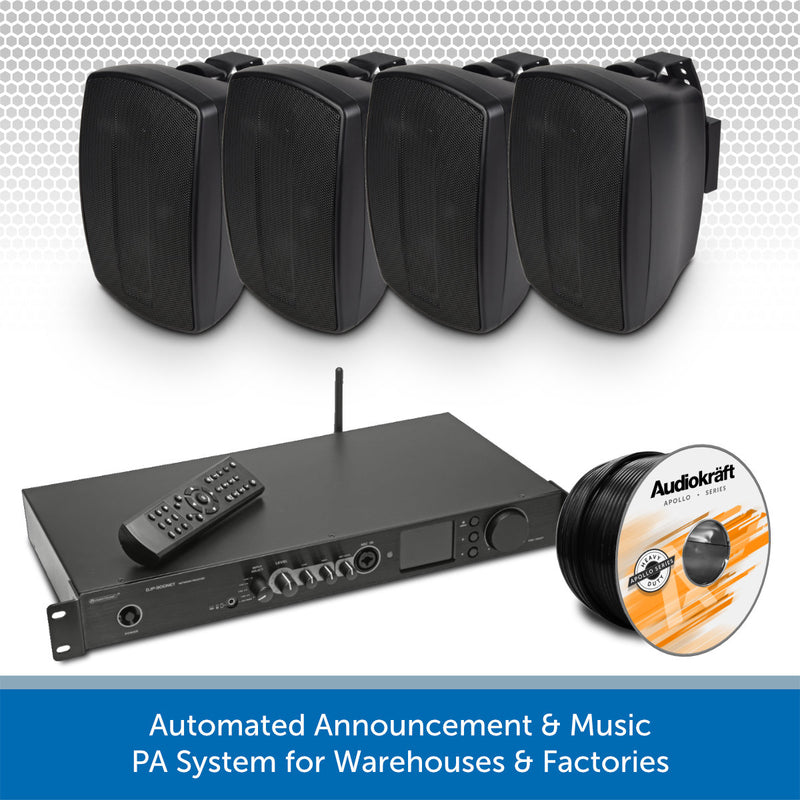

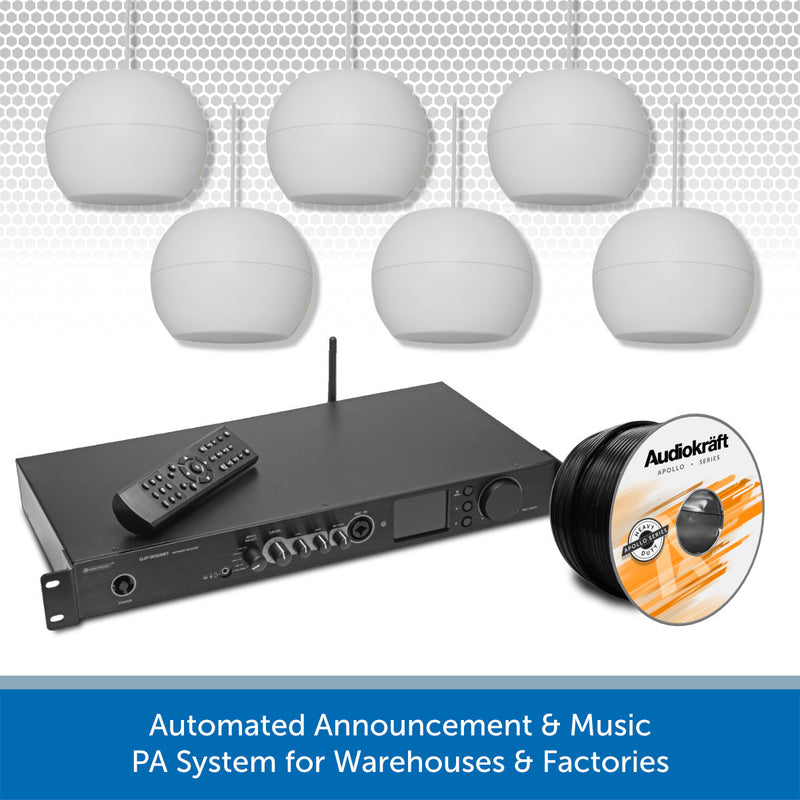

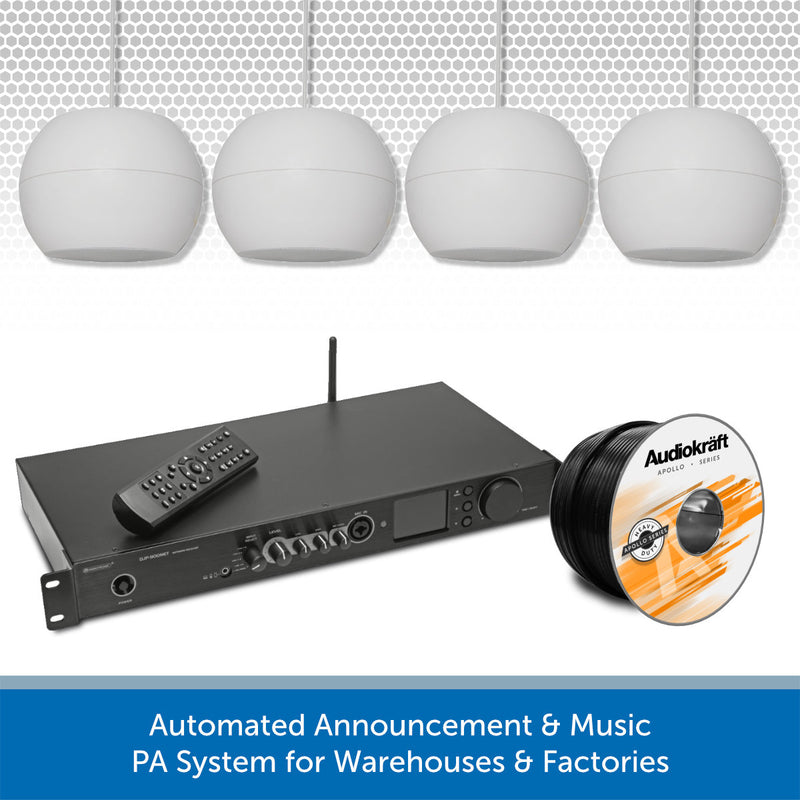

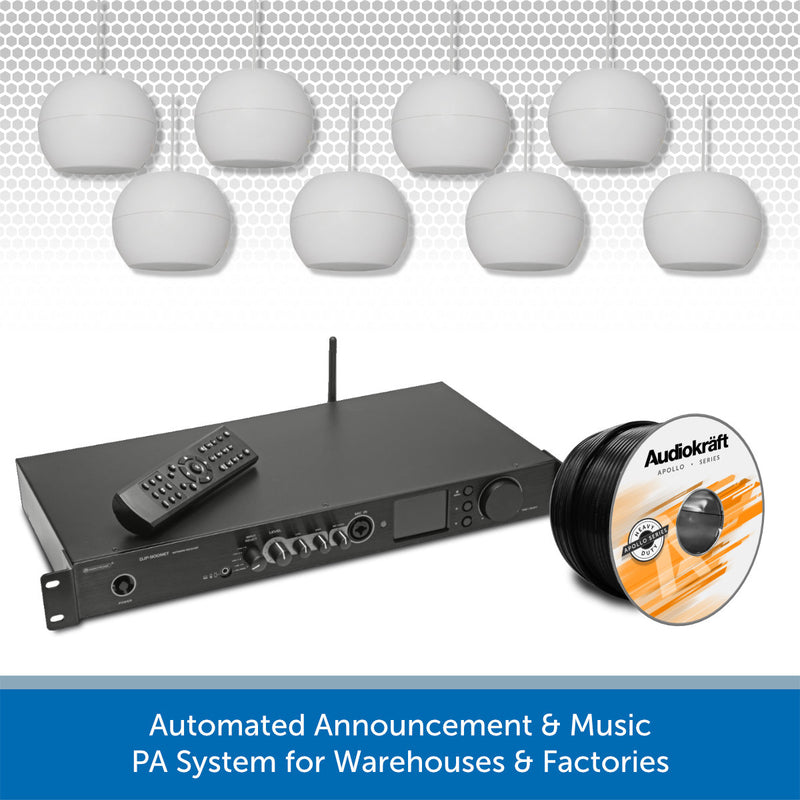

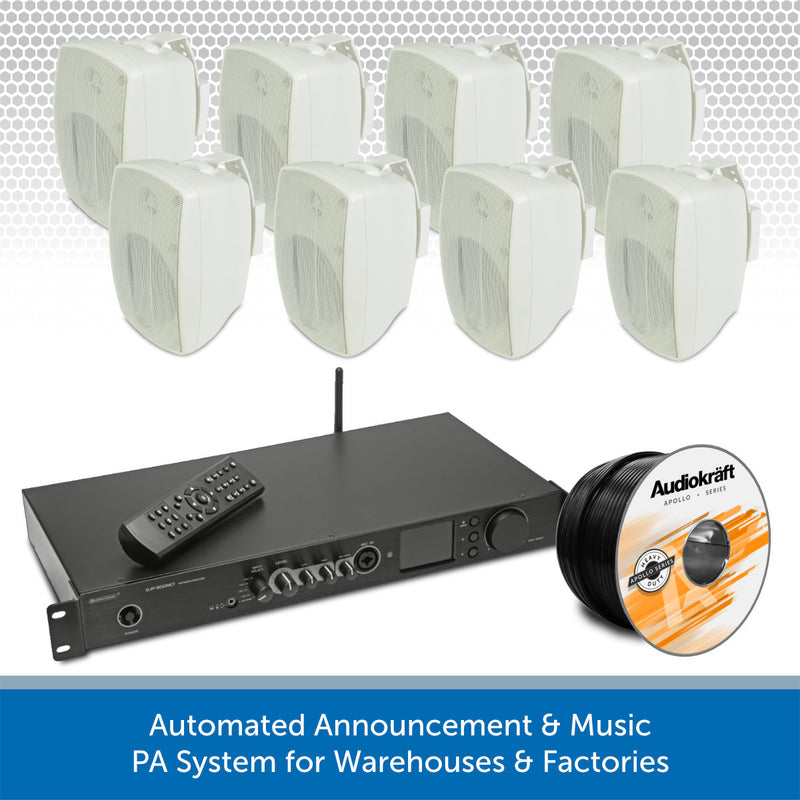

 Choose from 4, 6 or 8 wall-mount or suspended pendant speakers in black or white.

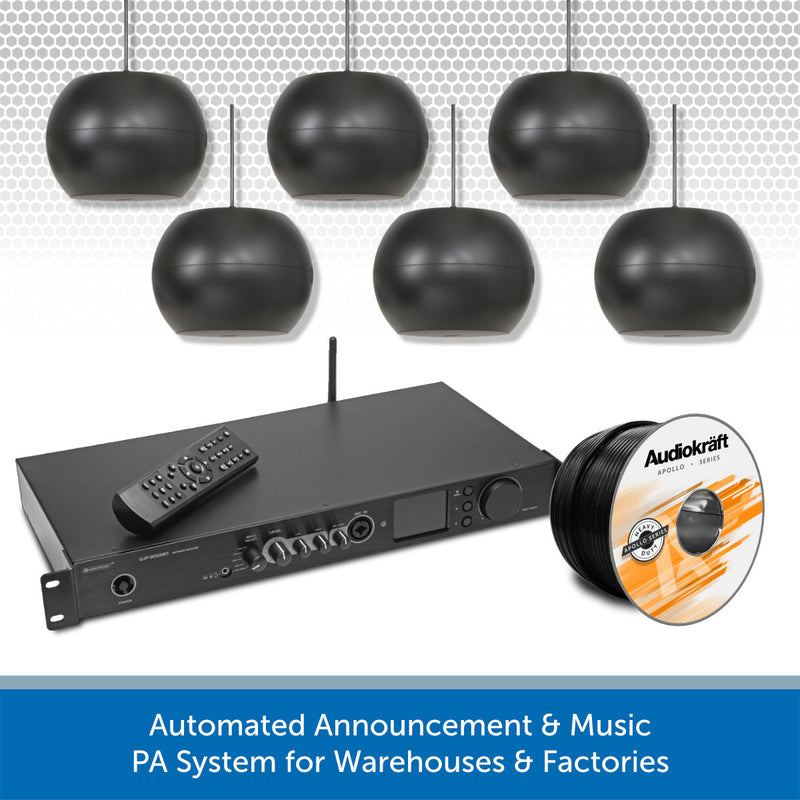

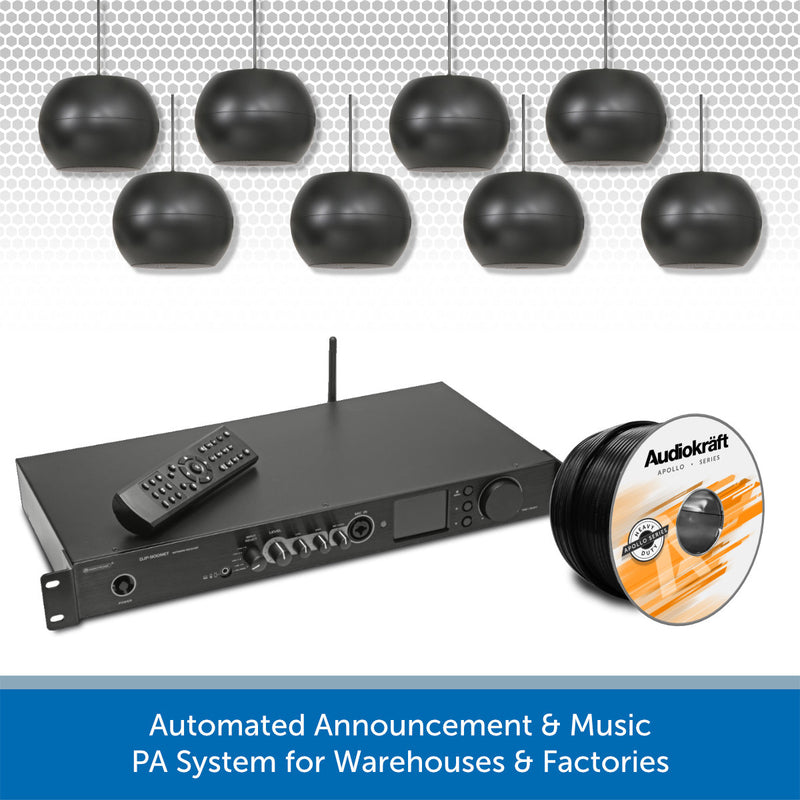

Pendant Speakers are suited to high-bay warehouses as they hang down from the ceiling and provide a wide sound coverage.

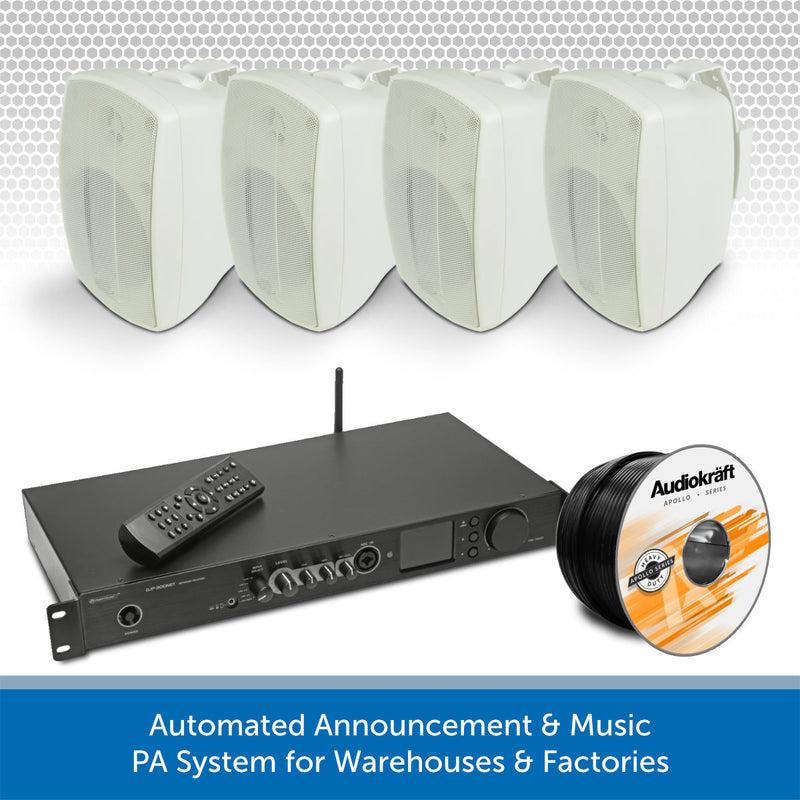

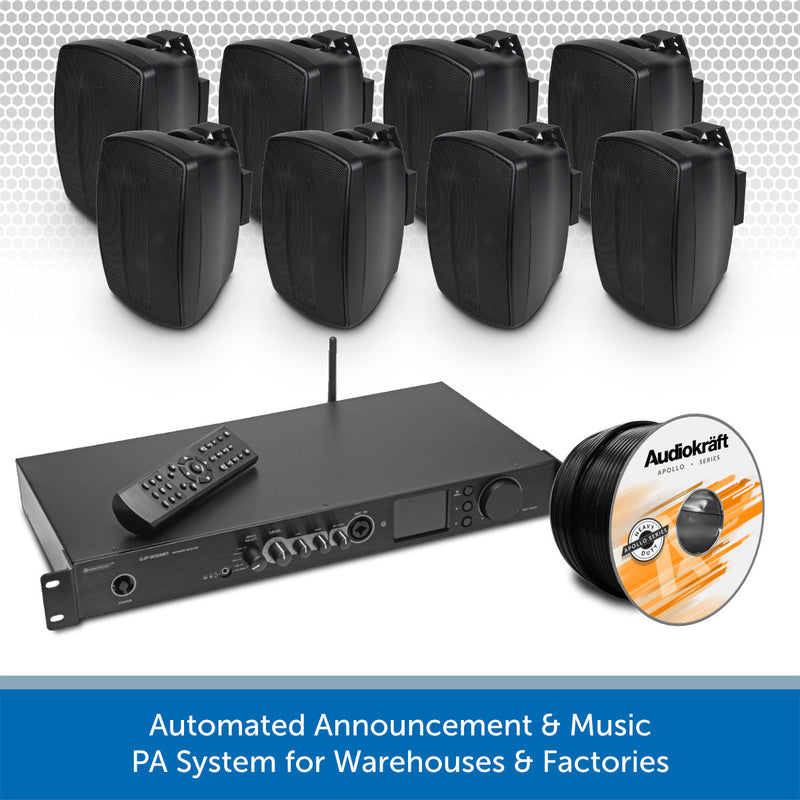

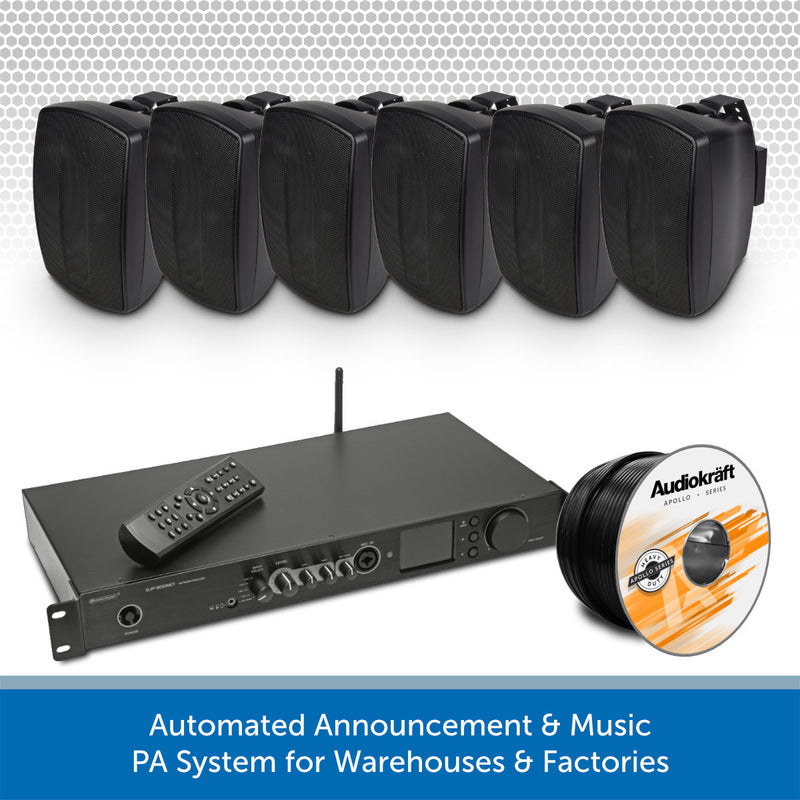

Wall-mount Speakers are designed for installation around the perimeter of a warehouse but can also be fixed to racking and cable trays.

Our warehouse radio speaker system is supplied with a 100m drum of 2-core speaker cable (additional cable available).

What's Included?

  • 1 x 100V 120W Mixer Amplifier with Bluetooth & FM Radio (Adastra RM120)
  • 1 x DAB+ & FM Radio Tuner with Remote Control (TIBO DAB435)
  • 4, 6 or 8 x Wall-Mount (Adastra BH5V) or Suspended Pendant Speakers (Adastra PS50)
  • 1 x RCA to RCA Phono Cable (Connecting DAB tuner to Amp)
  • 1 x 100m Drum 2-Core Speaker Cable (Apollo Cable 100m)

If you require any further assistance regarding our 100V Line range just contact us on 02476 369890 and one of our experts will be happy to help.

See TECHNICAL SPECIFICATION tab for technical specs

SPECIFICATION

100V 120W Mixer Amplifier with Bluetooth

  • Mains power: 110/240Vac, 50/60Hz (IEC)

  • DC power: 24Vdc (screw terminals)
  • Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
  • Input sensitivity : mic 1 (balanced): -53dBV
  • Input impedance : mic: 1 5k Ohms
  • Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
  • Input impedance : inputs: 2-5 1k Ohms
  • Line output: RCA
  • Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equalizer : bass: 100Hz ±10dB
  • Equalizer : treble: 10kHz ±10dB
  • Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
  • Phantom power: +20V (mic 1 input)
  • Audio source: USB/SD player, FM tuner and Bluetooth receiver
  • Emergency control: 24V contacts - mute all except Mic.1 when triggered
  • Bluetooth version: 2.0
  • THD: <1.0%
  • Power : output: 120Wrms
  • Speaker : outputs: 100V / 8 Ohms / COM terminals
  • Weight: 8.36kg
  • Dimensions: 433 x 320 x 89mm

DAB+/FM Radio Tuner

  • Connections: Line Out
  • Frequency Range: 20Hz-20KHz
  • Supplied accessories: Quick Start Guide, Remote Control, UK and EU Plugs
  • W x H x D (mm): 430 x 60 x 230
  • Weight (kg): 3.3 (with all accessories)

100V Wall-Mount Speakers

  • Dispersion angle: 120°
  • IP rating: IP44
  • Colour: White/Black
  • LF driver: 135mmØ (5.25")
  • HF driver: 13mmØ (0.5")
  • Power handling : max: 100W
  • Power handling : rms: 50W
  • Sensitivity: 89dB
  • Frequency response: 80Hz - 20kHz
  • Tappings: 30W, 20W, 10W, 5W + 16 Ohms
  • Dimensions: 255 x 163 x 160mm
  • Weight: 2.45kg

100V Suspended Pendant Speakers

  • Colour: White (Black available on request)
  • Speaker size:125mm (5")
  • Dispersion angle:140°
  • Rated power at 8 Ohms:20W
  • Frequency response: 50Hz - 20kHz
  • Impedance: 100V500, 1k, 2k, 4k Ohms
  • Tappings:20W, 10W, 5W,2.5W + 8 Ohms
  • Sensitivity:89dB
  • Dimensions:180 x 245mmØ
  • Weight: 2.366kg

Apollo Series Speaker Cable

  • CSA: 2 x 1.15mm²
  • Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
  • Dimensions: 7.8mmØ
  • Current: 15A max.
  • Sheath: Black or White
  • Length: 100m
