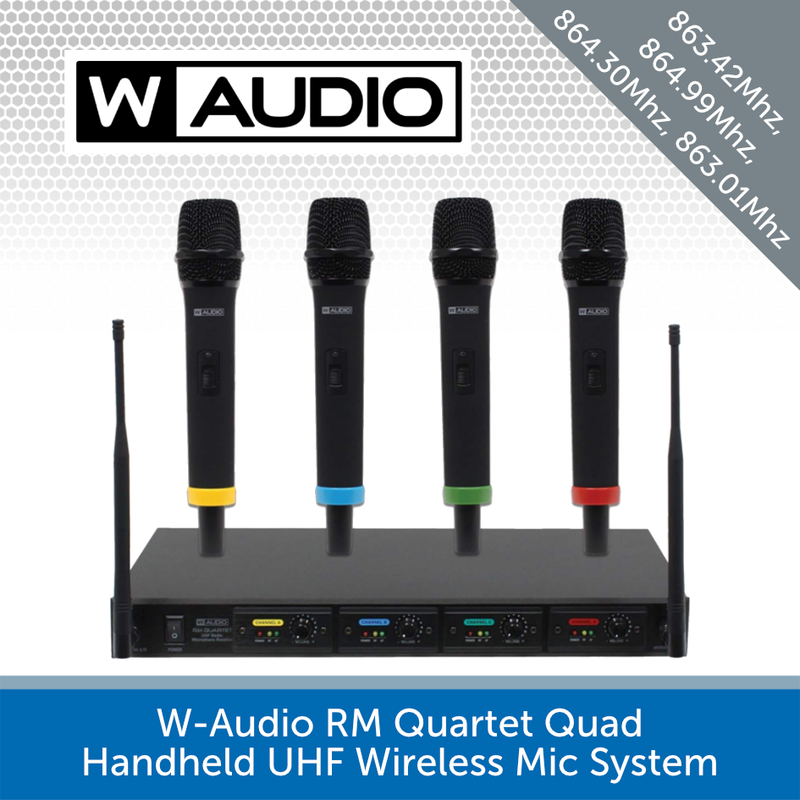

W-Audio RM Quartet Quad Handheld UHF Wireless Mic System - Perfect for Conferences
The RM Quartet Wireless Microphone System is perfect for a large range of applications, including public address and conferences - very popular with schools stage performances.
The W-Audio RM Quartet is perfect for a whole range of live speaking events, where up to four participants will be active at the same time.
Popular applications for the RM Quartet are school plays and other shows, places of worship (prayer readings), and stage shows, such as a comedy acts.
The receiver unit itself can accept up to 4 microphones at a time, but can use any amount, even one if the occasion calls for it. They operate at fixed frequencies, at 863.42Mhz / 864.99Mhz / 864.30Mhz / 863.01Mhz. The benefit of using a fixed frequency in this type of system is it will eliminate any chance clashing between the mics.

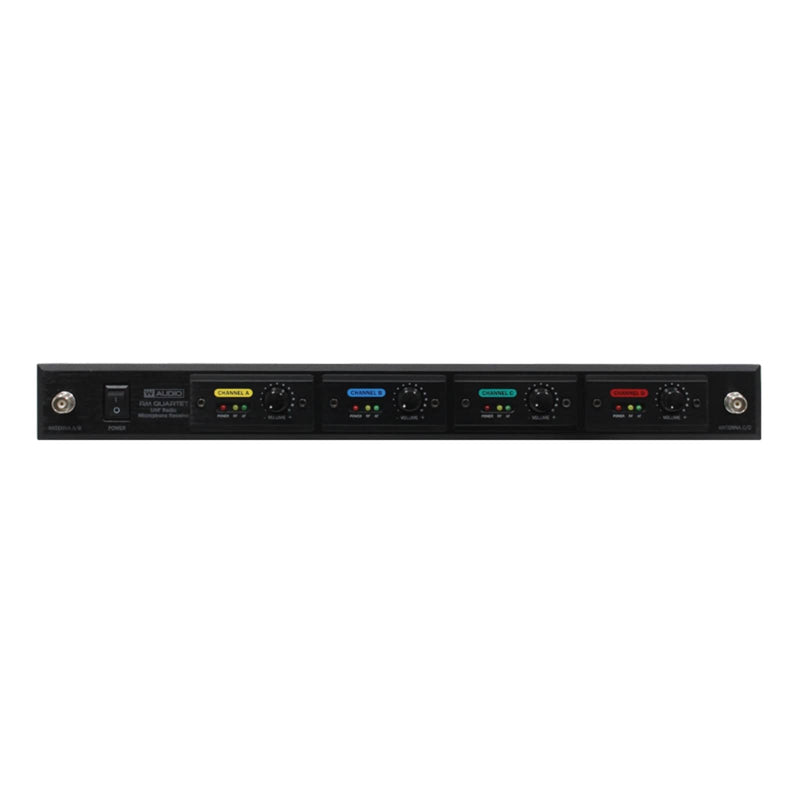

The receiver unit itself is very compact making travel and storage a breeze, and the colour-coded segments make it easy to operate, as they will translate to the colour-coded microphones.
Sound quality is very high on the RM Quartet, as with the other products in the W-Audio catalogue. It provides a crystal-clear audio with little to no colouration, ensuring what is being picked up by the microphone is exactly what is played back.

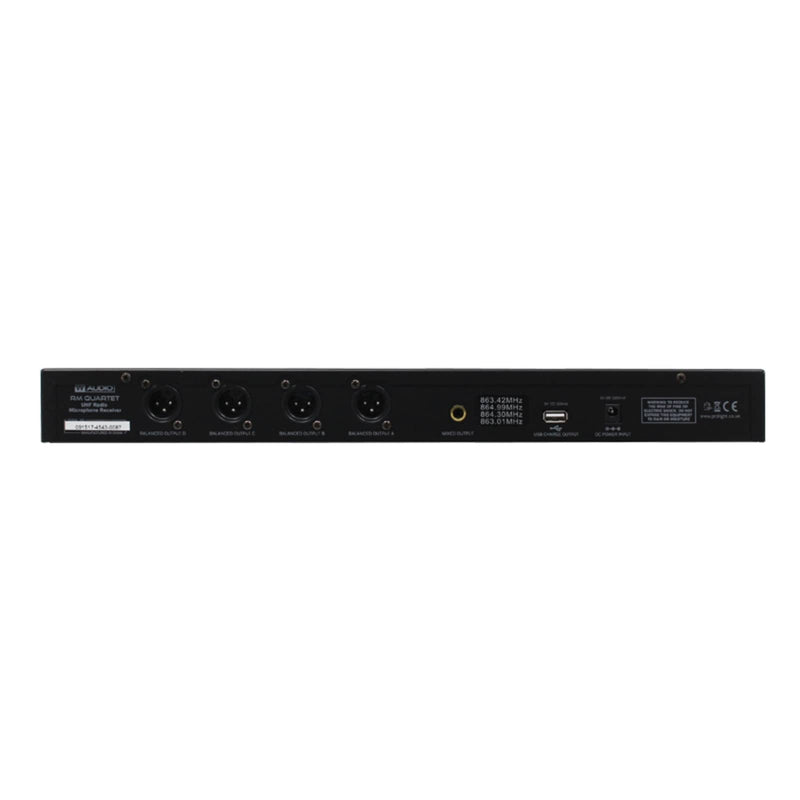

The rear of the receiver features a balanced XLR output for each individual microphone, as well as an unbalanced combined 1/4" jack output. For charging the microphones, there is a USB port & cable also included.
Key features include:
Rack Mount Kit Included
Frequencies fixed at 863.42Mhz / 864.99Mhz / 864.30Mhz / 863.01Mhz

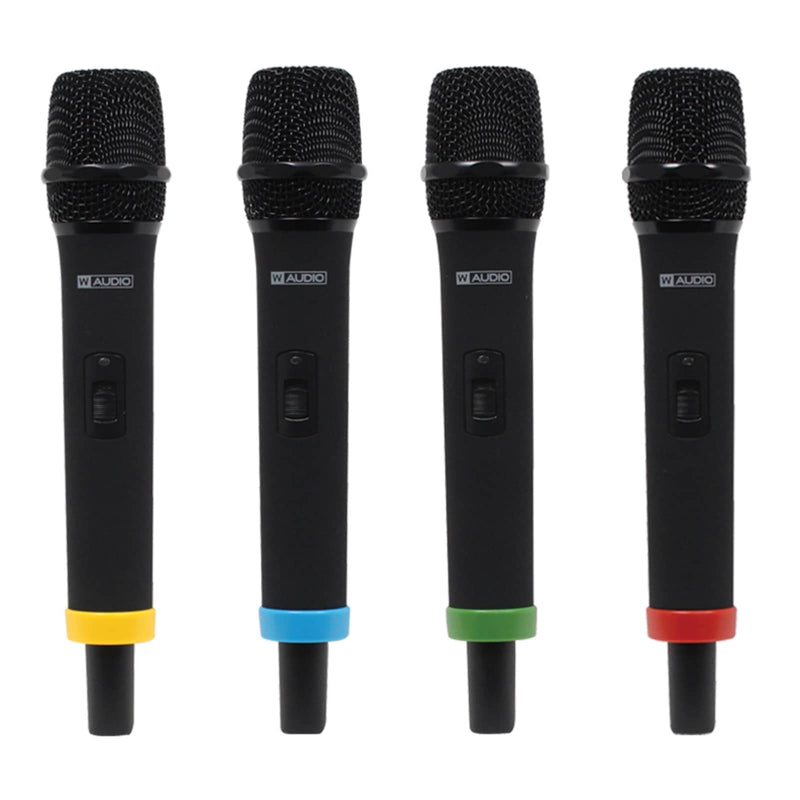

Colour-coded microphones for distinguishability.
1 x unbalanced 6.35mm jack mixed output
Includes 1x Receiver Unit, 4x Handheld microphones, 1/4" jack to jack cable, USB charging cable.
4 x balanced XLR outputs
CH70 license free operation
Balanced XLR output for each channel plus unbalanced mixed output
SPECS & DOWNLOADS
W-Audio RM Quartet Quad Handheld UHF Wireless Mic System Specifications
AF output impedance: 2.2K Ohms
Maximum output level (balanced): 0-400mV
Maximum output level (unbalanced): 0-200mV
Total harmonic distortion: less than 0.5% @1KHz
Frequency response: 40Hz-18KHz
Power supply: DC 12-18V, 500mA (14V, 1.2A adaptor supplied)
Receiver dimensions (H x W x D): 45 x 420 x 220mm
