W-Audio DQM 600H Quad Handheld UHF Wireless Microphone System (606-614Mhz) CH38

by W-Audio
Original price £349.00 (inc. VAT) - Original price £349.00 (inc. VAT)
Original price £349.00 (inc. VAT)
£349.00 (inc. VAT)
£349.00 (inc. VAT) - £349.00 (inc. VAT)
Current price £349.00 (inc. VAT)
SKU MIC81
DETAILS

The W-Audio DQM 600H quad wireless microphone system is designed for a range of live applications where reliability and sound quality is paramount.

DQM series wireless microphones are quad UHF handheld systems designed for the professional user featuring a full-width receiver for the ultimate in RF stability. They have a 8Mhz tuning bandwidth in the 606-614Mhz CH38 band.

These systems offer crystal clear sound reproduction and rock-solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage.

Handheld transmitters feature an ergonomic design with a rackmount housing to stand up to the rigours of the road.

The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit, to customise your solution with a combination of up to four transmitters including handheld, head worn and lavalier.

W Audio DQM 600H Key Features:

  • UHF band, Phase Lock Loop (PLL) offering stable RF transmission
  • Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel
  • OLED display offers a wide viewing angle while remaining bright in darkened conditions
  • Frequency, Channel, RF and AF signal strength meters
  • Combined use jog wheel button operation for fast menu navigation

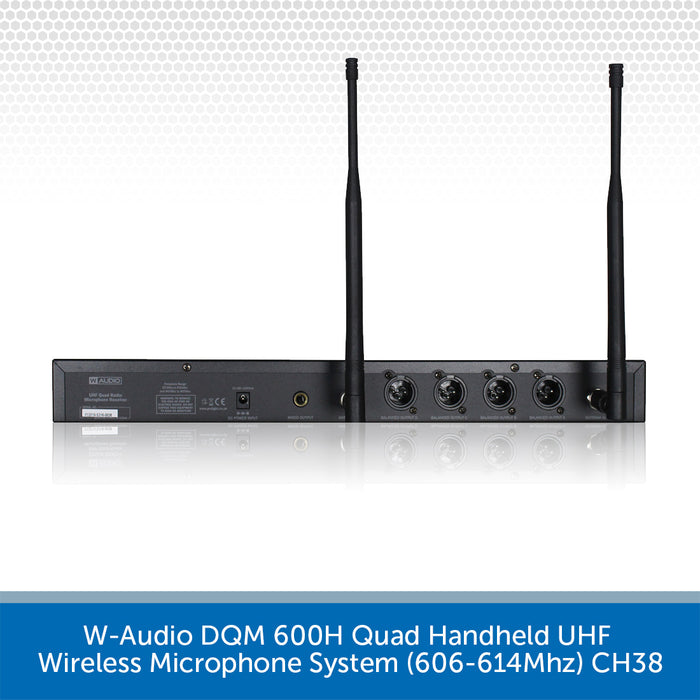

  • 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
  • Integrated antenna splitter for reduced RF interference
  • Balanced XLR output for each channel plus unbalanced mixed output
  • Automatic frequency SCAN function
  • IR infrared frequency synchronisation via infrared interface
  • Mute circuitry for reduced noise
  • Flat frequency response: 50Hz-16KHz
  • Dynamic, cardioid handheld microphone capsule
  • 1U full width rack mount receiver
  • Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
SPECS & DOWNLOADS

Download the PDF User Manual HERE >

W-Audio DQM 600H Specifications

Audio output level: 400mV
Dynamic Range: 96dB
Receiver specifications:

  • Power supply: 14V DC (mains adaptor supplied)
  • Dimensions (H x W x D): 45 x 482 x 260mm
  • Weight: 2.3kg

Handheld Transmitter:

  • Battery configuration: 2 x 1.5V AA (not supplied)
  • Dimensions (H x W x D): 250 x 45 x 45mm
  • Weight: 0.4kg

Included in the system: 1 x receiver, 2 x removable antenna, 2 x antenna extension cables, 4 x handheld transmitters and 1 x 14V 1.2A mains PSU

    }
