Sennheiser XSW 2-ME2 Wireless Lavalier Lapel Microphone System
DETAILS
The Sennheiser XSW 2-ME2 Wireless Lavalier Microphone System is an easy-to-use and fantastic quality all-in-one wireless system, perfect for announcements, PA and live use.
The XSW 2-ME2 lavalier microphone system is a great ideal in situations that require a hands-free approach. It's great for presenters, PA, announcements and worship. The microphone simply clips onto a collar or shirt and provides crystal-clear audio.
The belt pack is lightweight yet durable and is easy to fix to a belt or trousers.

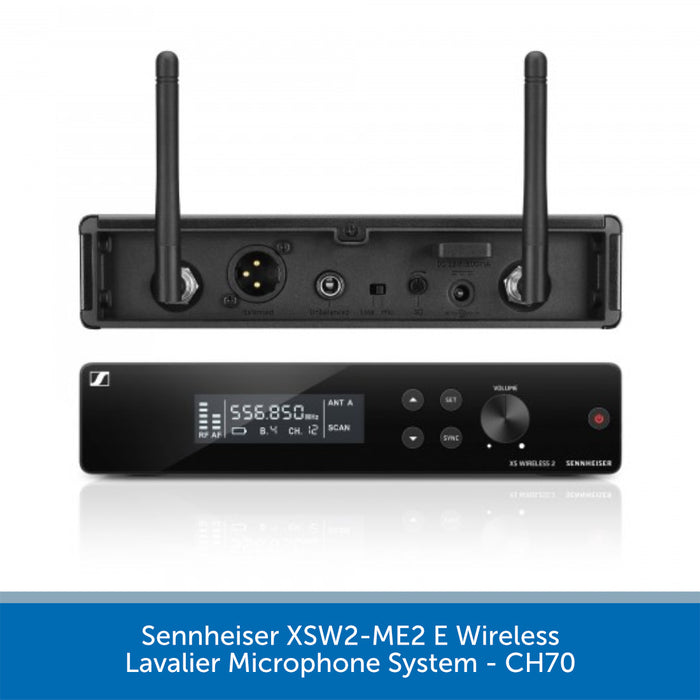

The receiver features an LCD display that shows frequency, channel and signal information, and provides an interface for configuring the settings. Included are 12 compatible channels in a stable UHF band meaning you can connect up to 12 systems simultaneously.
The receiver has two external antennas ensuring a reliable and strong signal at all times and also includes a rackmount kit for the receiver.
Key Features:

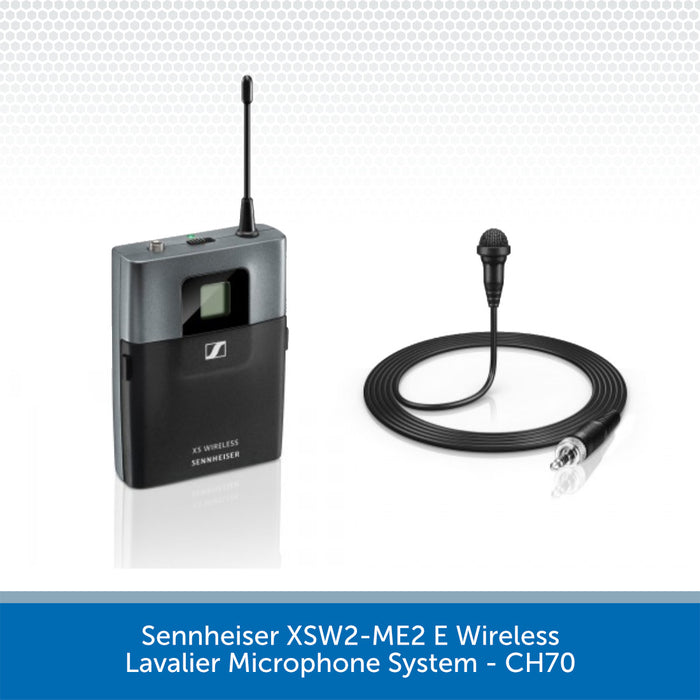

- Unobtrusive clip-on lavalier lapel microphone for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
SPECS & DOWNLOADS
Sennheiser XSW 2-ME2 Specifications
General
- Microphone: Condenser
- Frequency response: 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: Omni-directional
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Modulation: Wideband FM
- Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Diversity reception: True Diversity
- Frequency: 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range (E): 821-832 MHz, 863-865 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 40 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range
- Operation: 0°C to +40°C
- Storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
Receivers
- Dimensions: approx. 200 x 42 x 127 mm
- Weight: approx. 680g
- Power supply: 12 V DC nom. / 300 mA
- Housing: Metal
- AF frequency response: 50 to 16,000 Hz
Transmitter
- Dimensions: approx. 71 x 96 x 28 mm
- Weight: approx. 95g
- Operating time: approx. 10 hrs
