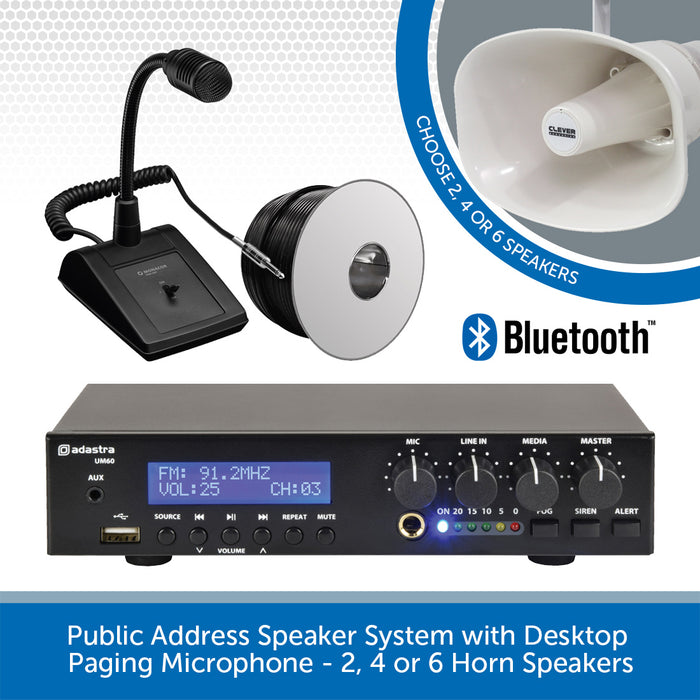

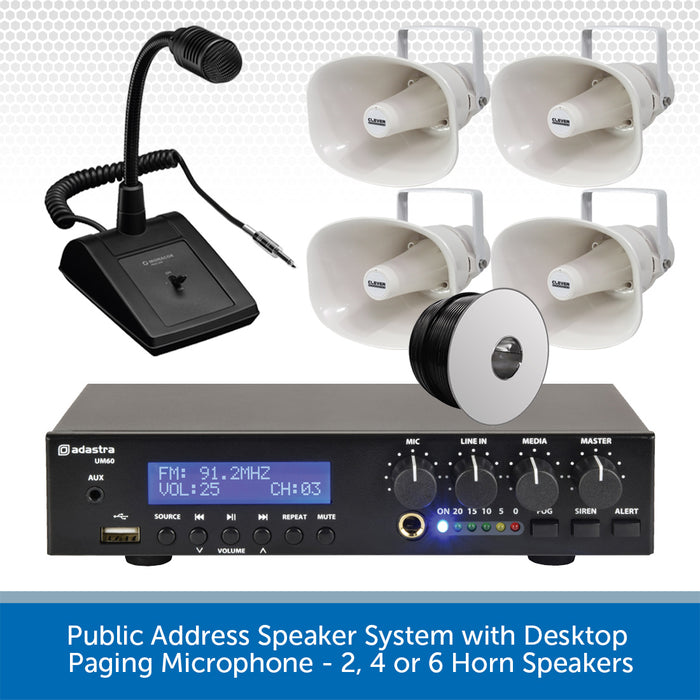

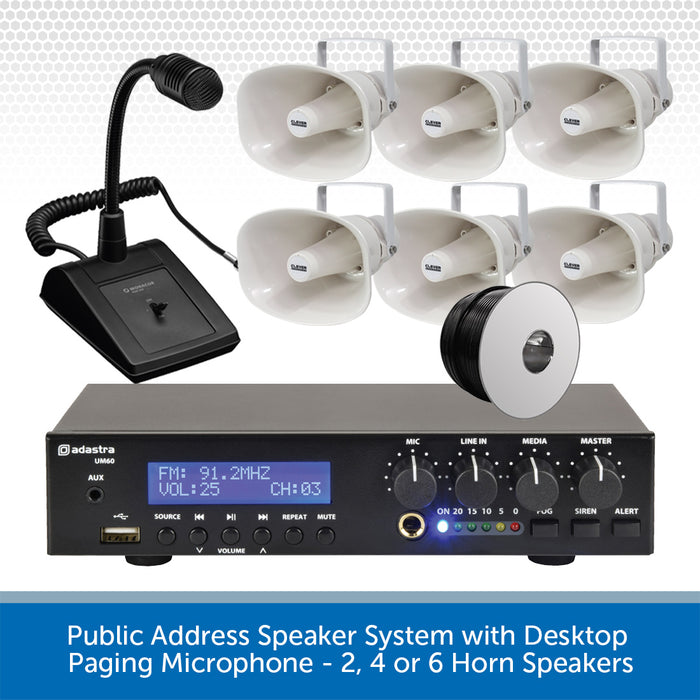

Public Address Speaker System with Desktop Paging Microphone - 2, 4 or 6 Horn Speakers
DETAILS
A high-quality public address system with a paging desktop microphone, and a choice of 2, 4 or 6 weatherproof horn speakers perfect for indoor or outdoor environments wanting to make announcements and/or play background music.
Our professional PA system comes complete with a 60W 100V Bluetooth Mixer Amplifier, a choice of 2, 4 or 6 weatherproof horn speakers, a paging desktop microphone, and a 100m drum of heavy duty speaker cable.
60W 100V Bluetooth Mixer Amplifier
The Monacor 60W 100V Mixer Amplifier is perfect for small-medium sized installations looking for high-quality audio playback. Simply connect a smart device via Bluetooth connectivity and wirelessly stream all your favourite music. Alternatively, you can directly connect an external media player such as a laptop or CD player via the RCA Phono inputs located to the rear. The Monacor amplifier also has a built-in MP3 player with a USB/SD card reader and an FM radio tuner.
The Monacor 60W amplifier features Class-D amplification making it extremely energy efficient and low in running costs. It's also extremely compact and lightweight perfect for sitting it on a desk or counter.
Desktop Paging Microphone
The included Monacor desktop paging microphone is extremely compact and can sit on a desk or counter i.e. reception or managers desk. It features a high-quality capsule perfect for making clear announcements, and a latch on/off switch.
Connecting to MIC 1 on the rear of the amplifier will provide you with VOX Priority, momentarily muting the other inputs (i.e. music/radio) when an announcement is made.
The Monacor paging mic is powered via the mixer amplifier so requires no external power or batteries. The mic comes supplied with a 5-meter XLR cable.
Weatherproof Horn Speakers
Our indoor/outdoor public address system is supplied with a choice of 2, 4 or 6 high-quality weatherproof horn speakers that offer crystal-clear audio playback.
The weather-resistant horn speakers are IP66 rated and made from solid ABS construction making it perfect for use all-year-round.
The outdoor horn speakers operate on 100V Line and have power tappings of 7.5W & 15W.
Double Insulated Speaker Cable
All of out outdoor PA systems are supplied with a 100m drum of double insulated outdoor speaker cable tried and tested for the job.
SPECS & DOWNLOADS
60W 100V Mixer Amplifier Specifications
- Channels: 1
- Zones: 1
- Inputs: 5-8 mV/600 Ω (mic 1-3), 150-470 mV/10 kΩ (line, unbal.),
- Frequency range: 60-15,000 Hz
- Equalizer bass: yes
- Equalizer treble: yes
- S/N ratio: 72 dB (mic) 85 dB (line)
- THD: < 0.500%
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 160 VA
- Operating voltage (possible alternative): DC 24 V
- Power supply (possible alternative): 4.200 A
- Admiss. ambient temp.: 0-40 °C
- Width: 320 mm
- Height: 95 mm
- Depth: 245 mm
- Weight: 4.480 kg
- Connections: 1 x XLR (mic1), 2 x 6.3 mm jack (mic 2-3/line 1-2), 2 x RCA L/R (line 3-4), 2 x RCA (master out), 1 x IEC (FM), screw terminals (emergency, MOH, DC 24 V, speakers)
15W 100V Weatherproof Horn Speakers Specifications
- Input: 100V, 70V
- Power taps @ 100V: 7.5W, 15W
- Power taps @ 70V: 3.75W, 7.5W
- Impedance: 1.3KΩ, 670Ω
- Sensitivity (1W/1m): 103dB (±3dB)
- Maximum SPL (Rated W/1m): 115dB
- Frequency response: 250Hz-8kHz
- Connections: Flying leads
- Dimensions: 165 x 221 x 235mm
- Weight: 1.6kg
- IP rating: IP66
Desktop Paging Microphone Specifications
- Description: desktop microphone
- Transmission: method cable
- Polar pattern: cardioid
- System: dynamic
- Audio frequency range: 60-12,000 Hz
- Nominal impedance: 600 Ω
- Sensitivity: 3.20 mV/Pa
- Gooseneck length: 310 mm
- Admiss. ambient temp.: 0-40 °C
- Dimensions: 120 x 60 x 160 mm (console housing)
- Weight: 1 kg
- Cable: 5 m
- Connection: XLR, bal
Double Insulated Speaker Cable Specifications
- CSA: 2 x 1.15mm²
- Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
- Dimensions: 7.8mmØ
- Current: 15A max.
- Sheath: Black
- Length: 100m
