Monacor PA-9100D 1x1000W Class-D Mixer Amplifier, 100V Line & 4/8 Ohms
Monacor PA-9100D - 1 x 1000W Class-D PA Mixer Amplifier with 5 input channels for music or speech playback.
This Monacor mixer amplifier is unique in the fact that it provides a single-zone 1000-watt power output ideal for large public address & background music applications.
The unit features 4 balanced mic/line inputs which enable the connection of external media players such as a radio, cd player, laptop or smartphone.
Channel 1 is equipped with a talkover function which reduces the volume of all the other inputs, ensuring a clear announcement can be made.
Whilst the PA-9100D is prodomantly designed for large 100V installations it can also be used drive a couple of low impedance (4/8 Ohms) loudspeakers.
Some other key features include:
- 1 x 1,000 W
- Class D concept with PASCAL amplifier module
- Energy-efficient concept due to high efficiency
- Lightweight design due to compact switch-mode power supply
- Silent operation due to fanless cooling concept
- 4 balanced mic/line inputs
- Mic 1 with priority circuit and automatic talkover
- Additional connection for desktop microphone via screw terminal
- 1 aux input

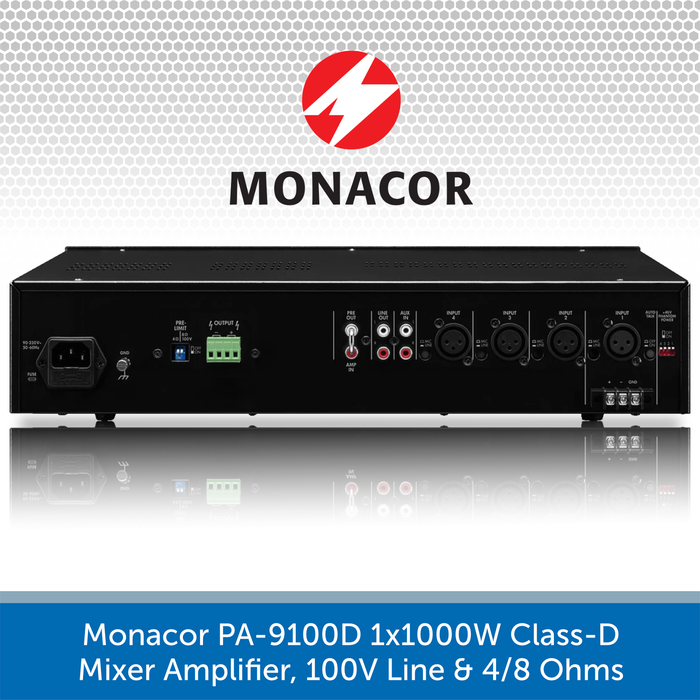

- Speaker outputs via screw terminals
- Line output
- Insert facility, e.g. for effect units, equalizers, feedback controllers
- Input level control and output level control
- 2-way tone control for the output
- 48 V phantom power supply for each microphone input, to be activated individually
- Limiter switch 4 Ω/8 Ω/100 V
- Removable mounting brackets
All Monacor products carry an industry leading 3 year warranty
If you require any assistance with any of our products then call us on 02476 369890 and one of our specialists will be happy to help. Or you can use our Request a call back form.
Monacor PA-9100D Mixer Amplifier Specifications
- Power rating 1,000 W
- Power rating at 4 Ω 900 W
- Power rating at 8 Ω 1,000 W
- Power rating at 100 V 1000 W/9.2 Ω
- Output impedance 4-8 Ω
- Channels 5
- Inputs 3 mV (mic), 200 mV (line), 140 mV (aux)
- Frequency range 20-20,000 Hz
- Integrated limiter yes
- Equalizer bass ± 10 dB/100 Hz
- Equalizer treble ± 10 dB/10 kHz
- S/N ratio > 80 dB
- THD < 0.1%
- Phantom power 48 V
- Mains voltage ~ 90-230 V
- Mains frequency 50-60 Hz
- Power consumption, operation 1,030 VA
- Admiss. ambient temp. 0-40 °C
- Width 482 mm
- Height 88 mm
- Depth 275 mm
- Rack spaces, RS 2
- Weight 5.6 kg

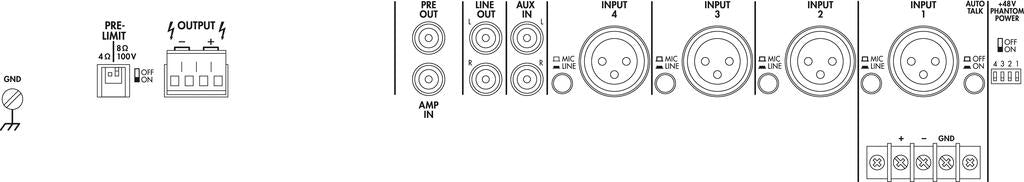

- Connections 4 x XLR (mic/line), 1 x RCA L/R (aux), screw terminals (speakers)
- Packing dimensions (W x H x L) 0.5 x 0.13 x 0.36 m
- Gross weight 6.6 kg
- Net weight 5.6 kg
Monacor PA-9100D Mixer Amplifier - PDF file download
