Monacor PA-803DAP 30W Compact Desktop Mixer Amp with DAB+/FM Radio, Bluetooth & MP3 Player

by Monacor
£109.00 (inc. VAT)
SKU PA-803DAP
DETAILS

Monacor PA-803DAP - Ultra compact Class-D mixer amplifier with DAB+/FM, Bluetooth & MP3 player.

The Monacor PA-803DAP is a premium 30W mixer amplifier perfect for powering small commercial audio applications being used for background music and/or speech.

Thanks to an ultra-compact Class-D design the PA-803DAP is extremely energy efficient and takes up very little space ideal for environments where space is at a premium.

The unit features a built-in DAB+/FM radio tuner, Bluetooth connection for phones & tablets, MP3 player with USB/SD card reader and multiple mic/line level audio inputs.

For ease of use, the PA-803DAP is supplied with an infrared remote control.

Mic input 1 features an override priority which dims all of the other inputs whilst an announcement is being made.

Whilst the Monacor PA-803DAP is mainly designed for 100V speakers it can also be used to power a couple of low-impedance (4/8 Ohms) loudspeakers.

 Some other key features include:

  • 1 x 30 W
  • Class D concept with high efficiency to cut energy costs
  • Silent operation due to fanless cooling concept
  • Bluetooth version 4.2
  • MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
  • Reception of interference-free 'digital radio' (DAB+)
  • 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
  • 2 unbalanced inputs, switchable mic/line
  • 2 unbalanced line inputs
  • 1 emergency input
  • 1 Music-On-Hold output (MOH)
  • Speaker outputs via screw terminals
  • 2 line outputs
  • Input level control and output level control
  • 2-way tone control for the output
  • LEDs for indicating operation, clipping, protect and signal level

All Monacor products have a 3 year warranty

All Monacor products carry an industry leading 3 year warranty

See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS

    Monacor PA-803DAP Mixer Amplifier Specifications

    • Power rating 30 W
    • Channels 1
    • Zones 1
    • Inputs 4.5 mV/600 Ω (mic 1-3), 120 mV (line 2-3), 60 mV (line 4-5), 90 mV (tel.)
    • Frequency range 60-15,000 Hz
    • Equalizer bass yes
    • Equalizer treble yes
    • S/N ratio 72 dB (mic), 85 dB (line)
    • THD < 0.5%
    • Phantom power 48 V
    • Mains voltage ~ 230 V
    • Mains frequency 50 Hz
    • Power consumption, operation 100 VA
    • Operating voltage (possible alternative) DC 24 V
    • Power supply (possible alternative) 2.5 A
    • Admiss. ambient temp. 0-40 °C
    • Width 320 mm
    • Height 95 mm
    • Depth 245 mm
    • Weight 3.74 kg

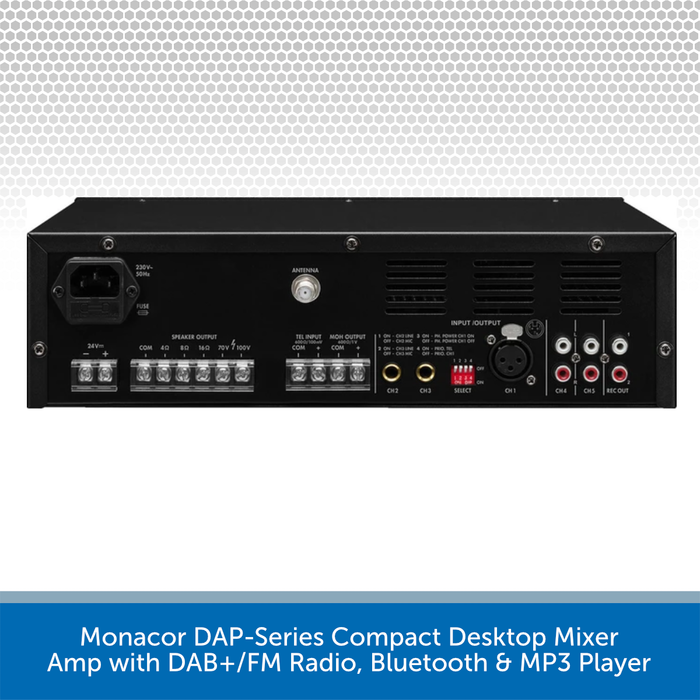

    • Connections 1 x XLR (mic 1), 2 x 6.3 mm jack (mic 2-3/line 1-2), 2 x RCA L/R (line 3-4), 2 x RCA (master out), 1 x IEC (FM), screw terminals (emergency, MOH, DC 24 V, speakers)
    • Packing dimensions (W x H x L) 0.39 x 0.16 x 0.3 m
    • Gross weight 4.33 kg
    • Net weight 3.74 kg

          Monacor PA-803DAP Mixer Amplifier - PDF file download

          Download the User Manual HERE

          Download Product Data Sheet HERE
