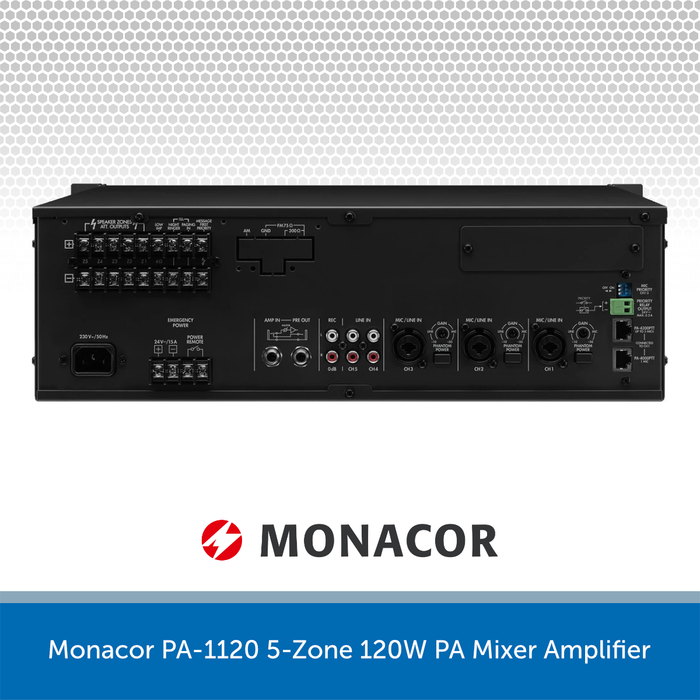

Monacor PA-1120 5-Zone 120W PA Mixer Amplifier

by Monacor
£495.00 (inc. VAT)
SKU PA-1120
DETAILS

The Monacor PA-1120 is a 5-Zone 120W Mixer Amplifier with 5-zone volume attenuation; perfect for medium to large scale multi-zone audio PA.

    Some other key features include:

    • 1 x 120 W
    • 5 zones, can be controlled individually
    • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
    • Bass, treble and master controls, level display via LEDs, regulated fan
    • Insertions for various functions are available at option
    • 17 V phantom power for electret microphones
    • Connection for zone paging microphone PA-1120RC (available at option)
    • Connection for push-to-talk microphone PA-4000PTT or PA-4300PTT
    • Automatic alarm announcement with insertion PA-1120DMT (available at option)
    • Mains operation and 24 V emergency power operation
    • Removable mounting brackets

    All Monacor products have a 3 year warranty

    All Monacor products carry an industry leading 3 year warranty

    See SPECIFICATION tab for technical specs

    SPECS & DOWNLOADS

    Monacor PA-1120 Specifications

    • Peak output power: 170 W
    • Power rating: 120 W
    • Channels: 5
    • Zones: 5
    • Inputs: 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line), 0.3 V/15 kΩ (line), 0.775 V/10 kΩ (preamplifier)
    • Frequency range: 55-16,000 Hz
    • Equalizer bass: ± 10 dB/100 Hz
    • Equalizer treble: ± 10 dB/10 kHz
    • S/N ratio:  > 70 dBA (mic),> 80 dBA (line)
    • THD: < 1%
    • Phantom power: 17 V
    • Mains voltage: ~ 230 V
    • Mains frequency: 50 Hz
    • Power consumption, operation: 340 VA
    • Operating voltage (possible alternative): DC 24 V
    • Power supply (possible alternative): DC 15 A
    • Admiss. ambient temp.: 0-40 °C
    • Width: 482 mm
    • Height: 133 mm
    • Depth: 352 mm
    • Rack spaces, RS: 3
    • Weight: 13 kg



    Monacor PA-1120 Mixer Amplifier - PDF file download

    Download the PDF Product Data Sheet HERE

    Download the PDF Manual HERE
