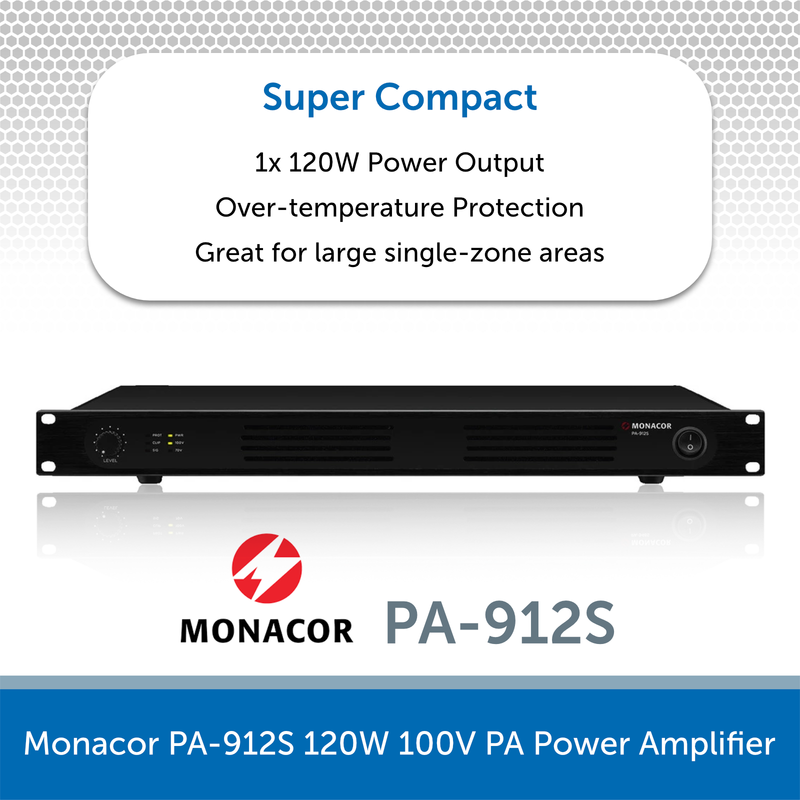

Monacor PA-912S 120W 100V PA Power Amplifier

by Monacor
£199.00 (inc. VAT)
SKU PA-912S

DETAILS

The Monacor PA-912S is slimline PA Power Amplifier that offers a reliable, and high-quality solution for fixed public address & background music applications running 100V Line loudspeakers.

Housed in a discreet 2U rack casing, the PA-912S offers both size and weight reduction benefits, whilst still retaining a high power output.

This professional 100V PA amplifier is designed for small-medium scale PA systems where reliable amplification is required over a long speaker line; such as schools, colleges, supermarkets, factories, warehouses, etc.

The Monacor PA-912S has an XLR/Jack Combo input for connecting an external audio mixer. It also has an XLR Link which can be taken off to another slave/power amplifier or Active speaker/subwoofer.

Designed to be installed into a 19" rack cabinet or case, but can also be free-standing on a desktop counter or desk, etc.

Supplied with a 3-year manufacturers warranty.

Monacor PA-912S Key Features

  • 1 x 120 W
  • Temperature-controlled fan, continuously adjustable
  • Protected against overheating, overload and short circuit
  • LED indication for clip, protect, overtemperature, output level and 100 V/70 V
  • Feed-through output (link)
  • Speaker outputs via screw terminals



    All Monacor products have a 3 year warranty

    All Monacor products carry an industry leading 3 year warranty

    See SPECIFICATION tab for technical specs

    SPECS & DOWNLOADS

    Monacor PA-912S Specifications

    • Power rating: 120 W
    • Power rating at 100 V: 1 x 120 W
    • Output impedance: 70 V/40 Ω, 100 V/80 Ω
    • Channels: 1
    • Inputs: 670 mV/10 kΩ, balanced
    • Frequency range: 80-16,000 Hz
    • S/N ratio: > 98 dBA
    • THD: < 1%
    • Mains voltage: ~ 230 V
    • Mains frequency: 50 Hz
    • Power consumption, operation: 225 VA
    • Admiss. ambient temp.: 0-40 °C
    • Width: 483 mm
    • Height: 44 mm
    • Depth: 255 mm
    • Rack spaces, RS: 1
    • Weight: 3.5 kg

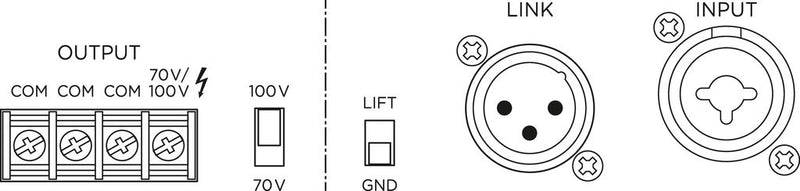

    • Connections: 1 x 6.3 mm/XLR combo (input), 1 x XLR (link), screw terminals (speakers)



    Monacor PA-912S PDF File Download

    Download the PDF Product Data Sheet HERE

    Download the PDF Manual HERE
