Monacor PA-6600 600W 6-Zone 100V Line Mixer Amplifier for use in commercial sound systems

by Monacor
£949.00 (inc. VAT)
SKU PA-6600
DETAILS

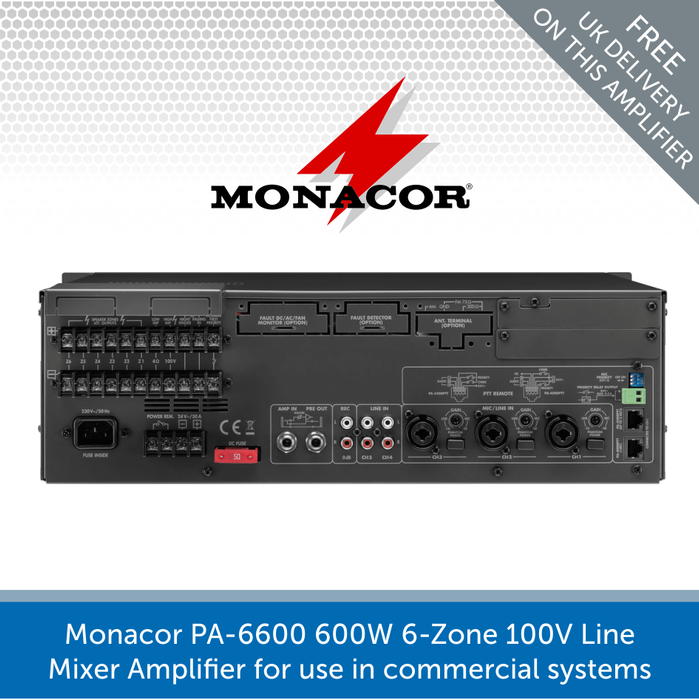

The Monacor PA-6600 is a 6-zone 600W 100V line mixer amplifier perfect for large installations that require control over multiple zones/areas.

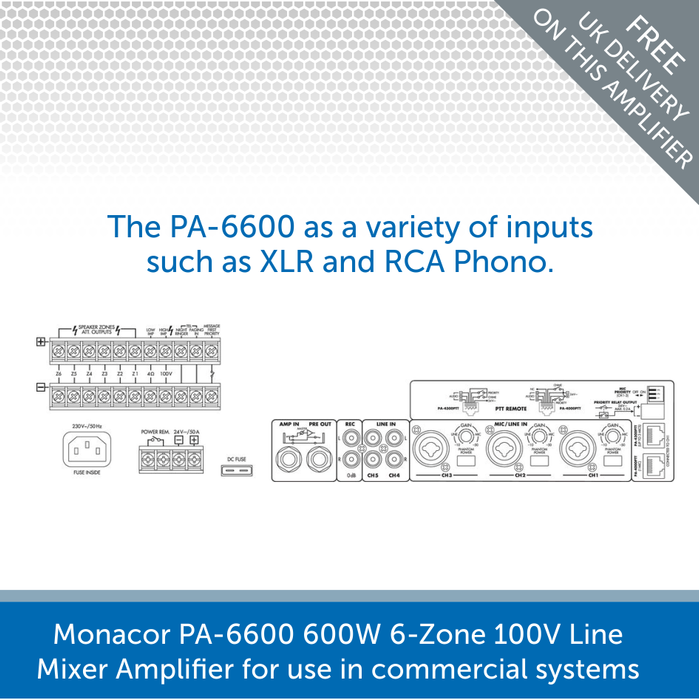

The professional mixer amplifier also has microphone paging and an input for both a fire alarm and a telephone system. The PA-6600 as a variety of inputs such as XLR and RCA Phono.

Key features:

  • 6-Zone mixer amplifier with separate volume controls

  • Fire alarm priority input

  • Telephone system input

  • Microphone paging



    Some other key features include:

    • 6 zones, can be controlled individually
    • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
    • Bass, treble and master controls, level display via LEDs, regulated fan
    • Insertions for various functions are available at option
    • 17 V phantom power for electret microphones
    • Connection for zone paging microphone PA-6000RC
    • 1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option
    • 3 insertion facilities on the rear panel for optional modules
    • Mains operation and 24 V emergency power operation
    • Removable mounting brackets

    All Monacor products have a 3 year warranty

    All Monacor products carry an industry leading 3 year warranty

    See SPECIFICATION tab for technical specs

    SPECS & DOWNLOADS

    Monacor PA-6600 Specifications

    Channels: 5

    Zones: 6

    Power rating: 600 W

    Peak music power output (PMAX): 850 W

    Inputs: 2.5 mV/5 k?, 0.3 V/5 k? (mic/line), 0.3 V/15 k? (line), 0.775 V/10 k? (preamplifier)

    Frequency range: 55–16,000 Hz

    Equalizer bass: ± 10 dB/100 Hz

    Equalizer treble: ± 10 dB/10 kHz

    S/N ratio: > 70 dBA (mic), > 80 dBA (line)

    THD: < 1%

    Power supply: ˜ 230 V/50 Hz/1,700 VA, DC  24 V/50 A

    Mains voltage: ˜ 230 V

    Mains frequency: 50 Hz

    Power consumption, operation: 1,500 VA

    Operating voltage (possible alternative): DC 24 V

    Power supply (possible alternative): DC 40 A

    Admiss. ambient temp.: 0–40 °C

    Dimensions: 430 x 133 x 352 mm, 3 RS

    Width: 430 mm

    Height: 133 mm

    Depth: 352 mm

    Rack spaces, RS: 3

    Weight: 20 kg

    Connections: 3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplifier), 1 x RJ45 (push-to-talk mic), screw terminals (telephone system), screw terminals (speakers), 1 x 6.3 mm jack (ext. amplifier)

    Monacor PA-6600 Mixer Amplifier - PDF file download

    Download the PDF Product Data Sheet HERE

    Download the PDF Manual HERE
