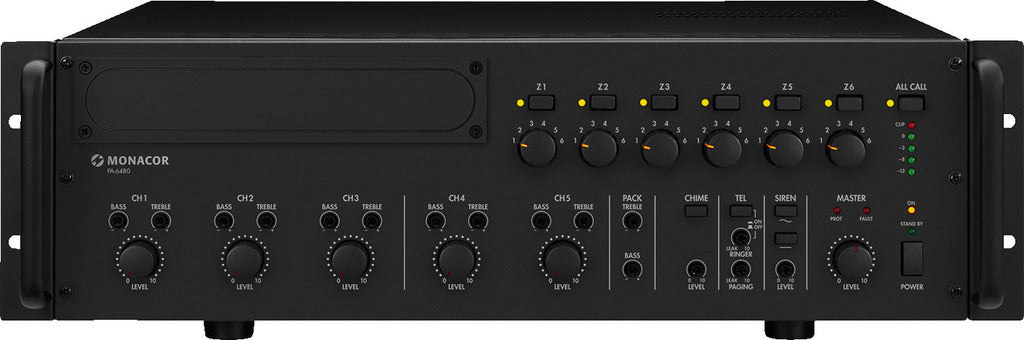

Monacor PA-6480 6-Zone 480W Mixer Amplifier, 100V Line

by Monacor
£759.00 (inc. VAT)
SKU
Bluetooth Kit

DETAILS

The Monacor PA-6480 is a commercial grade 480w 6 Zone 100v Line amplifier that features individual volume controls for each zone.

Add Bluetooth to this system for just £29.99!

Each of the 6 zones is rated at 100 watts giving you lots of flexibility when installing ceiling or wall speakers and delivers a clear and comfortable sound making it ideal for commercial use.

The PA-6480 is recommended for installers who want a reliable audio solution for playback of background music in restaurants, hotels, pubs, factories, care homes or other small to medium venues that need a high-quality music system with zone volume control.

Simply add a media player such as a CD, DAB or iPod to this amp and you have a complete solution.



Key features:

  • 6 zones, can be controlled individually

  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)

  • Bass, treble and master controls, level display via LEDs, regulated fan

  • Insertions for various functions are available at option

  • 17 V phantom power for electret microphones

  • Connection for zone paging microphone PA-6000RC

  • 1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option

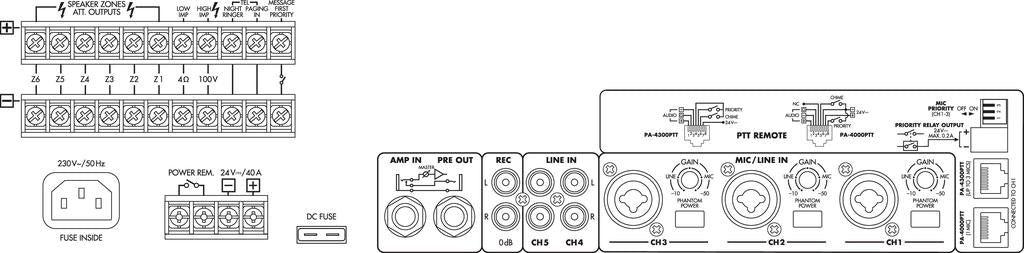

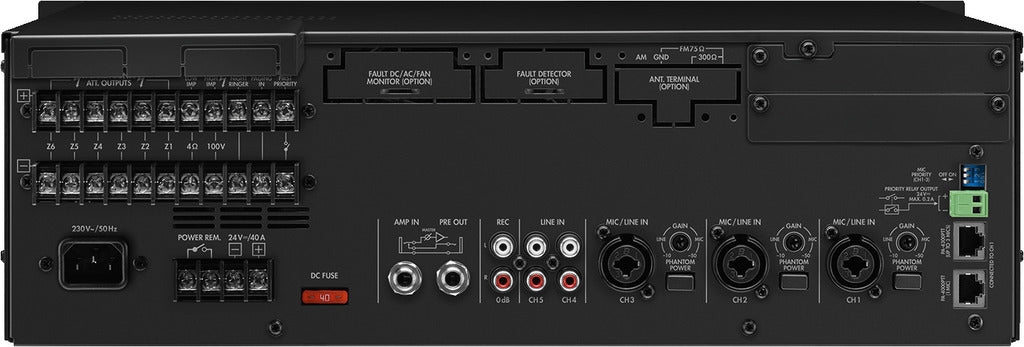

  • 3 insertion facilities on the rear panel for optional modules with the following features:

  • PA-6FD: fault detection

  • PA-6FM: fault monitoring

  • PA-6FR: anti-feedback

  • Mains operation and 24 V emergency power operation

  • Removable mounting brackets

    All Monacor products have a 3 year warranty

    All Monacor products carry an industry leading 3 year warranty

    See SPECIFICATION tab for technical specs

    SPECS & DOWNLOADS

    Monacor PA-6480 Specifications

    Peak output power: 680 W
    Power rating: 480 W
    Channels: 5
    Zones: 6
    Inputs:

    • 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line)
    • 0.3 V/15 kΩ (line),
    • 0.775 V/10 kΩ (preamplifier)

    Frequency range: 55-16,000 Hz
    Equalizer bass: ± 10 dB/100 Hz
    Equalizer treble: ± 10 dB/10 kHz
    S/N ratio

    • > 70 dBA (mic)
    • > 80 dBA (line)

    THD: < 1%
    Mains voltage: ~ 230 V
    Mains frequency: 50 Hz
    Power consumption, operation: 1,500 VA
    Operating voltage (possible alternative): DC 24 V
    Power supply (possible alternative): DC 40 A
    Admiss. ambient temp.: 0-40 °C
    Width: 430 mm
    Height: 133 mm
    Depth: 352 mm
    Rack spaces, RS: 3
    Weight: 19 kg



    Monacor PA-6480 Mixer Amplifier - PDF file download

    Download the PDF Product Data Sheet HERE

    Download the PDF Manual HERE
