Monacor PA-6240 240W 6 Zone 100V Line Mixer Amplifier for use in commercial sound systems

by Monacor
£699.00 (inc. VAT)
SKU PA-6240
DETAILS

The Monacor PA-6240 is a 6-zone 240W 100V line mixer amplifier perfect for large installations that require control over multiple zones/areas.

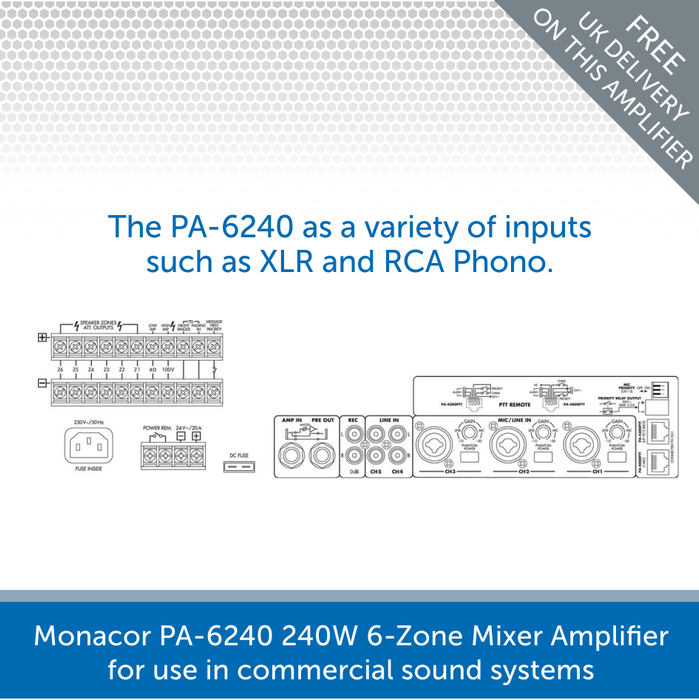

The professional micer amplifier also has microphone paging and an input for both a fire alarm and a telephone system. The PA-6240 as a variety of inputs such as XLR and RCA Phono.

Key features:

  • 6-Zone mixer amplifier with separate volume controls

  • Fire alarm priority input

  • Telephone system input

  • Microphone paging

Some other key features include:

  • 6 zones, can be controlled individually
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, level display via LEDs, regulated fan
  • Insertions for various functions are available at option
  • 17 V phantom power for electret microphones
  • Connection for zone paging microphone PA-6000RC
  • 1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option
  • 3 insertion facilities on the rear panel for optional modules
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets

All Monacor products have a 3 year warranty

All Monacor products carry an industry leading 3 year warranty

See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

Monacor PA-6240 Specifications

Channels: 5

Zones: 6

Power rating: 240 W

Peak music power output (PMAX): 340 W

Inputs: 2.5 mV/5 k?, 0.3 V/5 k? (mic/line), 0.3 V/15 k? (line), 0,775 V/10 k? (preamplifier)

Frequency range: 55-16,000 Hz

Equalizer bass: ± 10 dB/100 Hz

Equalizer treble: ± 10 dB/10 kHz

S/N ratio: > 70 dBA (mix), > 80 dBA (line)

THD: < 1%

Power supply: ~230 V/50 Hz/750 VA, DC  24 V/20 A

Mains voltage: ~ 230 V

Mains frequency: 50 Hz

Power consumption, operation: 750 VA

Operating voltage (possible alternative): DC 24 V

Power supply (possible alternative): DC 20 A

Admiss. ambient temp.: 0-40 °C

Dimensions: 430 x 133 x 352 mm, 3 RS

Width: 430 mm

Height: 133 mm

Depth: 352 mm

Rack spaces, RS: 3

Weight: 17 kg

Connections:

  • 3 x combo 6.3 mm/XLR (mic/line),
  • 2 x RCA L/R (line),
  • 1 x 6.3 mm jack (preamplifier),
  • 1 x RJ45 (push-to-talk mic),
  • screw terminals (telephone system),
  • screw terminals (speakers),
  • 1 x 6.3 mm jack (ext. amplifier),
  • 1 x RCA L/R (record)

Monacor PA-6240 Mixer Amplifier - PDF file download

Download the PDF Product Data Sheet HERE

Download the PDF Manual HERE
