Monacor PA-12040 4-Zone 480W Mixer Amplifier, 100V Line - Independent Source Selection & Volume

by Monacor
Original price £749.00 (inc. VAT) - Original price £749.00 (inc. VAT)
Original price £749.00 (inc. VAT)
£749.00 (inc. VAT)
£749.00 (inc. VAT) - £749.00 (inc. VAT)
Current price £749.00 (inc. VAT)
SKU PA-12040

DETAILS

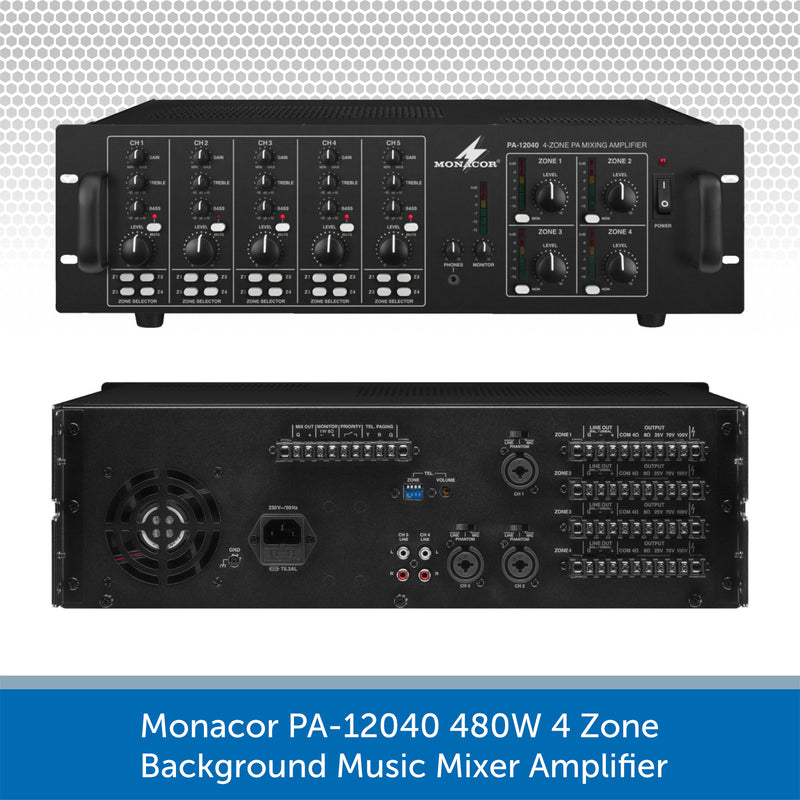

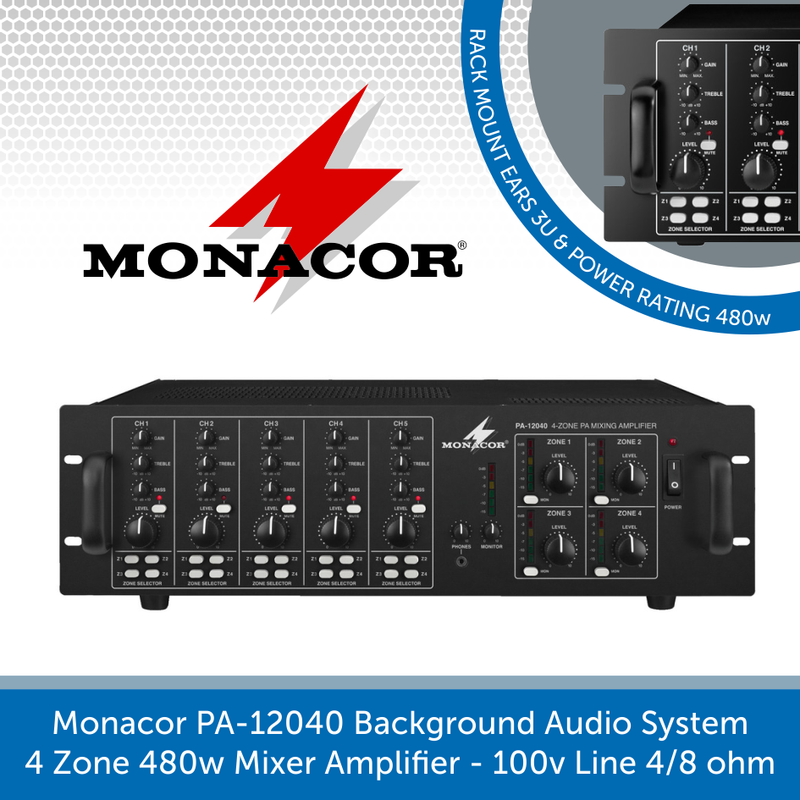

The Monacor PA-12040 480W mixer amplifier is perfect for installing into large entertainment / commercial environments that are wanting a high-quality background music system.

Add Bluetooth to this system for just £29.99!

The professional amplifier features 4 x 120W zones that have their own designated volume and EQ controls (gain, treble & bass). This is perfect for environments where multiple zones are required.

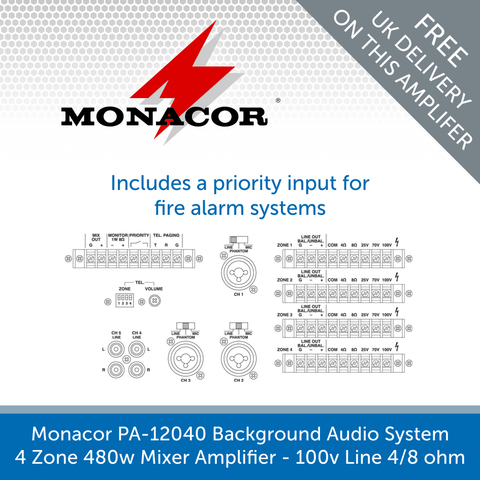

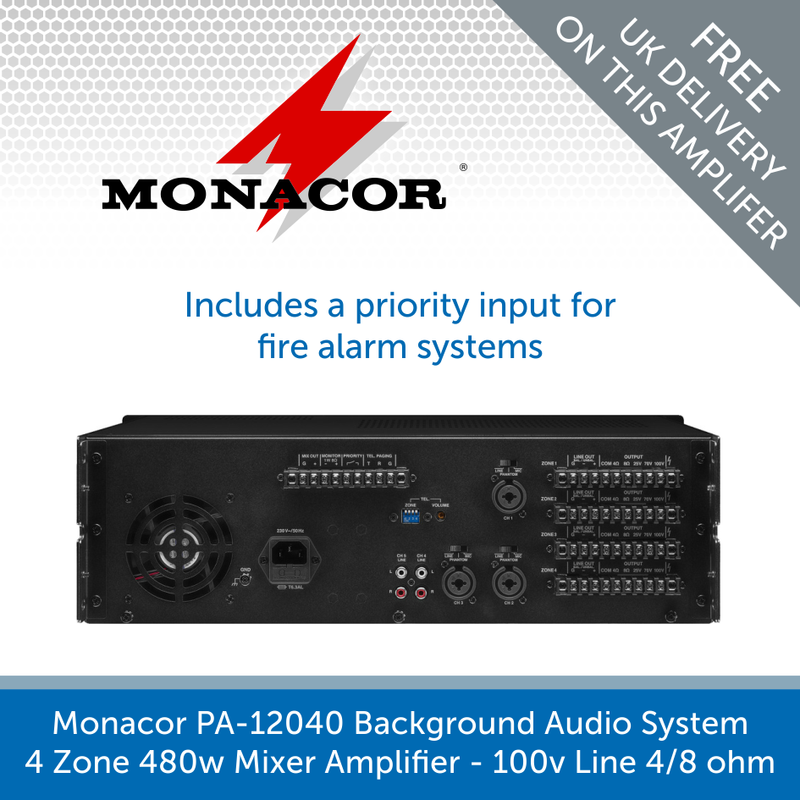

On the rear of the amplifier there is a 'Priority' input for the direct connection of a fire alarm system. This will mean when the fire alarm sounds, the amplifier and speakers will mute, ensuring an emergency evacuation can take place.

The Bass & Treble EQ and Master volume can control the overall output and can be used to power either 8 Ohms or 100V line speakers.

Featuring a variety of inputs such as Mic/Line and RCA Phono the PA-12040 can take a direct connection from smartphones/tablets, CD or DAB radios, as well as a microphone. A headphone output is also situated on the face of the amplifier so you can monitor the audio.



Key features:

  • Perfect for multi-room PA applications

  • Priority input for fire alarm systems

  • Independent paging input can be routed to all zones

  • 4 zone outputs can be controlled individually


Some other key features include:

  • 4 x 120WRMS 100V and 4 Ohm/8 Ohm operation
  • Perfect utilisation of the capacity and reliable protection of the connected speakers due to an integrated limiter
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs line stereo via RCA jacks
  • Each input channel with gain control 2-way tone control channel mute switch and routing switch for zones
  • Microphone inputs with +46V phantom power can be switched on additionally as required
  • Priority function for channels 1-3 switchable
  • Independent paging input can be routed to all zones
  • 4 zone outputs can be controlled individually
  • Zone and monitor line outputs for additional amplifiers or recorders
  • Connection for monitor speakers
  • Level control via VU meters for zone and monitor
  • Adjustable headphone output
  • Fan-cooling
  • 230V mains operation



    All Monacor products have a 3 year warranty

    All Monacor products carry an industry leading 3 year warranty

    See SPECIFICATION tab for technical specs

    SPECS & DOWNLOADS

    Monacor PA-12040 Specifications

    Dimensions (WxHxD): 482x133x410mm

    Weight: 20.5kg

    External Depth:  410mm

    External Length / Height:  133mm

    External Width:  482mm

    Frequency Response Max:  17kHz

    Frequency Response Min:  50Hz

    No. of Inputs:  5

    No. of Outputs:  4

    Output Voltage Max:  100V

    Output Voltage Min:  25V

    Power Rating RMS:  120W

    Supply Voltage V AC:  230V

    Weight:  20.5kg



    Monacor PA-12040 Mixer Amplifier - PDF file download

    Download the PDF Product Data Sheet HERE

    Download the PDF Manual HERE

      }
