Monacor EDL-36TW 10W 100V Line Ceiling Speaker with Firedome

by Monacor
Sold out
Original price £49.00 (inc. VAT) - Original price £49.00 (inc. VAT)
Original price £49.00 (inc. VAT)
£49.00 (inc. VAT)
£49.00 (inc. VAT) - £49.00 (inc. VAT)
Current price £49.00 (inc. VAT)

The Monacor EDL-36TW 10W 100V line ceiling speaker comes fitted with a fire protection/fire dome cover making it suitable for installs into public areas such as sport/leisure centres, restaurants, care homes and environments alike.

The 100V Line speaker is supplied with a 'Thermal Fuse' for disconnecting a faulty speaker in case of a short circuit (fire), so that the function of one speaker line is maintained.

A 3-step power selector switch is situated on the rear of the speaker for selecting 100V Line tappings of 2.5, 5 and 10W. This is ideal for balancing your system. A 'quick-mounting' facilty is also provided for a straight forward installation.

Monacor EDL-36TW Key Features:

  • Fire protection cover

  • Metal housing with fitted ceramic terminal

  • Thermal fuse: 1 A/150 °C, for disconnecting a faulty speaker in case of a short circuit (fire), so that the function of one speaker line is maintained

  • 3-step power selector switch

  • Glass fibre insulated supply line with high-strength cable gland

  • Quick-mounting facility

  • Robust metal grille and basket

    All Monacor products have a 3 year warranty

    All Monacor products carry a industry leading 3 year warranty

    See SPECIFICATION tab for technical specs


    Monacor EDL-36TW

    Operating voltage: 100 V

    Frequency range: 150-20,000 Hz

    Power rating: 10/5/2.5 W

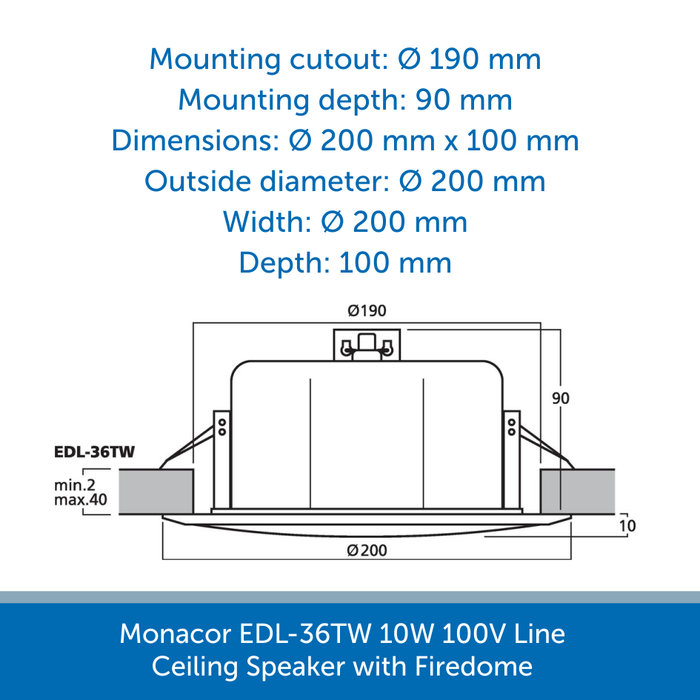

    Mounting cutout: Ø 190 mm

    Mounting depth: 90 mm

    Dimensions: Ø 200 mm x 100 mm

    Outside diameter: Ø 200 mm

    Width: Ø 200 mm

    Depth: 100 mm

    Weight: 1.5 kg


    Monacor EDL-36TW PDF file downloads

    Download the Data Sheet HERE

    Download the Instruction Manual HERE
