Lithe Audio Link Pack (3.5mm Jack Connection) - Connect multiple speakers together!
Please note this pack is for pre-May 2023 Lithe Audio Bluetooth Speakers with a 3.5mm Jack Connection. Speakers after this date have an optical connection so you will need this pack HERE.
DETAILS
Our Lithe Audio Link Pack allows you to connect multiple master Lithe Audio speakers together and have them all playing the same music at once.
The Lithe Link Pack is ideal for installs into large lounges, kitchens & diners where more speakers are required, but the sound needs to be the same throughout.
The Lithe Audio connection pack comes complete with a shielded jack to jack audio cable and a ground loop isolator that both ensure optimized sound quality and reduce the risk of power interference.
Lithe Link allows for up to 3x Master Speakers to be connected at once, meaning you can have up to 6x speakers in total when paired with the slave speakers.
Dual Speaker Bundle Includes:
- 2x 6m 3.5mm - 3.5mm Shielded cable (AV13646)
- 2x 3.5mm - 3.5mm Ground Loop Isolator (201087)
Three Speaker Bundle Includes:
- 3x 6m 3.5mm - 3.5mm Shielded cable (AV13646)
- 3x 3.5mm - 3.5mm Ground Loop Isolator (201087)
How to Set Up
The Lithe Link works both ways on each speaker, meaning you can connect the input of one speaker to the output of another, and vice versa using the same speakers. This is a good option if you want to connect to ANY speaker, and play audio through all of them at once.
If you want to only play music out of one speaker in particular when connected, for example the lounge, but would also like to play out of more than one speaker when connected to another, then simply connect 1x Lithe Link cable & isolator from an input to an output.
The GREEN jack on the speaker is the Line IN.
The PINK jack on the speaker is the Line OUT.

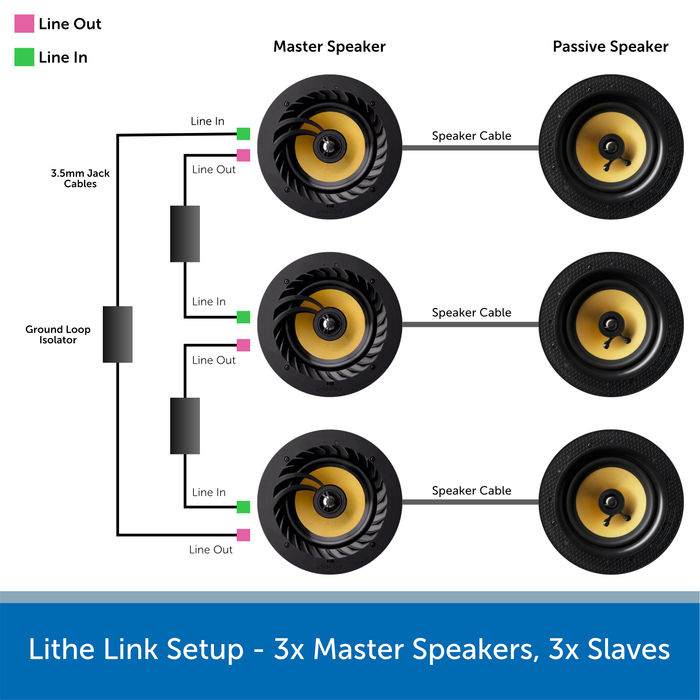

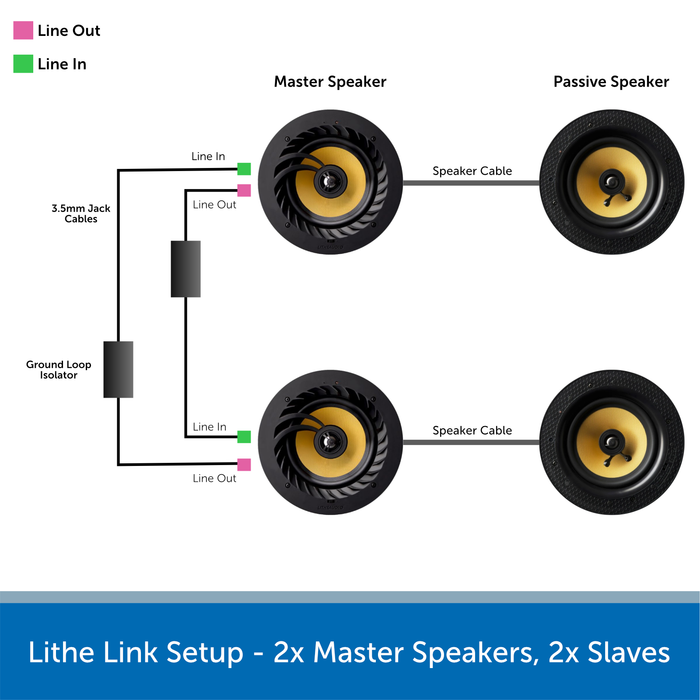

Setup Example
Scenario: When connected to the lounge speaker, ONLY play out of the lounge speaker. When connected to the kitchen speaker, play out of the kitchen AND lounge at the same time.
How to: Connect a Lithe Link from the output of the Kitchen into the Line In of the Lounge Speaker. That's it.
See the image or manual for more details.
SPECS & DOWNLOADS
Shielded Jack to Jack Cable
- Cable : diameter: 6mmØ
- Conductors: 2 x 20 strand, 0.1mmØ pure copper
- Connectors: 2 x 3.5mm stereo (TRS) jack plug
- Length: 6m
Ground Loop Isolator
- Cable : length600mm
- Dimensions: 60 x 35mmØ
- Weight: 130g
