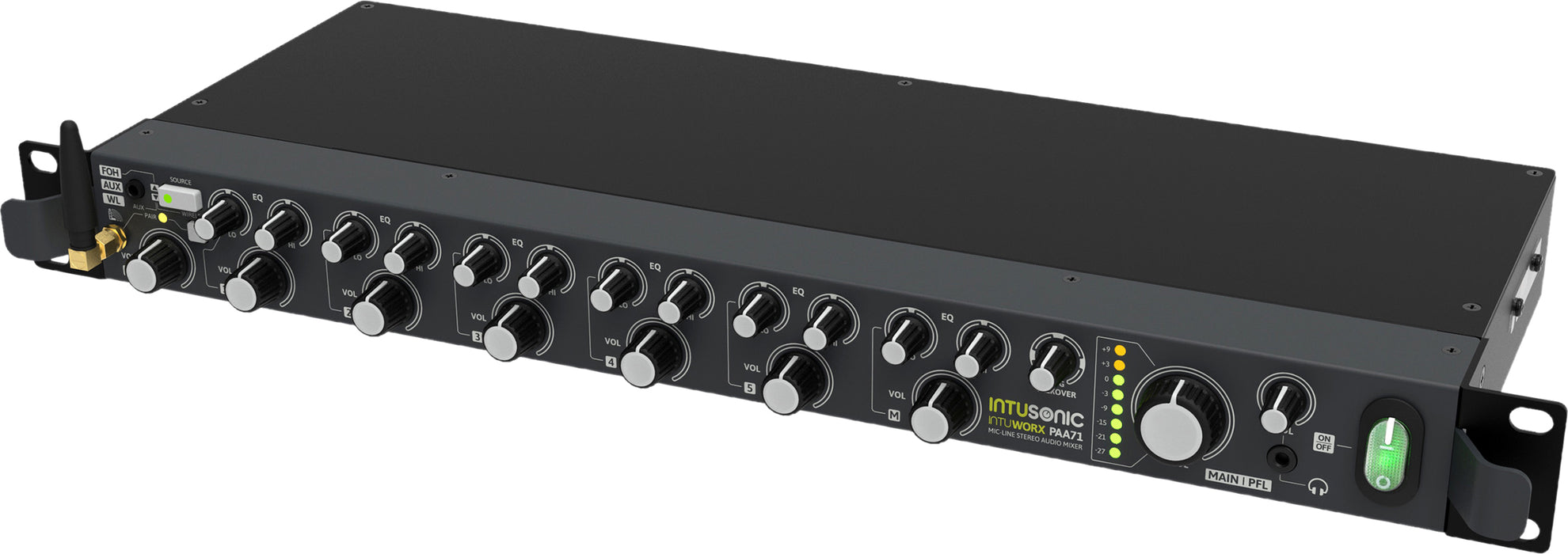

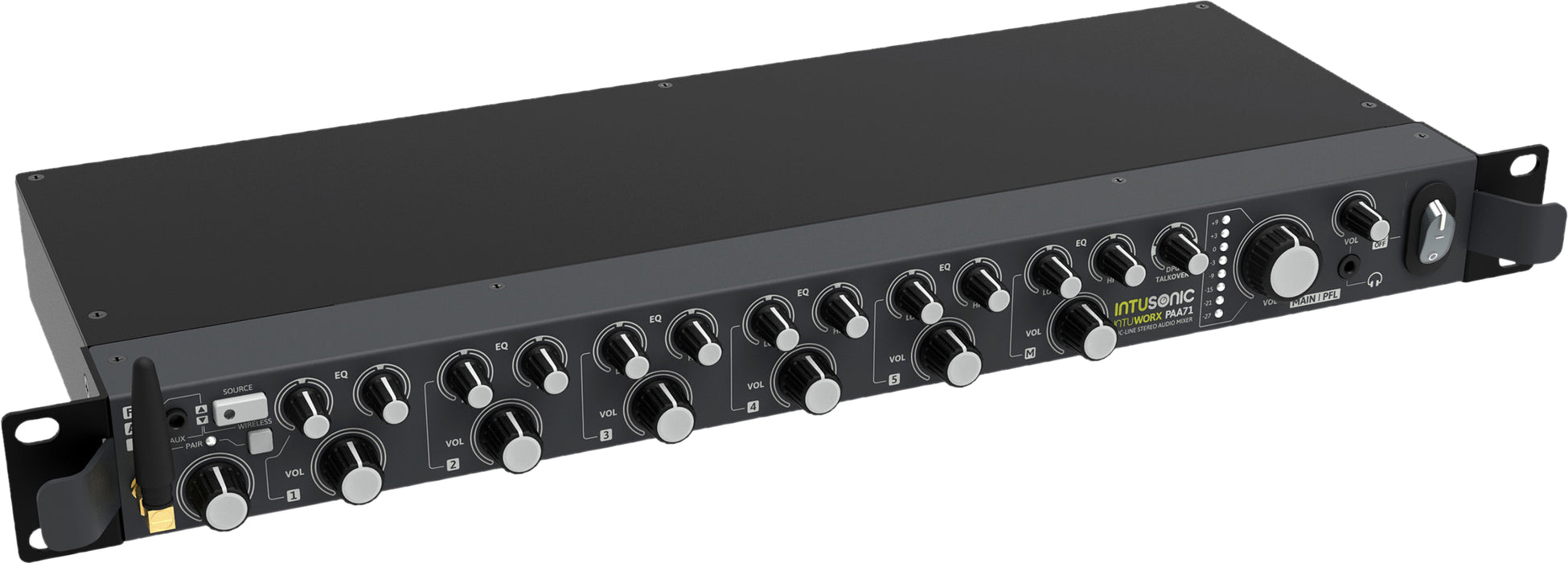

Intusonic IntuWorx PAA71 1U Mic/Line Audio Mixer
The INTUWORX PAA71 is a 7-channel mic/line mixer and the perfect centre of any installed sound system.
It offers 5 multi-purpose inputs which can either be fed with a balanced microphone signal or an unbalanced stereo line signal.
One further balanced stereo line level input is specifically useful for sources at larger distances, like a mixer on a stage, or the output of a different room's system.
The same input can be switched to receive its input signal from the 3.5mm TRS jack on the front, or the built-in LINKOUSTIC 4.2 wireless audio link.
An additional dedicated microphone input with adjustable talk-over (priority) provides control over announcements.

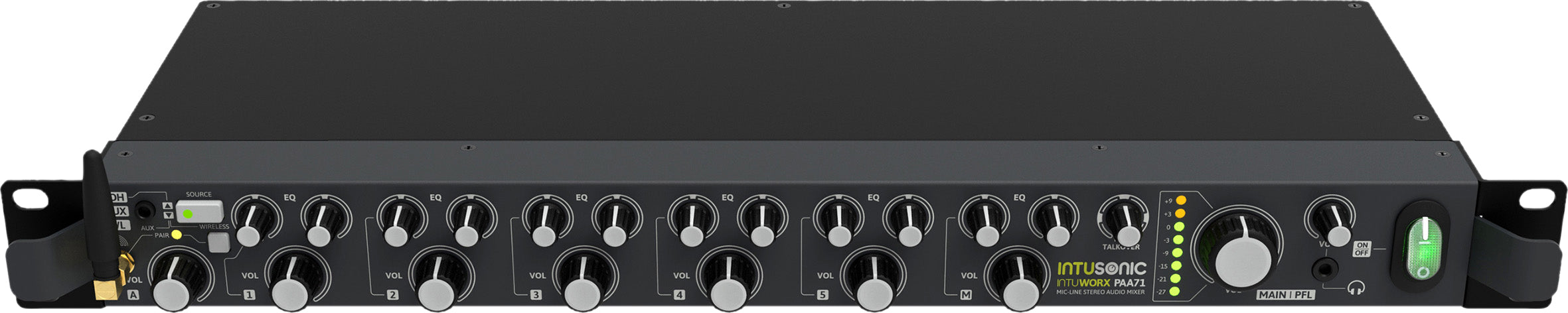

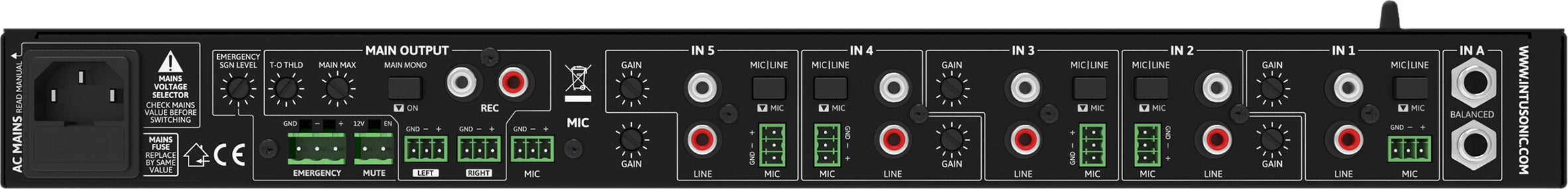

Every input - with the exception of the balanced stereo input - is equipped with rear-panel gain control and a front-panel 2-band equalizer. The external shutdown and emergency signal input connections allow integration with central announcement and evacuation systems where required.
Intusonic IntuWorx PAA71 Key Features:
- 5 stereo inputs switchable balanced-mic/unbalanced-line
- 1 balanced stereo input (FOH input), switchable to 3.5mm TRS input on the front panel or internal wireless audio receiver
- 1 dedicated microphone input on rear-side 3.5mm strip connector
- Rear-panel gain control, front-panel 2-Band EQ and front-panel level control for all input channels (no gain for FOH)
- 12V phantom power for microphones by internal jumper
- Adjustable auto talk-over (music level reduction if mic used)
- Internal LINKOUSTIC™ 4.2 wireless audio link with front-side antenna and forced pairing-release function
- One stereo master output (balanced 3.5mm strip connectors)
- Rear-side adjustable maximum level control for master output
- Rear-side mono switch for master output
- 8-LED level meter for stereo master output
- Emergency input (replaces master by emergency signal)
- Output mute contact to externally mute the output
- 3.5mm headphones output with volume control
- Unbalanced record output
- Internal wide-voltage linear PSU for excellent audio dynamics
- AC mains voltage selector switch 115/230V
- Full metal case with separately detachable rack ears and handles
- CE/ROHS compliant
SPECS & DOWNLOADS
Intusonic IntuWorx PAA71 Specifications
- Frequency response: 20Hz – 20 kHz
- S/N ratio: > 82dB (Line)
- Crosstalk damping: > 72dB (Line)
- THD&N: < 0.05%
- AC IN: 115V/230~ 50/60Hz, max 12W
- Dimensions WxDxH: 482.6x180x44mm
- Weight: 2.5 kg
