Inter-M WS Series Professional Compact Loudspeakers for Background & Foreground Music, IP54 Rated

by Inter-M
£41.00 (inc. VAT)
SKU WS15T-BK
Model (Size)
Colour

The Inter-M WS Series Loudspeakers are designed to deliver professional quality audio for both background and foreground music/voice applications.

These installation speakers are weather resistant (IP54 Rated) so can be used in indoor and outdoor environments. They feature a compact and elegant design that is perfect for stylish environments where space is at a premium.

The speakers can be used in various applications from small-sized venues to mid/large-sized venues. They particularly fit in facilities that require high-quality background/foreground music such as cafes, bars and restaurants, hotel lobbies and retail stores etc.

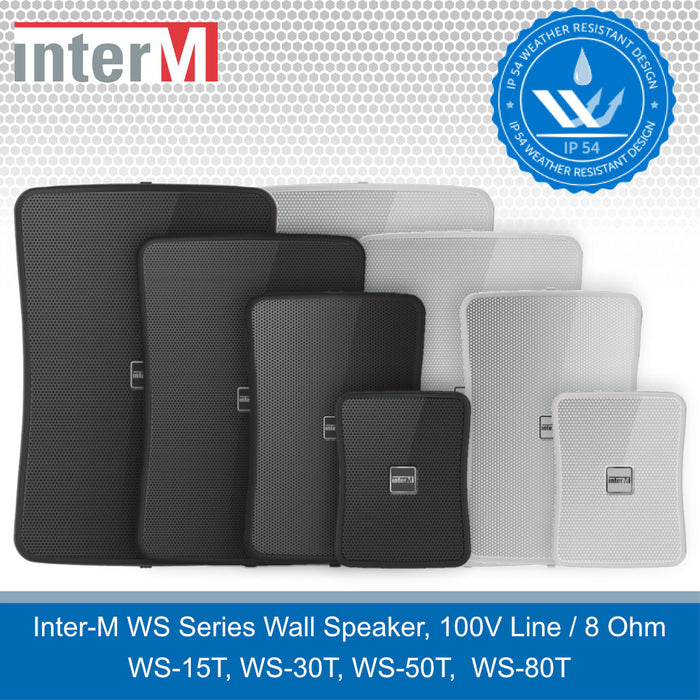

The Inter-M WS Series is composed of 4 models of different sizes and output ranges to suit various purposes. Sizes range from 2.5", 4", 5" and 6.5" with outputs of 15W, 30W, 50W & 80W. All of the WS Series speakers are available in Black or White.

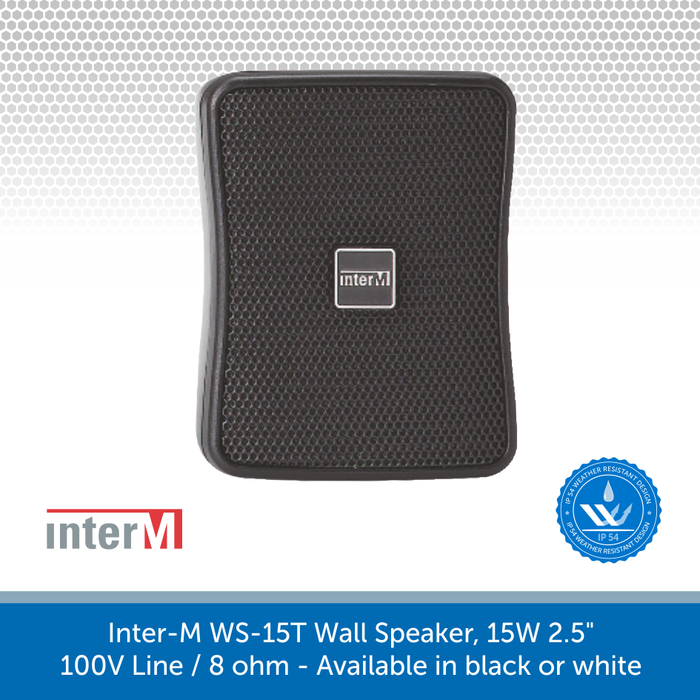

  • WS15T - Compact 2.5", 15W Full Range Loudspeaker

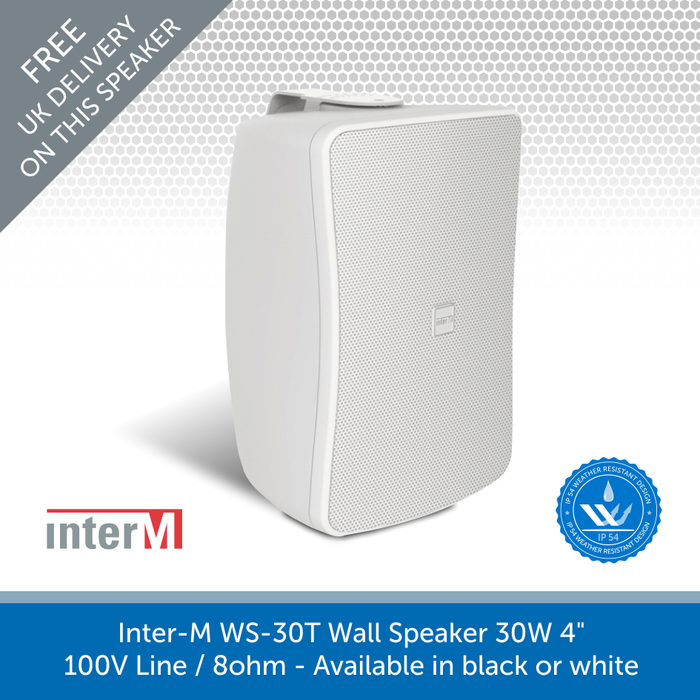

  • WS30T - 4", 30W Two-Way Loudspeaker

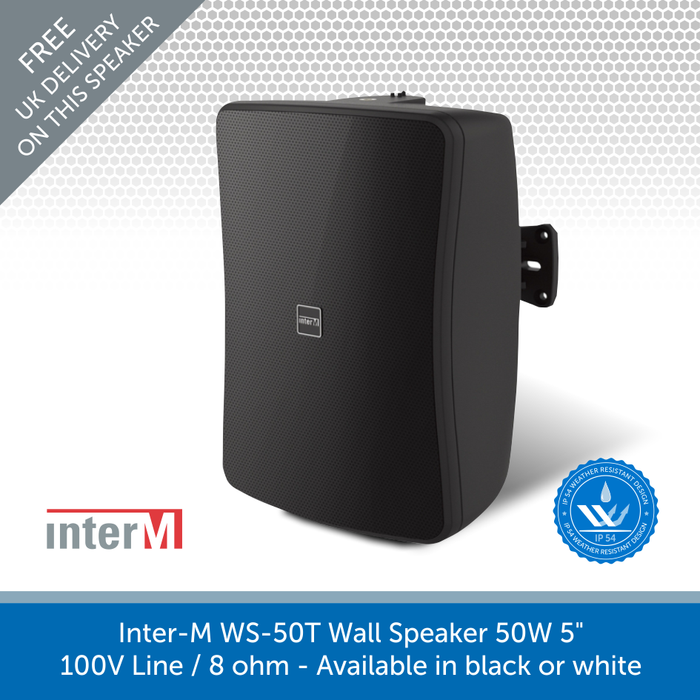

  • WS50T - 5", 50W Two-Way Loudspeaker

  • WS80T - 6.5", 80W Two-Way Loudspeaker

The Series has been applied with a newly developed Full-Range unit, HF driver and LF driver unit to provide high-power clear sound without distortion.

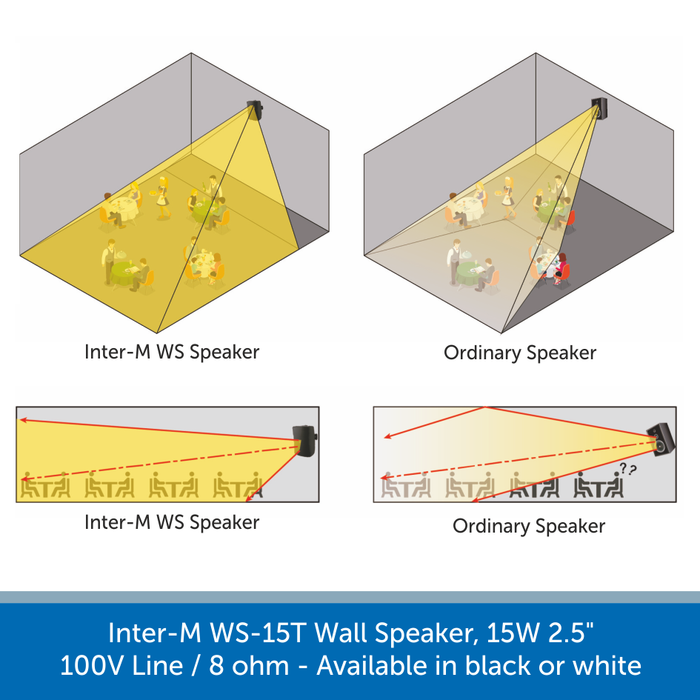

Inter-M WS Speaker Dispersion and Distance. 2-way asymmetric horn technology for an optimised sound system.

Inter-M WS-15T Speaker Dispersion and Distance

The Inter-M WS Series Loudspeakers are IP54 Rated

The Inter-M WS Series Loudspeakers are IP54 Rated so can be installed both indoors and outdoors.

 IP 54 weather resistant design

If you require any further assistance regarding our 100V Line range just contact us on 02476 369890 and one of our experts will be happy to help. Or use our Request a Call Back page for a FREE no obligation system design & consultation service.

View the Inter-M range of products HERE

See SPECIFICATION tab for technical specs

IP ratings explained for outdoor background audio speakers

SPECS

Inter-M WS15T Loudspeaker Specifications

  • Type: 1 way passive
  • Frequency Range: (-10 dB) 110Hz ~ 20kHz
  • Component: 4"
  • Power Rating Continuous (AES Std): 15W, Program: 30W, Peak: 60W
  • Sensitivity: (1 m/1 W) 84dB
  • Maximum SPL: (Peak) 102dB
  • Nominal Coverage (1kHz): 90°
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 2/4/8/15
  • Low-Frequency Transducer: Paper Cone with impregnation
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating

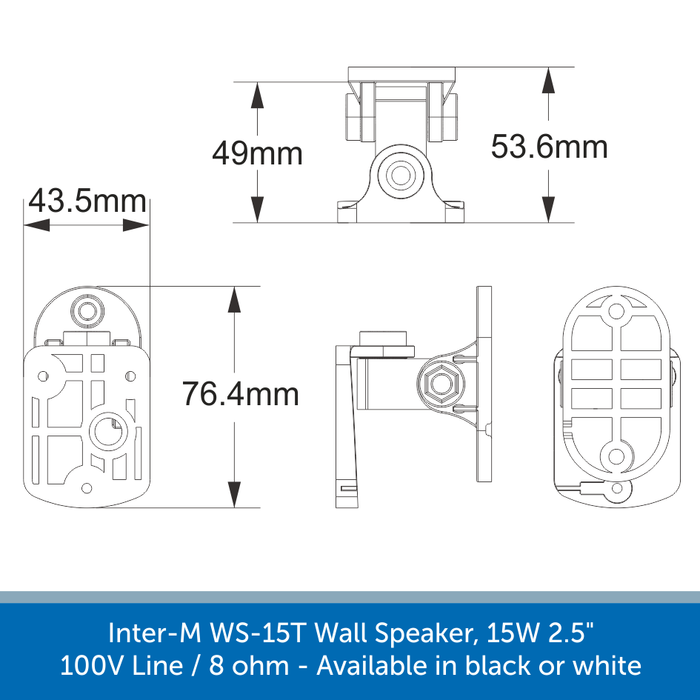

  • Mounting Hardware: KBKT15
  • Colour: Black / White

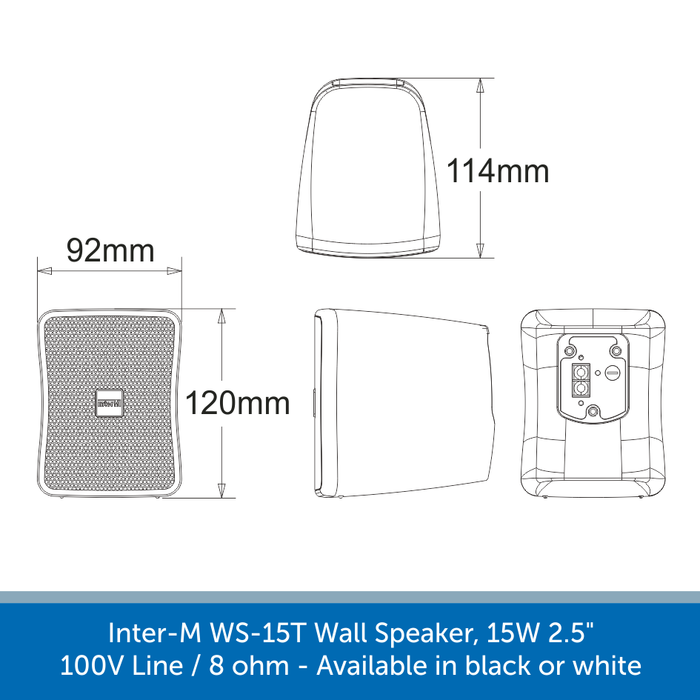

  • Dimensions: 120(H) x 92(W) x 114(D) mm
  • Weight (Gross): 1.17kg

Inter-M WS30T Loudspeaker Specifications

  • Type: 2 way passive
  • Frequency Range: (-10 dB) 100Hz ~ 20kHz
  • Component LF: 4 inch / HF: VC 13mm
  • Power Rating Continuous (AES Std): 30W, Program: 60W, Peak: 120W
  • Sensitivity: (1 m/1 W) 85dB
  • Maximum SPL: (Peak) 106dB
  • Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage: Far Field 60°, Near Field 120°, Vertical Coverage: upward +20°, downward -40° (On Axis)
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 1.9/3.8/7.5/15/30W
  • Low-Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
  • High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating
  • Mounting Hardware: UBKT30 / KBKT30
  • Colour: Black / White
  • Dimensions: 210(H) x 139(W) x 129(D) mm
  • Weight (Gross): 2.24kg

Inter-M WS50T Loudspeaker Specifications

  • Type: 2 way passive
  • Frequency Range: (-10 dB) 100Hz ~ 20kHz
  • Component LF: 5 inch / HF: VC 13mm
  • Power Rating Continuous (AES Std): 50W, Program: 100W, Peak: 200W
  • Sensitivity: (1 m/1 W) 87dB
  • Maximum SPL: (Peak) 110dB
  • Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage : Far Field 60°, Near Field 120°, Vertical Coverage : upward +20°, downward -40° (On Axis)
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 3.3/6.5/13/25/3.3W
  • Low Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
  • High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating
  • Mounting Hardware: UBKT30 / KBKT30
  • Colour: Black / White
  • Dimensions: 250(H) x 173(W) x 150(D) mm
  • Weight (Gross): 3.08kg

Inter-M WS80T Loudspeaker Specifications

  • Type: 2 way passive
  • Frequency Range: (-10 dB) 100Hz ~ 20kHz
  • Component LF: 6.5 inch / HF: VC 13mm
  • Power Rating Continuous (AES Std): 80W, Program: 160W, Peak: 320W
  • Sensitivity: (1 m/1 W) 90dB
  • Maximum SPL: (Peak) 115dB
  • Nominal Coverage: (1 kHz) Asymmetric Horn, Horizontal Coverage : Far Field 60°, Near Field 120°, Vertical Coverage : upward +20°, downward -40° (On Axis)
  • Nominal Impedance: (THRU setting) 8Ω
  • 100v Power Tappings: 5/10/20/40W
  • Low Frequency Transducer: Polypropylene Cone (PP cone) High stiffness compare to paper cone, low distortion, flat frequency response, low vibration mode than paper cone
  • High Frequency: Transducer Polyethyleneimine (PEI semidome) High frequency extend with diffuser
  • Enclosure Material: ABS RESIN
  • Connectors: Screw terminal 2P
  • Agency Rating: ROHS-compliant
  • Weather Resistant: IP54 rating
  • Mounting Hardware: UBKT80 / KBKT30
  • Colour: Black / White
  • Dimensions: 311(H) x 210(W) x 169(D) mm
  • Weight (Gross): 4.65kg
DOWNLOADS

Inter-M WS Series Loudspeakers - PDF Download File

Download the WS Series Spec Sheet Here
