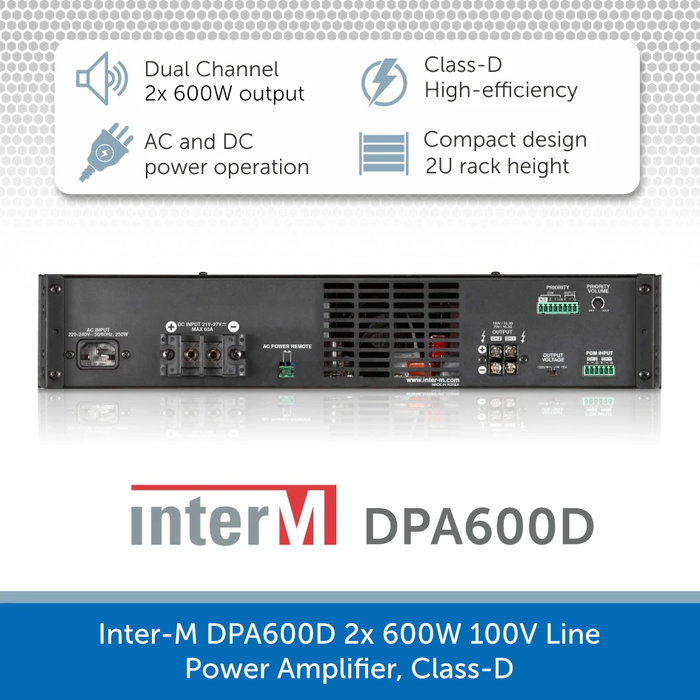

Inter-M DPA600D 2x 600W 100V Line Power Amplifier, Class-D - for professional PA, AV & background music installations
The Inter-M DPA600D is a dual channel (2x 600W) Class-D 100V Line Power Amplifier perfect for professional PA, AV and background music installations.
This high-quality power amplifier from Inter-M is the ideal amplifier for large open spaces running an array of loudspeakers to two different zones/areas such as warehouses, factories, supermarkets, retails stores and exhibition halls etc.
Thanks to Class-D amplification this 2 channel power amp is super efficient (up to 90% more efficient compared to average amplifiers) and runs at extremely low temperatures. Not only does it run smooth, but the DPA600D is also extremely light and is housed in a discreet, compact 2U casing great for installation into a 19" rack cabinet or case.
The DPA600D also has an override on the input signal for a connection of a fire alarm system. When the fire alarm sounds, the sound system will be muted.
The new DPA Class-D Amplifier range from Inter-M is available in 1, 2, 3 and 4 channel versions, with power output options of 300W, 600W, 900W and 1200W per channel.
Inter-M DPA300D 2x 600W Power Amplifier Key Features
Dual channel, 2x 600W output
Class-D High-efficiency, high power amplifier
Only 2U rack height
AC and DC power operation
Switch Mode power supply
Priority Function activated by voltage-free contact closure
Remote Power ON/OFF Control via control input
SPECS & DOWNLOADS
Inter-M DPA600D 2x 600W Power Amplifier Specifications
- Rated Output Power: 2 x 600W @ 100v/70v line
- Input Sensitivity: 1v/10kΩ balanced
- THD Max Output Power: 1%
- S/N: 95dB
- Frequency Response: 30Hz ~ 20KHz
- Operating Temperature: -10°C - +40°C
- Operating Power: 220~240VAC 50/60Hz, DC 24V
- Dimensions: 482(W) x 88(H) x 450(D) mm
- Weight (Net): 12kg
- Weight (Gross): 13.75kg
