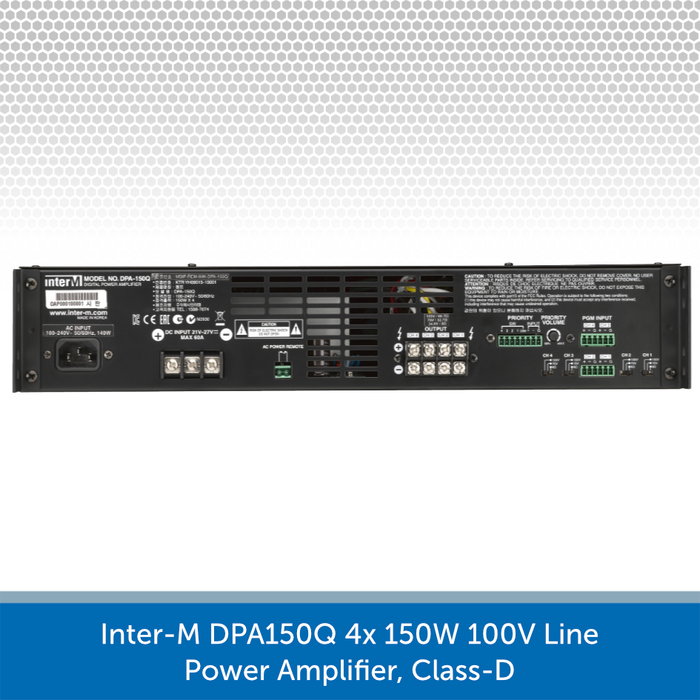

Inter-M DPA150Q 4x 150W 100V Line Power Amplifier, Class-D
The Inter-M DPA150Q is a quad channel (4x 150W) Class-D 100V Line Power Amplifier perfect for professional PA, AV and background music installations.
This high-quality power amplifier from Inter-M is the ideal amplifier for large open spaces running an array of loudspeakers to two different zones/areas such as warehouses, factories, supermarkets, retails stores and exhibition halls etc.
Thanks to Class-D amplification this 4 channel power amp is super efficient (up to 90% more efficient compared to average amplifiers) and runs at extremely low temperatures. Not only does it run smooth, but the DPA150Q is also extremely light and is housed in a discreet, compact 2U casing great for installation into a 19" rack cabinet or case.
The DPA150Q also has an override on the input signal for a connection of a fire alarm system. When the fire alarm sounds, the sound system will be muted.
The new DPA Class-D Amplifier range from Inter-M is available in 1, 2, 3 and 4 channel versions, with power output options of 300W, 600W, 900W and 1200W per channel.
As a Premier Partner of Inter-M products we are proud to bring you a 5 Year Limited Warranty* on all amplifiers (3 years Parts/Labour & 2 Additional years for parts) and a 3 Year Warranty* on all speakers. All repairs take place in the UK.
Inter-M DPA150Q 4x 150W Power Amplifier Key Features
Quad channel, 4x 150W output
Class-D High-efficiency, high power amplifier
Only 2U rack height
AC and DC power operation
Switch Mode power supply
Priority Function activated by voltage-free contact closure
Remote Power ON/OFF Control via control input
SPECS & DOWNLOADS
Inter-M DPA150Q 4x 150W Power Amplifier Specifications
Rated Output Power 4 x 150W @ 100v/70v line, 4 x 150W @ 8Ω
Frequency Response 50Hz ~ 20KHz
Input Sensitivity 1v/10kΩ balanced
THD Less than 0.2%
SNR > 100dB
Operating Temperature 10°C - +40°C
Power Source 220~240v AC, 50/60Hz, 24v DC
Dimensions 482(W) x 88(H) x 397(D) mm
Weight (Net) 6.80kg
Weight (Gross) 7.70kg
