Foreground PA System with 50W Music Horn Speakers - 6, 8 or 12 Speakers

£984.00 (inc. VAT)
SKU FORE-PA-6
Amount of Speakers

A high-quality foreground PA speaker system designed for public address and music playback in noisy environments or large open areas such as warehouses & factories, sports grounds & equestrian centres, etc.

Supplied with a 350W 100V Slave Amplifier, 50W Music Horn Speakers, 9-Channel Audio Mixer, and 100m of heavy duty speaker cable.

This foreground factory music system is designed for environments that require powerful speakers to output over noisy machinery, vehicles, or open environments/spaces. The 50W horn speakers have a wide frequency range and a high SPL making them excellent for music playback.

Our professional foreground PA system is ideal for fixed public address and/or music installations both indoors or outdoors. The complete PA system offers maximum reliability and premium sound quality great for continuous duty applications that require sound for long periods of time.

350W 100V Slave Amplifier Key Features

This 350W 100V Slave Amplifier is designed for installations that required premium quality, reliable audio playback for long periods of use i.e. warehouses, factories, sports facilities, and events, etc.

Features temperature, clip, and short circuit protection. Also, fan cooled to reduce any overheating.

The 350W PA amplifier offers great flexibility as it can be powered by 24V DC or 240V AC power supply.

  • 70V, 100V and 4-16 Ohm loudspeaker outputs
  • Balanced XLR line input
  • Unbalanced 6.35mm jack line input
  • Balanced XLR line output
  • Unbalanced 6.35mm jack line output
  • Temperature, clip and short circuit protection
  • Power, signal, clip, protection and temperature LEDs
  • GND/lift switch to prevent ground loop hum
  • Fan cooled
  • 24V DC and 240V AC inputs for maximum flexibility

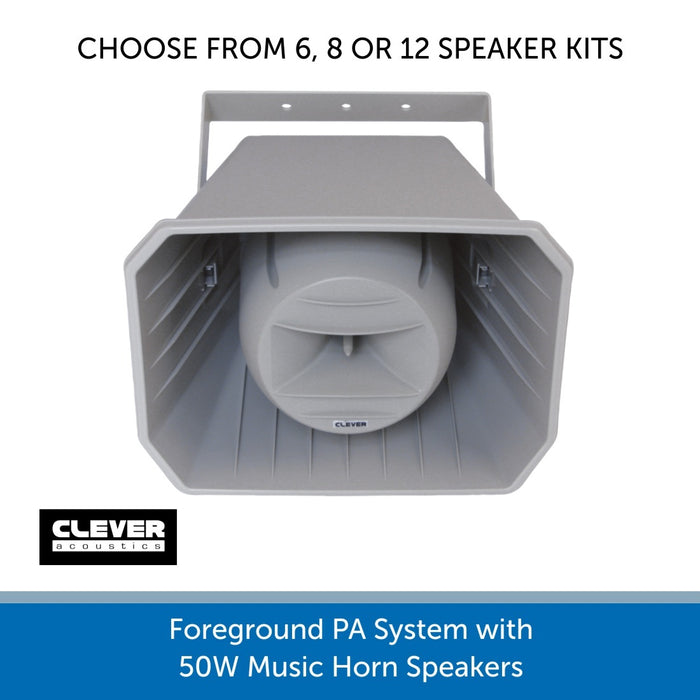

50W Music Horn Speaker Key Features

These 50W Music Horn Speakers have an extremely wide dispersion, and project sound across a large area, perfect for big open spaces. They have multiple 100V power tappings (50W, 25W, 12.5W, 9W, 4.5W & 3.5W) great for balancing each speaker to the location they are installed into. For example, you may want the speaker located near the office quiter than the speakers in the main warehouse area.

The high-quality music horn speakers feature a weather resistant ABS enclosure perfect for installations both indoors or outdoors. They are also supplied with an adjustable stainless steel mounting bracket making them ideal for use all-year-round.

  • 3 year warranty
  • Internal 100V/70V transformer
  • Extra wide sound dispersion angle: 100 x 80°
  • Ideal for voice announcement and background music
  • Multiple power taps and low impedance
  • Wide frequency response from 90Hz to 20kHz
  • ABS enclosure
  • Supplied with adjustable mounting bracket
  • Weather resistant horn loudspeakers for outdoor applications

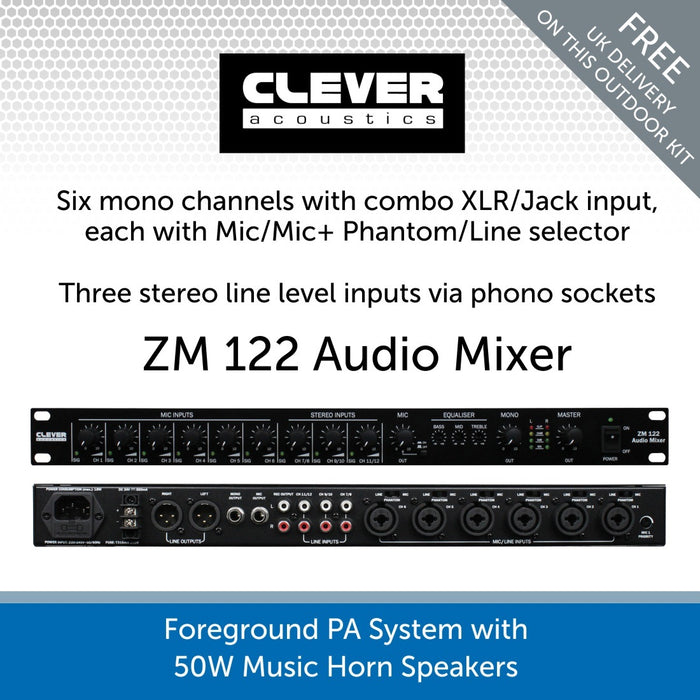

Rack Mount Audio Mixer Key Features

This rack-mountable audio mixer is ideal for public address and background music applications where multiple inputs are required. Offering a user-friendly, simple control surface while retaining a number of features for complex audio systems.

The audio rack mixer has 9 input channels, each with adjustable volume controls. Six of the channels are microphone inputs with XLR 1/4” combo sockets, the other three are stereo line level inputs for direct connection of external media devices such as a smartphone, tablet, laptop, or CD player, etc.

Featuring a 3-band EQ, mono out and microphone out all in a 1U 19” rack mount unit.

  • Six mono channels with combo XLR/Jack input, each with Mic/Mic+ Phantom/Line selector
  • Three stereo line level inputs via phono sockets
  • Low distortion microphone pre-amplifiers with high dynamic range
  • CH level control, signal LED to indicate input signal
  • Microphone 1 features adjustable priority override
  • Input level control with input signal LED
  • Stereo line output via balanced XLRs
  • Mono output via 6.35mm (1/4”) unbalanced jack with volume control
  • Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control
  • Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control
  • Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control and on/off switch
  • Stereo record output via unbalanced phono sockets
  • 3-band EQ for low, mid, high
  • Master volume control
  • 4-segment LED signal level meters
  • AC 220V-240V and DC 24V operating voltage
  • 1U 19” rackmount chassis with brushed aluminum front panel



Double Insulated Speaker Cable

All of out outdoor PA systems are supplied with a 100m drum of double insulated outdoor speaker cable tried and tested for the job.



SPECIFICATION

350W 100V Slave Amplifier Specifications

  • Power output: 350Wrms / 375Wpeak
  • Speaker output: 70V, 100V and 4-16 Ohms
  • Input sensitivity: 775mV (0dB)
  • Frequency response: 50Hz-18kHz
  • Power supply: 240V AC 50Hz / 24V DC
  • Power consumption: 500W
  • Dimensions (H x W x D): 132 x 484 x 408mm
  • Weight: 14.5kg

50W 100V Music Horn Speakers Specifications

  • Input: 70V, 100V, 8?
  • Power taps @ 100V: 3.5W, 4.5W, 9W, 12.5W, 25W, 50W
  • Power taps @ 70V: 1.75W, 2.25W, 4.5W,6.25W, 12.5W, 25W
  • Impedance: 8?, 2.9K?, 2.2K?, 1.1K?, 800?, 400?, 200?
  • Power (RMS): 50W @ 8?
  • Sensitivity(1W/1m): 99dB (±3dB)
  • Maximum SPL (Rated W/1m): 116dB
  • Frequency response: 90Hz-20kHz
  • Drivers: 6" LF, 3" HF
  • Connections: Internal terminal block
  • Dimensions: 255 x 360 x 315mm
  • Weight: 4kg
  • IP rating: IP66

        Rack Mount Audio Mixer Specifications

        • Power supply: 220-240V~50/60Hz AC or 24V DC
        • Power consumption: 35W
        • Dimensions: 44 x 484 x 238mm
        • Weight: 3.9kg

        Double Insulated Speaker Cable Specifications

        • CSA: 2 x 1.15mm²
        • Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
        • Dimensions: 7.8mmØ
        • Current: 15A max.
        • Sheath: Black
        • Length: 100m
