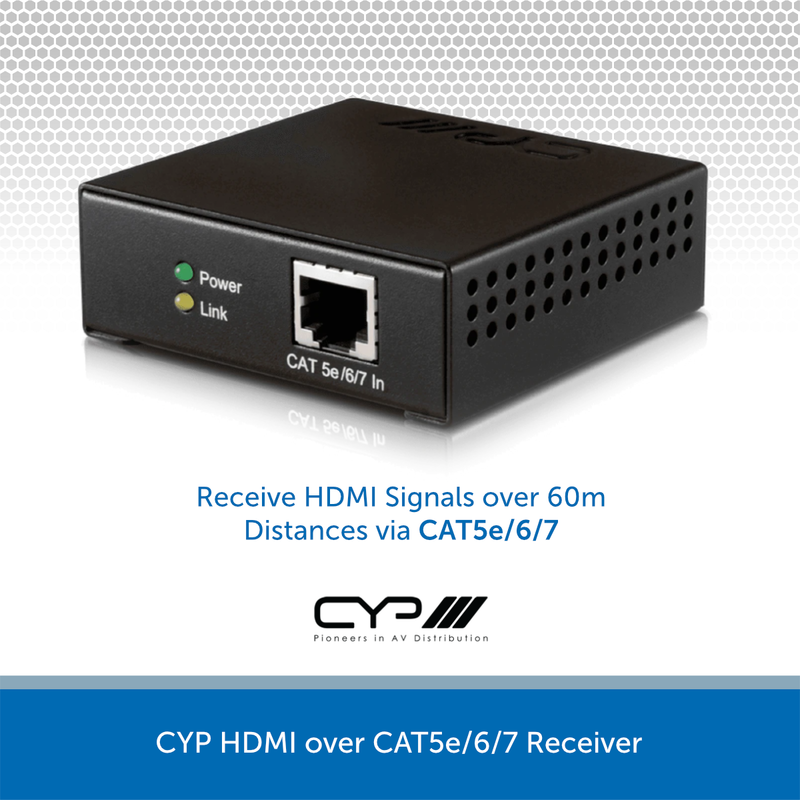

CYP HDBaseT LITE - HDMI over CAT5e/6/7 Receiver PU-515PL-RX

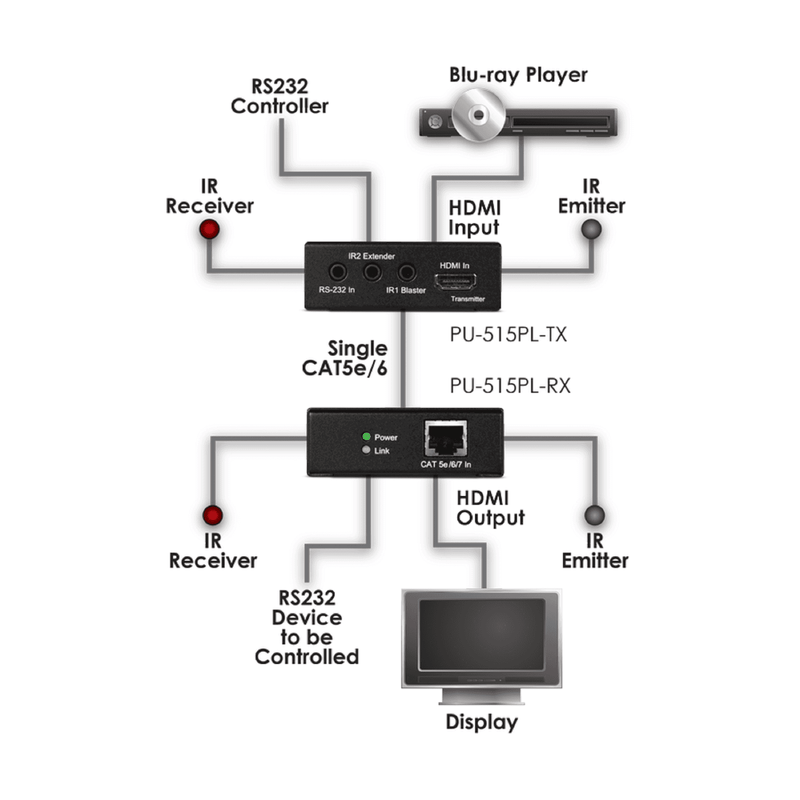

The PU-515PL-RX receiver is used to convert the signal produced by the PU-515PL-TX into an uncompressed HDMI signal, which has been sent via a single CAT5e/6/7 cable.
This receiver is to be used with the CYP PU-515PL-TX LITE Transmitter.
The CYP PU-515PL-RX has the added features of RS-232, 2-way IR control, and Power over Cable (PoC) functionality over the same CAT5e/6/7 cable.
These combined HDMI and control signals can be transmitted up to lengths of 60 metres.
CYP PU-515PL-RX Key Features
HDCP 2.2 Compliant
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7
Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
Complies with HDBaseT™- Lite specifications
SPECS & DOWNLOADS
- Inputs: 1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

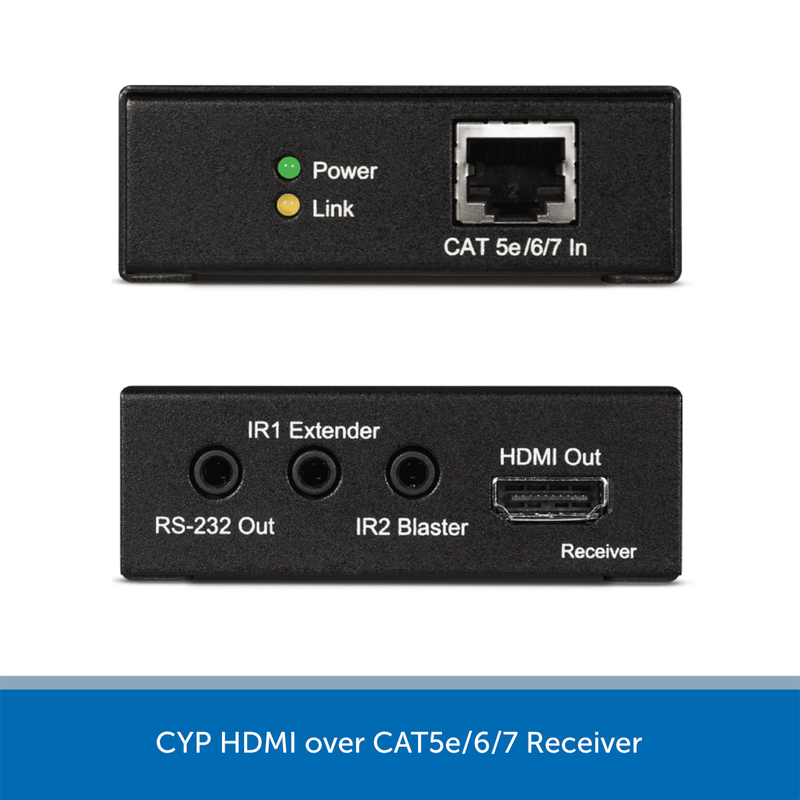

- Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter], 1x 3.5mm Stereo mini-jack [1x RS-232]
- Dimensions: 75mm [W] x 72mm [D] x 24mm [H]
- Net Weight: 440g
- Gross Weight: 510g
