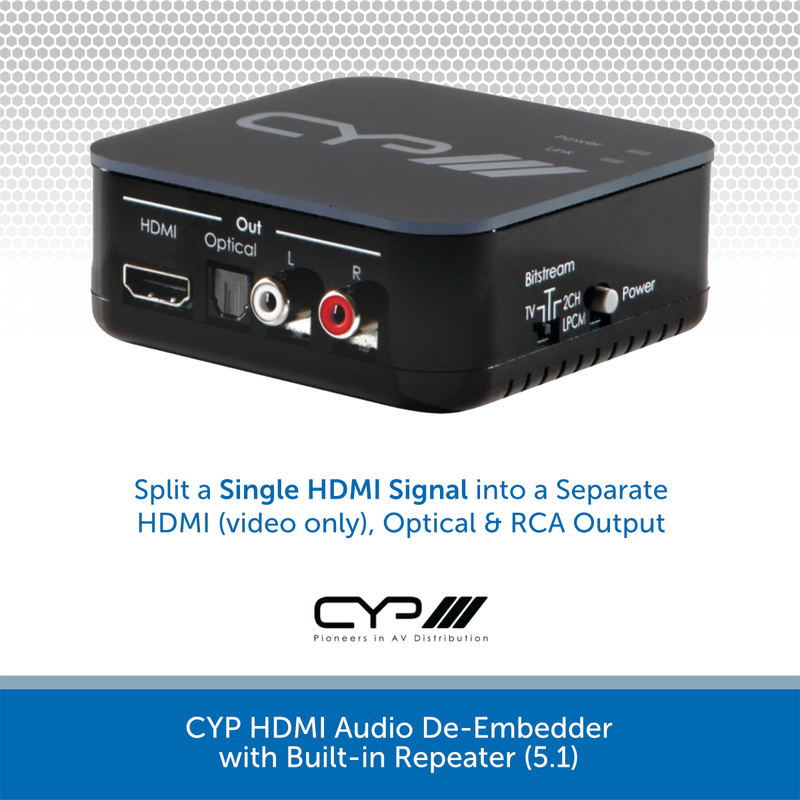

CYP HDMI Audio De-Embedder with Built-in Repeater (5.1)

by CYP
£119.99 (inc. VAT)
SKU AU-11CD
DETAILS

The AU-11CD from CYP Europe is an advanced HDMI Repeater with integrated Audio de-embedding, up to 5.1.

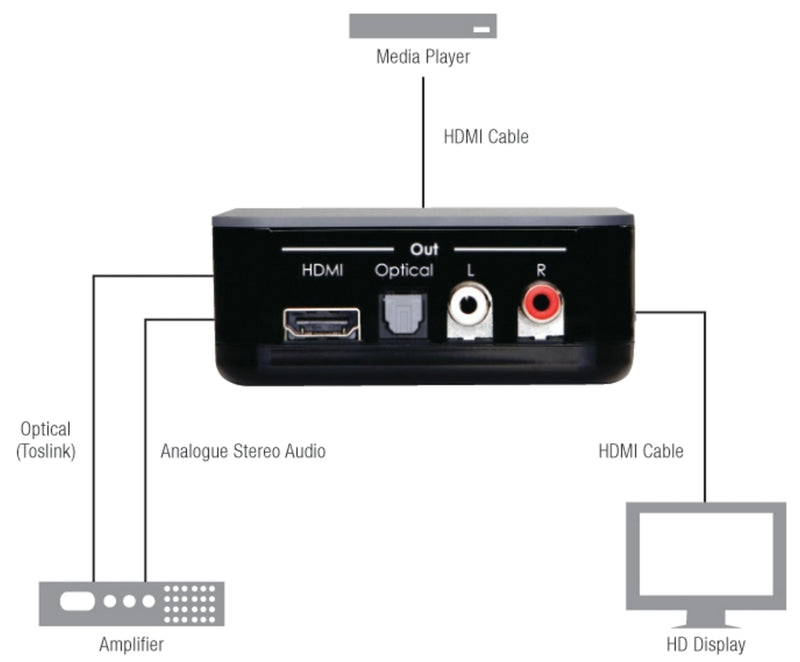

By connecting the CYP AU11CD Repeater device between your HDMI source and output display, the HDMI signal can be amplified for greater distance transmission, whilst the audio signal can be split out to optical or analogue (RCA) outputs for connection to an external amplifier (such as 51. surround sound system).



CYP AU-11CD Key Features

  • Compliant with v1.3 HDMI, HDCP 1.2 and DVI 1.0

  • Supports HDMI sample rate up to 192kHz

  • Supports Optical sample rate up to 48kHz

  • Supports TMDS clock frequency rate 225MHz

  • Supports high-bit-rate (HBR) audio

  • Input and Output HDMI cable length can run up to 10m at 1080p 8bit resolution

  • Low power consumption

  • Support built-in audio EDID switch of LPCM2, 5.1/7.1 or Bitstream

  • Supports 3D signals

    See SPECIFICATION tab for technical specs

    SPECS & DOWNLOADS
    • Input: 1 x HDMI
    • Output: 1 x HDMI, 1 x Optical (Toslink), 2 x Analogue Audio L/R (RCA)
    • Power: 5V/1.2A, DC (US/EU standards, CE/FCC/UL certified)
    • Dimensions: 90(W) x 35(H) x 85(D) mm
    • Weight (Net): 0.26kg
    • Weight (Gross): 0.44kg
