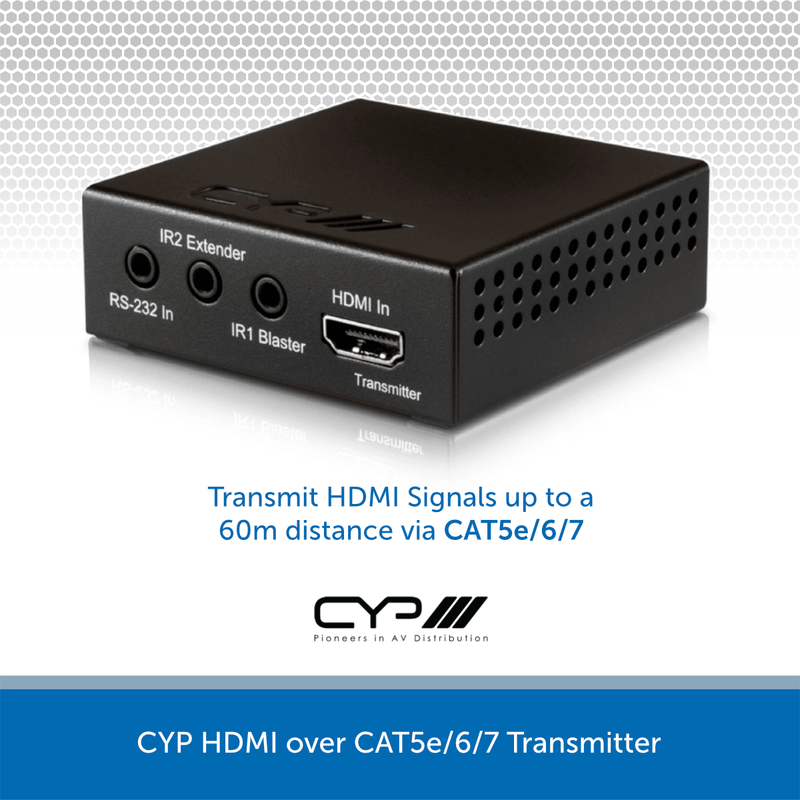

CYP HDBaseT LITE - HDMI over CAT5e/6/7 Transmitter PU-515PL-TX

by CYP
£172.00 (inc. VAT)

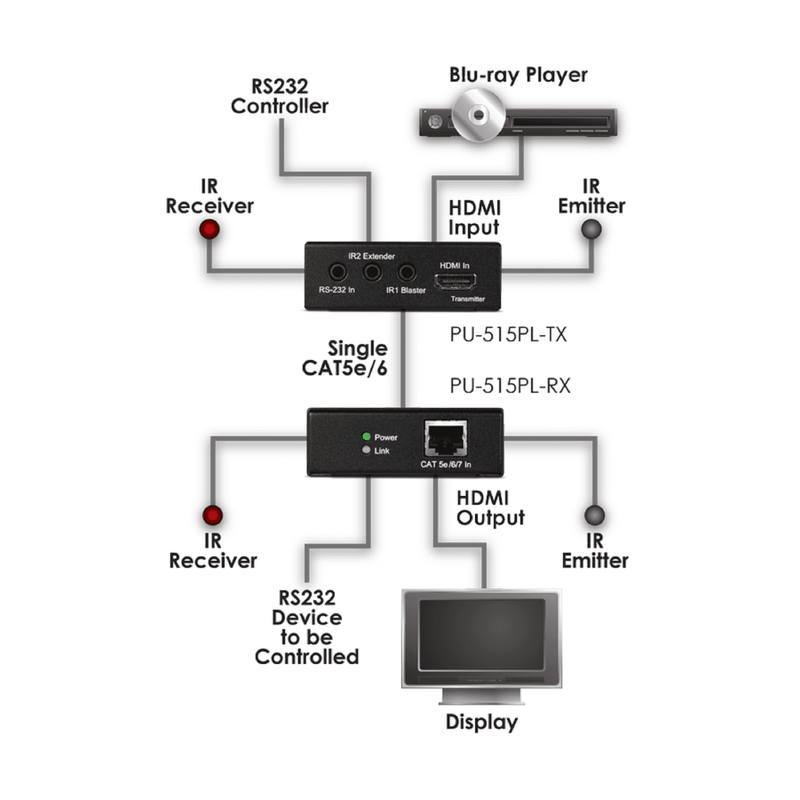

The PU-515PL-TX Transmitter allows uncompressed HDMI signals to be transmitted over a Single CAT5e/6/7 cable.

This transmitter is to be used with the CYP PU-515PL-RX LITE Receiver.

The PU-515PL-TX has the added features of RS-232, 2-way IR control, and Power over Cable (PoC) functionality over the same CAT5e/6/7 cable.

These combined HDMI and control signals can be transmitted up to lengths of 60 metres.

CYP PU-515PL-TX Key Features

  • HDCP 2.2 Compliant

  • HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant

  • Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m

  • 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7

  • Complies with HDBaseT™- Lite specifications

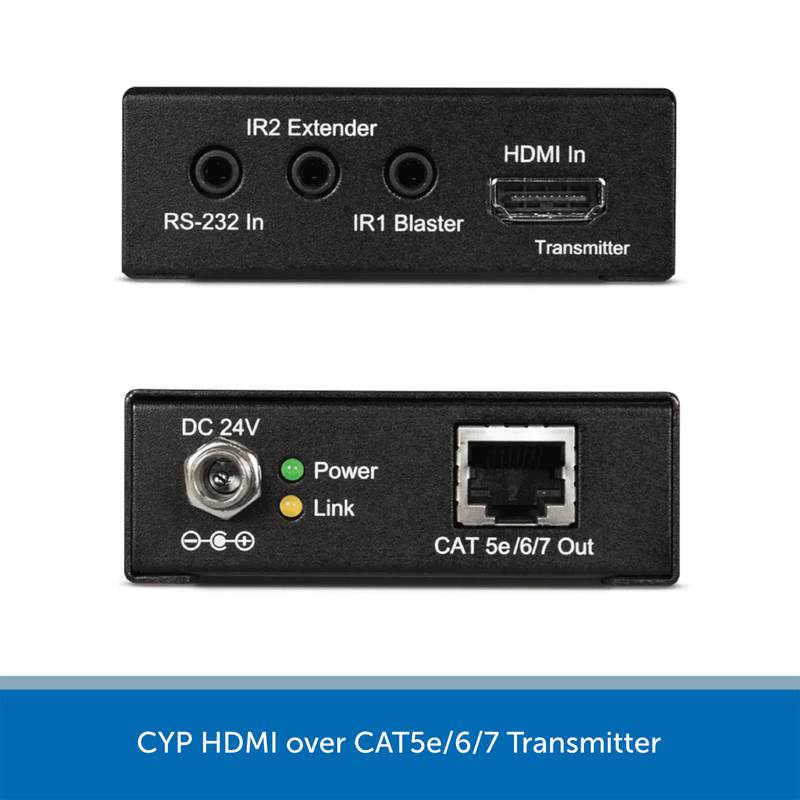

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x 3.5mm Stereo mini-jack [1x RS-232]
  • Outputs: 1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • PSU: 24V/1.25A
  • Dimensions: 75mm [W] x 72mm [D] x 24mm [H]
  • Net Weight: 440g
  • Gross Weight: 510g
