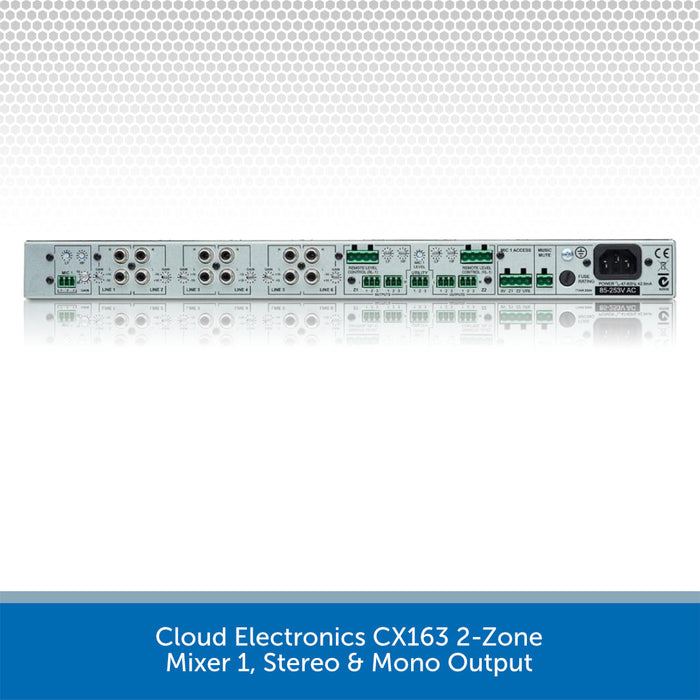

Cloud Electronics CX163 2-Zone Pre Amp Mixer, 6-Line/1-Mic Inputs, 1U

Original price £510.00 (inc. VAT) - Original price £510.00 (inc. VAT)
Original price £510.00 (inc. VAT)
£510.00 (inc. VAT)
£510.00 (inc. VAT) - £510.00 (inc. VAT)
Current price £510.00 (inc. VAT)
SKU CLOCX163

BLACK FRIDAY - Use code BF10 at checkout

Save an EXTRA 10% sitewide, including Sale items!

Link to our Cloud Wall Plate Compatibility Page
DETAILS

The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone.

The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1).

Once installed this compact 1U unit is extremely simple and convenient to operate.

Cloud Electronics CX163 Key Features

  • 2 zone stereo mixer with mono utility output
  • Both stereo zones can be configured to run as mono
  • Utility output is constant OdB
  • Utility music source is selectable via internal jumper
  • 6 stereo line inputs
  • Line 6 priority over other input sources in zone 1 only
  • Remote music mute
  • Microphone access contacts for paging to all 3 zones
  • 100Hz high pass filter on all microphone inputs
  • Two band microphone EQ
  • Remote level control in each zone using RL1
  • Front panel controls give microphone level, music source and volume
  • EQ card option

      Cloud products have a 5 year commercial warranty as standard

      SPECS & DOWNLOADS

      Cloud Electronics CX163 Specifications

        Cloud Electronics CX163 PDF Download

        Download the Product Data Sheet HERE

        ACCESSORIES
        • RL-1 Remote Music Level Control
        • XLRF1 Female XLR Input Module
        • XLRM1 Male XLR Input Module
        • BOSE Loudspeaker EQ Card
        • EQ Cards for Amina AIWX & LFiT Loudspeakers
        • PM1 Paging Microphones
        • PM4 Paging Microphone

        }
