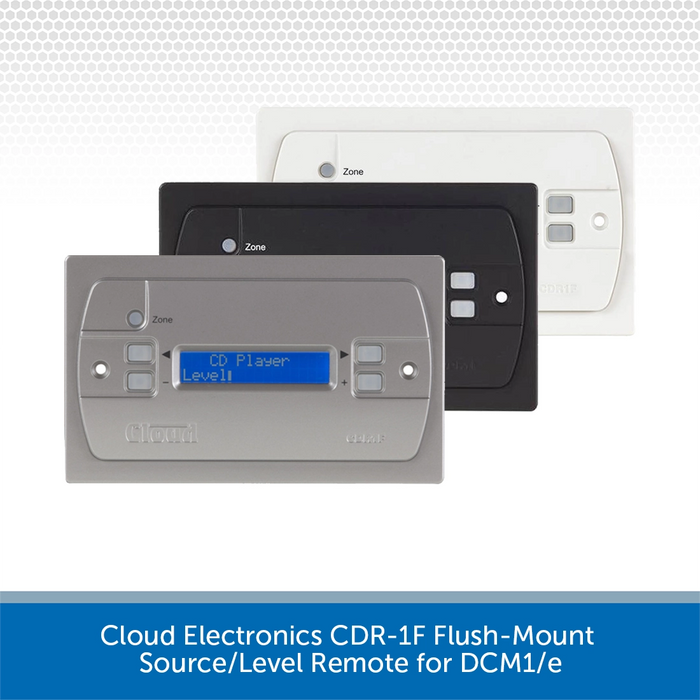

Cloud Electronics CDR-1F Flush-Mount Source/Level Remote for DCM1/e

Original price £162.00 (inc. VAT) - Original price £162.00 (inc. VAT)
Original price £162.00 (inc. VAT)
£162.00 (inc. VAT)
£162.00 (inc. VAT) - £162.00 (inc. VAT)
Current price £162.00 (inc. VAT)
SKU CLOCDR1FW

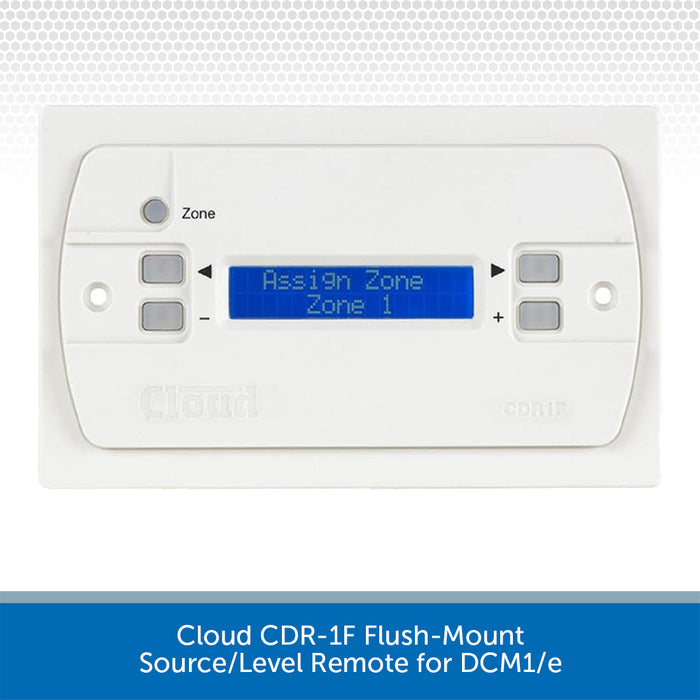

Colour: White

BLACK FRIDAY - Use code BF10 at checkout

Save an EXTRA 10% sitewide, including Sale items!

DETAILS

The CDR-1F is a remote wall control panel for the Cloud DCM-1/DCM-1e Digital Control Zone Mixer.

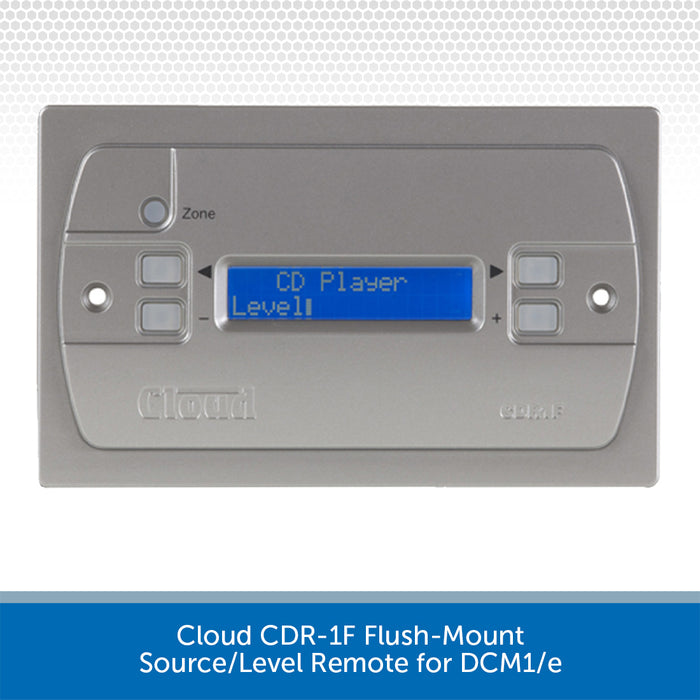

The CDR-1F is a flush-mount remote control panel for use with the Cloud DCM-1 & DCM1e Digital Control Mixer, fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one or many of the DCM-1's zones, the CDR-1F provides the user and installer with localised control of a zone.

A zone may have one CDR-1F, more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

The CDR-1F can be powered from the DCM1/e host via a single CAT-5 connection if sufficient spare current capability is available. A maximum of eight CDR-1 Series plates may be powered by this method.

Cloud Electronics CDR-1F Key Features:

  • Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
  • Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
  • Can be interconnected using a wide choice of wiring topologies
  • Choice of two mounting styles to suit installation
  • Backlit 2-row x 16 character dot matrix alphanumeric display
  • User accessible functions: Source selection, Level control, Group enable/disable
  • Engineer mode functions (password enabled): Local zone EQ adjustment

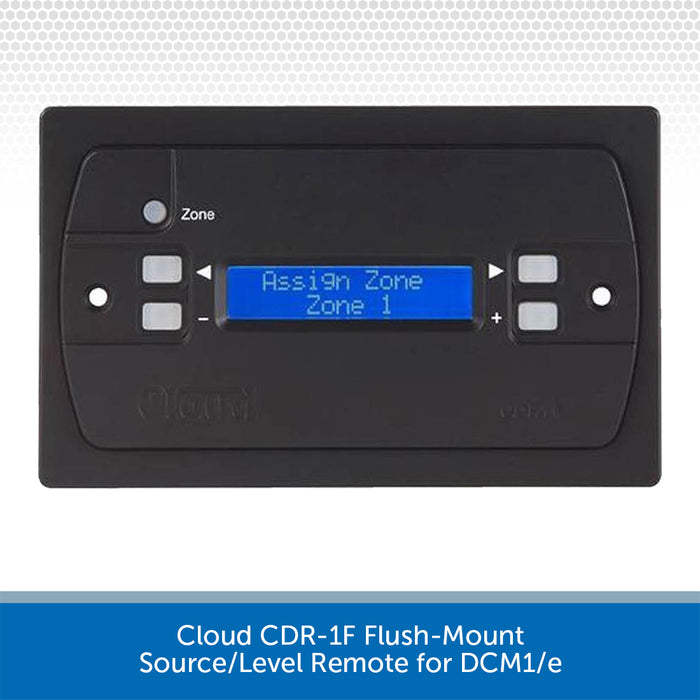

  • Installer mode (Enabled by internal jumper): Zone assignment, Password setting, Display adjustment, Inactivity time (time for which display backlight remains lit after a button is pressed)

        Cloud products have a 5 year commercial warranty as standard

        SPECS & DOWNLOADS

        Dimensions: 150mm (W) x 90mm (H) x 30.25mm (D)

        Cloud CRD-1F Spec Sheet

        }
