Clever Acoustics MH 50 50W 100V Music Horn Speaker
The Clever Acoustics MH 50 is a powerful 50W 100V Music Horn Speaker designed for public address & background music systems in large open areas such as warehouses, factories, and sports grounds, etc.
These 50W Music Horn Speakers have an extremely wide dispersion, and project sound across a large area, perfect for big open spaces. They have multiple 100V power tappings (50W, 25W, 12.5W, 9W, 4.5W & 3.5W) great for balancing each speaker to the location they are installed into. For example, you may want the speaker located near the office quieter than the speakers in the main warehouse area.

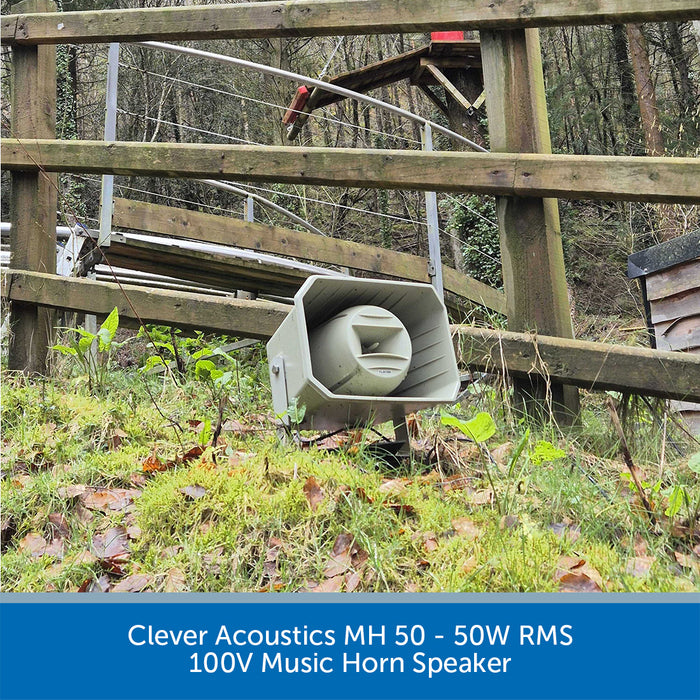

The high-quality music horn speakers feature a weather-resistant ABS enclosure perfect for installations both indoors or outdoors. They are also supplied with an adjustable stainless steel mounting bracket making them ideal for use all year round.
8Ω Positive = Red Negative = Black
100V 50W Tapping - Positive = Red / Negative = Yellow
100V 25W Tapping - Positive = Yellow / Negative = Green
100V 12.5w Tapping - Positive = Green / Negative = White
100V 9W Tapping - Positive = Red / Negative = Green
100V 4.5W Tapping - Positive = Yellow / Negative = White
100V 3.5W Tapping - Positive = Red / Negative = White
Clever Acoustics MH 50 Key Features
- 3-year warranty
- Internal 100V/70V transformer
- Extra-wide sound dispersion angle: 100 x 80°
- Ideal for voice announcement and background music
- Multiple power taps and low impedance
- Wide frequency response from 90Hz to 20kHz
- ABS enclosure

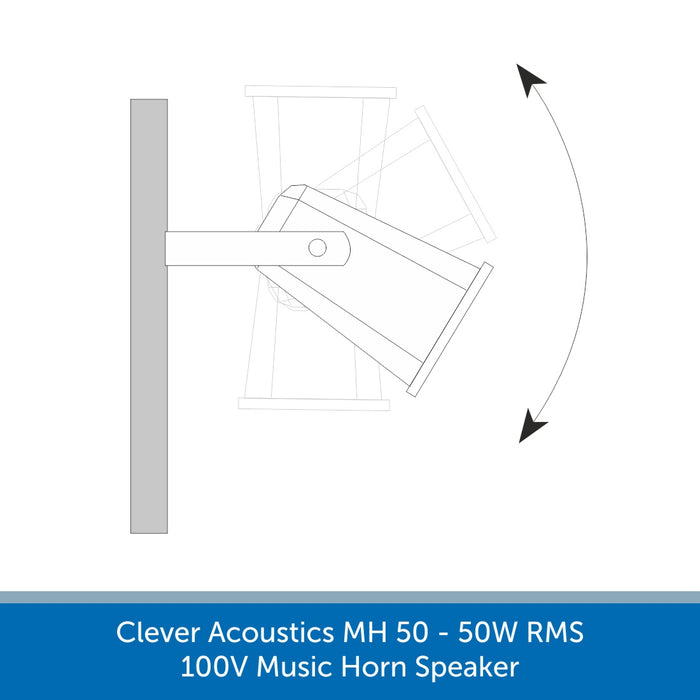

- Supplied with adjustable mounting bracket
- Weather resistant horn loudspeakers for outdoor applications
SPECS & DOWNLOADS
Clever Acoustics MH 50 Specifications
- Input: 70V, 100V, 8?
- Power taps @ 100V: 3.5W, 4.5W, 9W, 12.5W, 25W, 50W
- Power taps @ 70V: 1.75W, 2.25W, 4.5W,6.25W, 12.5W, 25W
- Impedance: 8?, 2.9K?, 2.2K?, 1.1K?, 800?, 400?, 200?
- Power (RMS): 50W @ 8?
- Sensitivity(1W/1m): 99dB (±3dB)
- Maximum SPL (Rated W/1m): 116dB
- Frequency response: 90Hz-20kHz
- Drivers: 6" LF, 3" HF
- Connections: Internal terminal block
- Dimensions: 255 x 360 x 315mm
- Weight: 4kg
- IP rating: IP66
