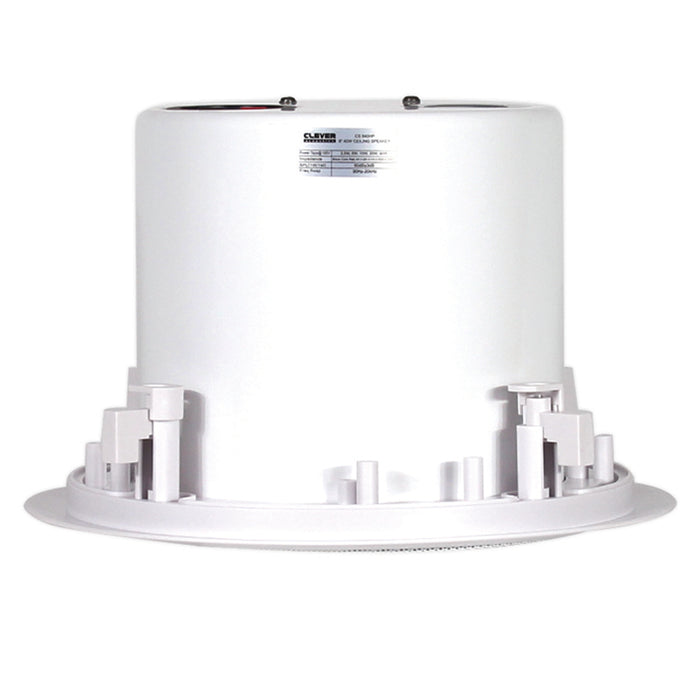

Clever Acoustics CS 840HP 8" 40W 100V Ceiling Speaker
The Clever Acoustics CS 840HP is an 8" 100V Line ceiling speaker with extended frequency response, ideal for playback of music and speech reinforcement where audio quality is important.
The CS 840HP features a high-powered 40Wrms output and utilises a coaxial design complete with an HF tweeter for crystal-clear high tones plus metal enclosure for enhanced low frequencies.
These Clever Acoustics ceiling loudspeakers feature flush-mount dog-ear retaining clips and an installation template is supplied making them quick and easy to install.
The Clever Acoustics CS 840HP ceiling speakers are suitable for 100V Line or low impedance operation.
Supplied with a 3-year manufacturers warranty.
Clever Acoustics CS 840HP Key Features
- 3 year warranty
- 2-way low impedance loudspeakers
- Robust black housing
- Supplied with adjustable mounting brackets
- Supplied in pairs
- Polypropylene LF
- Mylar HF
SPECS & DOWNLOADS
Clever Acoustics CS 840HP Specifications
- Input: 100V, 8Ω

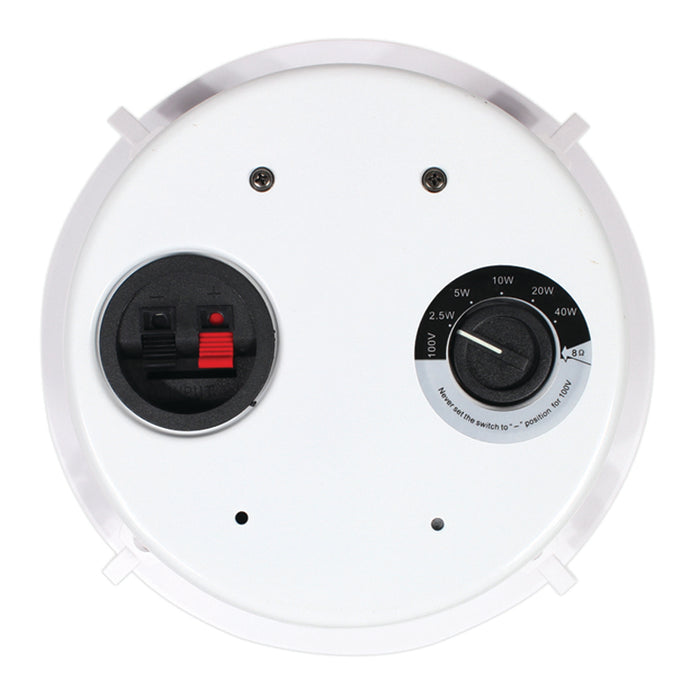

- Power taps @ 100V: 2.5W, 5W, 10W, 20W, 40W
- Impedance: 2KΩ, 1KΩ, 500Ω, 250Ω, 125Ω
- Power (RMS): 40W @ 8Ω
- Sensitivity (1W/1m): 90dB (±3dB)
- Maximum SPL (Rated W/1m): 106dB
- Frequency response: 90Hz-20kHz
- Drivers: 8" LF, 1.5" HF
- Connections: 2 x spring terminals
- Cutout: 245mmØ
- Mounting depth: 180mm
- Dimensions: 195 x 275mmØ
- Weight: 2.5kg
