Clever Acoustics CS 630HP 6" 30W 100V Ceiling Speaker

£39.00 (inc. VAT)
SKU CRSP12

DETAILS

The Clever Acoustics CS 630HP is a 6" 100V Line ceiling speaker designed for background music & public address applications in restaurants, bars, pubs, and commercial environments.

The CS 630HP features a high-powered 30Wrms output and utilises a coaxial design complete with an HF tweeter for crystal-clear high tones plus metal enclosure for enhanced low frequencies.

These Clever Acoustics ceiling loudspeakers feature flush-mount dog-ear retaining clips and an installation template is supplied making them quick and easy to install.

The Clever Acoustics CS 630HP ceiling speakers are suitable for 100V Line or low impedance operation.

Supplied with a 3-year manufacturers warranty.

Clever Acoustics CS 630HP Key Features

  • 3 year warranty
  • 2-way low impedance loudspeakers
  • Robust black housing
  • Supplied with adjustable mounting brackets
  • Supplied in pairs
  • Polypropylene LF
  • Mylar HF



    SPECS & DOWNLOADS

    Clever Acoustics CS 630HP Specifications

    • Input: 100V, 8Ω

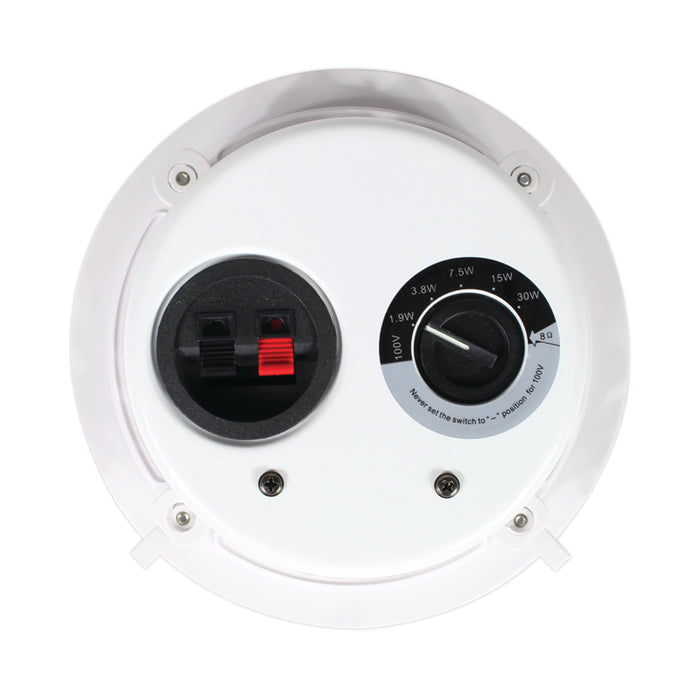

    • Power taps @ 100V: 1.9W, 3.8W, 7.5W, 15W, 30W
    • Impedance: 2.6KΩ, 1.3KΩ, 670Ω, 330Ω, 165Ω
    • Power (RMS): 30W @ 8Ω
    • Sensitivity (1W/1m): 89dB (±3dB)
    • Maximum SPL (Rated W/1m): 104dB
    • Frequency response: 95Hz-20kHz
    • Drivers: 6" LF, 1.5" HF
    • Connections: 2 x spring terminals
    • Cutout: 208mmØ
    • Mounting depth: 140mm
    • Dimensions: 165 x 233mmØ
    • Weight: 1.6kg

                  Clever Acoustics CS 630HP PDF Downloads

                  Download the User Manual Here
