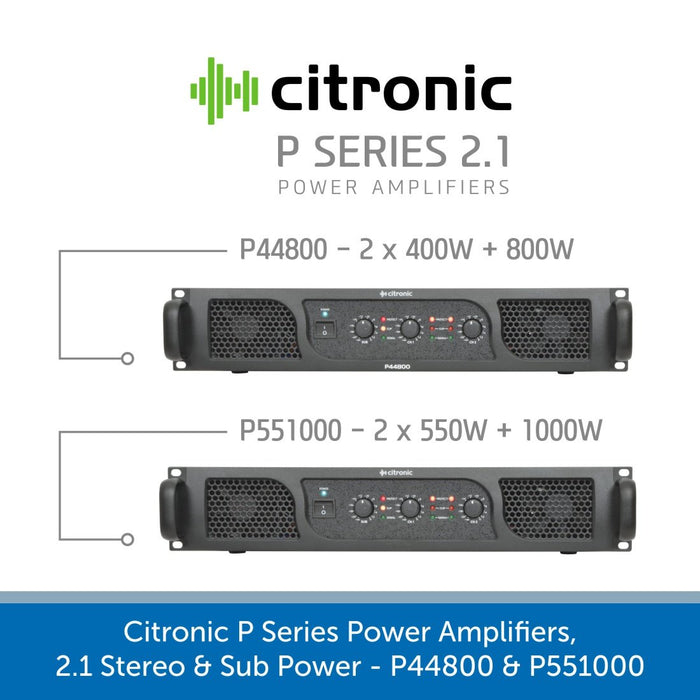

Citronic P44800 Power Amplifier, 2.1 Stereo & Sub Power, 2 x 400W + 800W
DETAILS
The Citronic P44800 Power Amplifier is perfect for medium to large-scale PA applications that are wanting to run mid-top cabinet speakers and a high-powered subwoofer from a single amplifier.
The P44800 amplifiers is a cost-effective and efficient solution for bi-amplified PA sound systems in environments such as bars, clubs, gyms, dance studios, exhibitions and live music venues etc.
The 3-way power amplifier is designed to offer high-quality, dependable service for mobile and installed audio systems.
Citronic P44800 2.1 Power Amplifier Key Features
-
Perfect for medium to large PA applications
-
Dedicated subwoofer output with Lowcut & Filter
-
Gain control for each channel and sub
-
19" Rack-mountable (ears supplied)
Powerful Output
The Citronic P44800 has a high power output of 2 x 250W + 500W (sub) @ 8 Ohms, and 2 x 400W + 800W (sub) @ 4 Ohms. All of the outputs are on Speakon (SPK) connections
Filter Facility and Low Cut
A Low Cut switch is provided removing the very lowest frequencies which may be inefficient for speaker drivers to reproduce, wasting power on inaudible output.

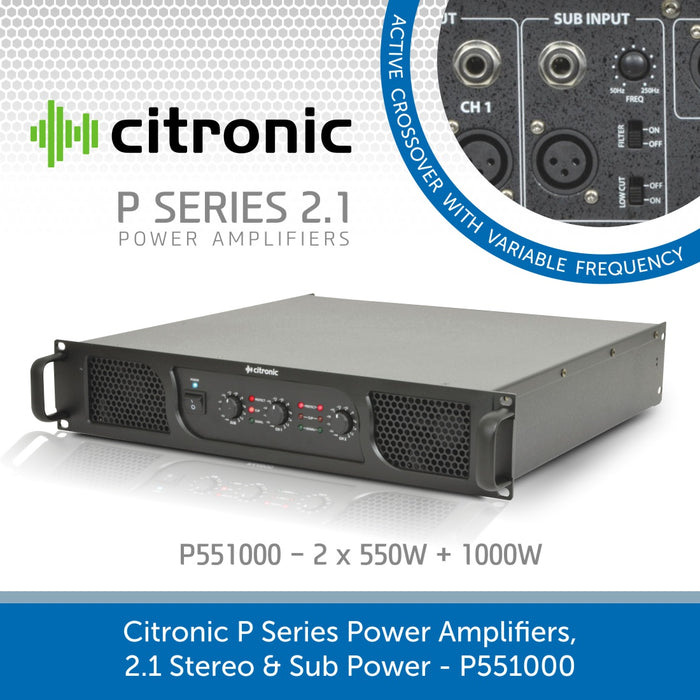

The SUB output has a filter facility, which can be switched on via the FILTER switch. When this is switched on, the SUB input is inactive and the SUB amplifier is fed from the CH1 and CH2 inputs (merged together) and the filter removes all of the signals above a cutoff frequency, allowing only low frequencies to be amplified. The cutoff frequency may be adjusted between 50Hz and 250Hz via the FREQ rotary control. A recommended start point is mid-way (approximately 150Hz) - this can be adjusted later as required.
The P-Series amplifiers have dedicated gain control for each channel and the sub.
These professional amps have a “soft-start” function which makes some checks before engaging power to the amplifiers, which may take a few seconds.
Multiple Inputs
The P44800 power amplifier offers both 6.35mm Jack and female XLR inputs, so you can connect a range of devices such as mixing desks, microphones and line splitters etc.
Rack-mountable
The Citronic P Series amps can be installed into a 19" rack cabinet or case. Rack-ears are supplied in the box. The carry handles can also be removed if necessary.
SPECIFICATION
Citronic P44800 Power Amplifier Specifications
- Power supply: 240Vac, 50Hz (IEC)
- Input impedance (balanced/unbalanced): 40k Ohms / 20k Ohms
- Controls: 3 x channel level + crossover frequency

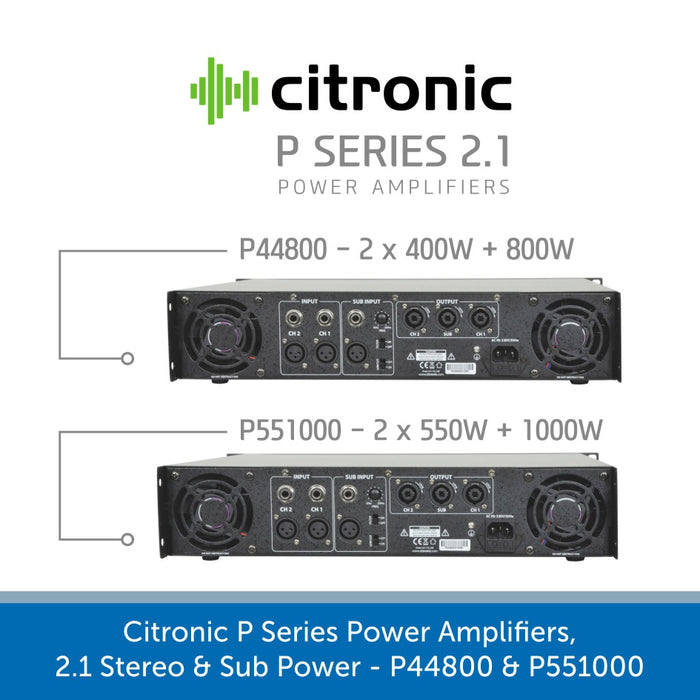

- Connections: 3 x XLRF, 3 x jack, 3 x SPK
- Cut-off frequency: 50 - 250Hz (12dB/oct)
- Damping factor: >250 (20-400Hz @ 8 Ohms)
- Slew rate: 6.5V/us
- Frequency response: 10Hz - 50kHz (-2dB)
- THD: +N 0.04%
- Signal to noise ratio: 86dB
- Low-cut filter: 30Hz fixed (12dB/oct)
- Dimensions: 483 x 439 x 88mm
- Fuse rating: F12A
- Power rms @ 8 Ohms: 250 + 250 + 500W (sub)
- Power rms @ 4 Ohms: 400 + 400 + 800W (sub)
- Weight: 21kg
