Citronic H1600 2 x 650W Class-H Power Amplifier - 2 Ohms Stable
A new range of hybrid Class-H power amplifiers from Citronic which are stable down to 2 Ohms and provide up to 2400-watts of power.
Using hybrid Class-H architecture, these Citronic power amplifiers are designed to offer a high power output whilst retaining a lightweight form factor.
The H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.
Available in 2 models with power outputs of up to 1600W (H1600) or 2400W (H2400), stable down to 2 Ohms with bridgeable modes.
Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting.

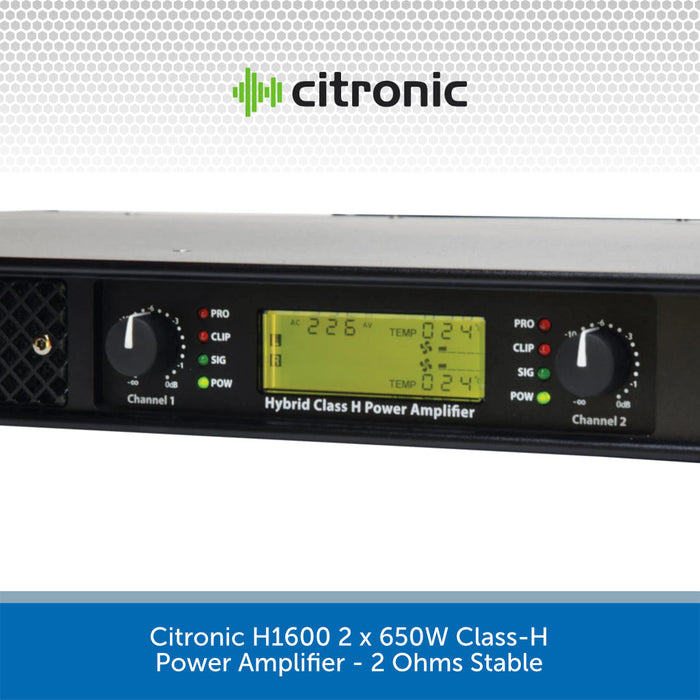

A digital display continually shows the supply voltage, internal temperature and output level.

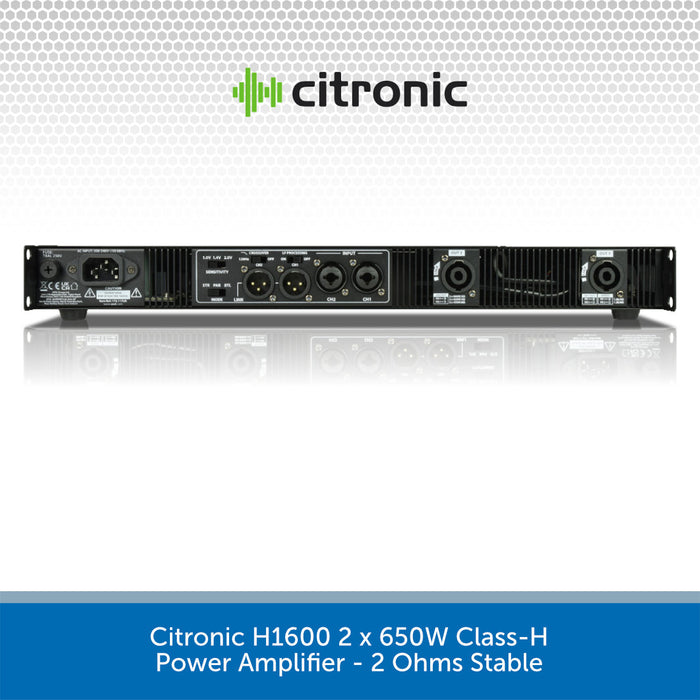

A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes.
Citronic H-Series Power Amplifiers Key Features:
- Hybrid class-H circuit design
- Digitally controlled and monitored power section
- Industry standard Class-AB bi-polar output stage
- Backlit LCD status display
- Full internal thermal and overload protection
- Stable down to 2 Ohms (4 Ohms bridged)
SPECS & DOWNLOADS
Citronic Class-H Power Amplifiers Specifications
- Power supply: 200-240Vac, 50Hz (IEC)
- Amplifier : construction: Hybrid Class-H
- Protection: Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting.
- Frequency response: 20Hz-20KHz ±0.5dB
- THD +N: 0.2%
- S/N ratio: -95dB
- Damping factor: >700
- Input sensitivity: 1.0V - 1.4V - 2.0V switchable
- Input impedance: 20K? (balanced),10K? (unbalanced)
- Dimensions: 483 x 361 x 44 mm (1U)
H1600 Key Specifications
- Fuse: T6AL 250V
- Power rms @ 8 Ohms: 2 x 450W
- Power rms @ 4 Ohms: 2 x 650W
- Power rms @ 2 Ohms: 2 x 800W (40ms burst 1kHz sine)
- Power rms bridge @ 8 Ohms: 1200W
- Power rms bridge @ 4 Ohms: 1600W (40ms burst 1kHz sine)
- Weight: 6.8kg
H2400 Key Specifications
- Fuse: T8AL 250V
- Power rms @ 8 Ohms: 2 x 650W
- Power rms @ 4 Ohms: 2 x 900W
- Power rms @ 2 Ohms: 2 x 1200W (40ms burst 1kHz sine)
- Power rms bridge @ 8 Ohms: 1800W
- Power rms bridge @ 4 Ohms: 2400W (40ms burst 1kHz sine)
- Weight: 7.0kg
