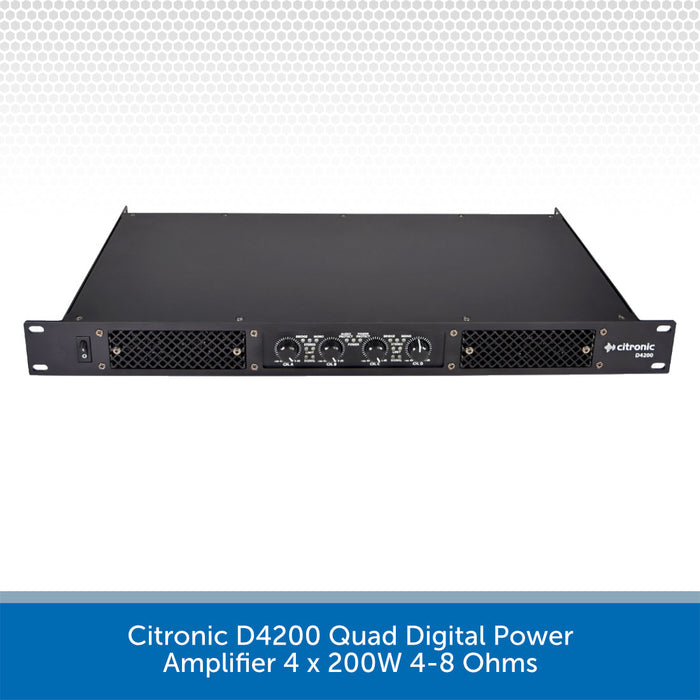

Citronic D4200 Quad Digital Power Amplifier 4 x 200W 4-8 Ohms

Original price £343.00 (inc. VAT) - Original price £343.00 (inc. VAT)
Original price £343.00 (inc. VAT)
£343.00 (inc. VAT)
£343.00 (inc. VAT) - £343.00 (inc. VAT)
Current price £343.00 (inc. VAT)
SKU 172.142

DETAILS

The Citronic D4200 is a 4 x 200W class-D digital power amplifier designed for installed & portable PA applications.

An energy-efficient switch-mode power section and class-D amplification circuit delivers accurate power-on-demand to four independent speaker outputs.

Proprietary cool guide technology provides stable temperature management for dependable operation.

Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration.

For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and channels C and D have a switchable stereo pair of 120Hz high-pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers.

For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.

Citronic D4200 Key Features:

  • Switchable bridge or parallel mono modes
  • Switchable high and low pass filters
  • Configurable as a quad, stereo or 2.1 system
  • Fully balanced audio signal path
  • Full audio and power protection with peak limiter
    SPECS & DOWNLOADS

    Download the PDF User Manual HERE >

    Citronic D4200 Specifications

    • Power supply: 220-240Vac, 50/60Hz (IEC)
    • Modes: 2 x Stereo, Parallel (mono), Bridge (mono)
    • Input sensitivity: 0dB = 0.775Vrms
    • Crossover: Input A 120Hz LPF and C+D 120Hz HPF (all switchable)

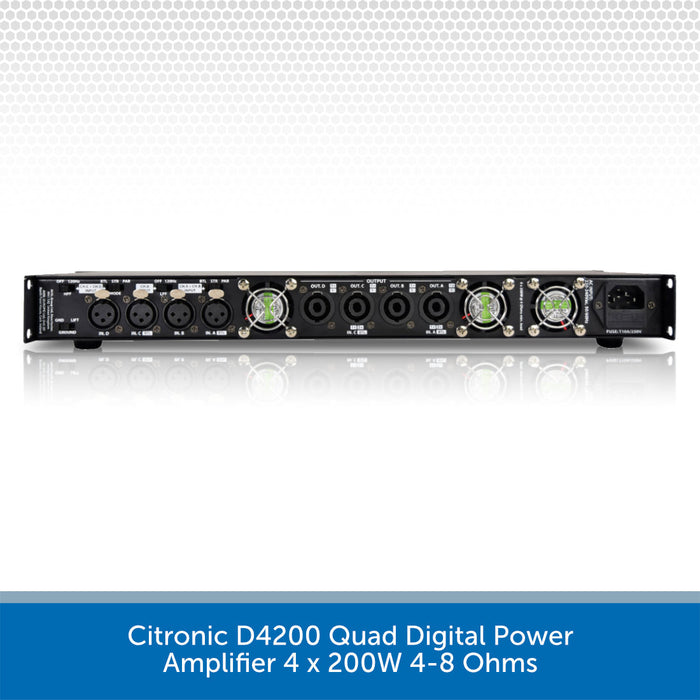

    • Input connections: 4 x XLR female
    • Sound output: 4 x SPK connectors
    • Dimensions: 482 x 308 x 44mm (without feet)
    • Output : rms @ 4 Ohms: 4 x 200W
    • Output : rms @ 8 Ohms: 4 x 100W
    • Bridge power @ 8 Ohms: 2 x 400W (both pairs of channels bridged)
    • Weight: 4.393kg

    }
