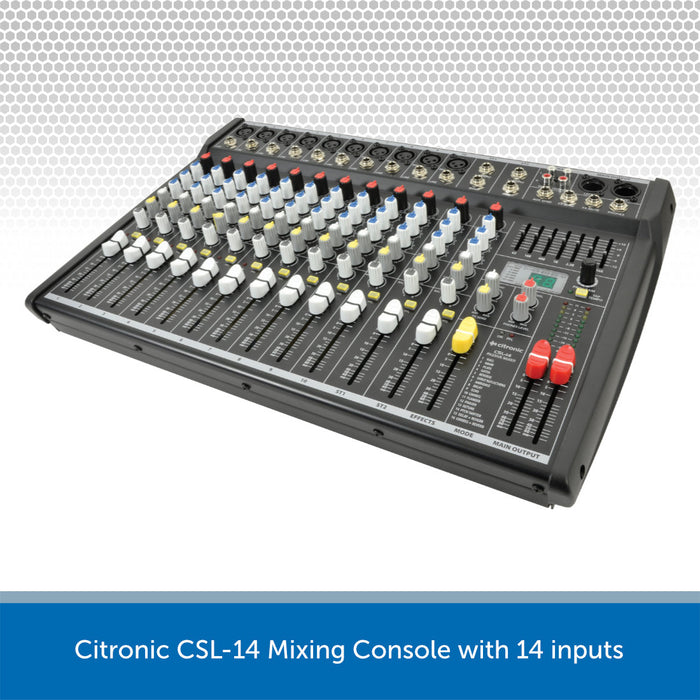

Citronic CSL-14 Mixing Console with 14 inputs

Original price £229.00 (inc. VAT) - Original price £229.00 (inc. VAT)
Original price £229.00 (inc. VAT)
£229.00 (inc. VAT)
£229.00 (inc. VAT) - £229.00 (inc. VAT)
Current price £229.00 (inc. VAT)
SKU 170.855
DETAILS

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send.

A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control.

Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars, and special events.

Key Features:

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • IEC mains powered
  • Balanced main outputs
  • 19" rack-mounting ears available: 170.846-7-8UK
SPECS & DOWNLOADS

Citronic CSL-14 Specifications

  • Power supply: 230Vac, 50Hz (IEC)
  • Phantom power: +48V (XLR inputs)
  • Power consumption: 25W
  • Fuse: T1AL
  • Input level: +24dBu
  • Output level : line: +26dBu
  • Frequency response: 20Hz-30kHz (0.5dB)
  • CMRR: >74dB (mic 1kHz)
  • THD +N: <0.01% (channel to main out)
  • Crosstalk: >85dB (fader mute), >82dB (channel)
  • Noise rms : 22Hz-22kHz: -122dBu (EIN), -82dBu (mix)
  • EQ: high: 12kHz ±15dB shelving
  • EQ: mid: 2.5kHz ±15dB band pass
  • EQ: low: 80Hz ±15dB shelving
  • Input impedance : mic (balanced): 2k Ohms
  • Input impedance : line (balanced): 10k Ohms
  • Sensitivity : mic: -60 to +14dBu
  • Sensitivity : line: -40 to +14dBu
  • 2-track: 2 x RCA in & out (-2dBu)
  • Effects: 16 program DSP (24-bit sigma-delta, 40kHz)
  • Headphone output: 6.3mm jack, 30-600 Ohms

    Citronic CSL-14 - PDF Downloads

    Download the user manual here
