Citronic CMA-8 8-Channel Compact Mixer with Bluetooth, DSP & USB Record
DETAILS
The Citronic CMA-8 is the perfect blend of versatility and convenience for both studio and live performances.
This compact 8-channel mixing desk is packed with features to meet the demands of modern audio professionals. It includes built-in DSP effects with 99 adjustable presets such as delay, reverb, and modulation effects, which can be fine-tuned using dual parameter controls for a tailored audio experience.
The USB MP3 player and recorder allow for easy playback and recording of audio files, while also functioning as an external audio device when connected to a laptop. With Bluetooth connectivity, you can stream music wirelessly from smartphones and tablets, providing seamless integration with your digital devices.
The versatile inputs include 4 mono and 2 stereo inputs with XLR/Jack sockets and switchable +48V Phantom Power, as well as a 3.5mm Aux input for additional connectivity options. Advanced channel controls feature gain control, a low-cut switch, high/low EQ controls, and an FX level control for precise audio adjustments. Output is delivered via balanced XLR connectors, ensuring low noise operation for pristine audio quality.

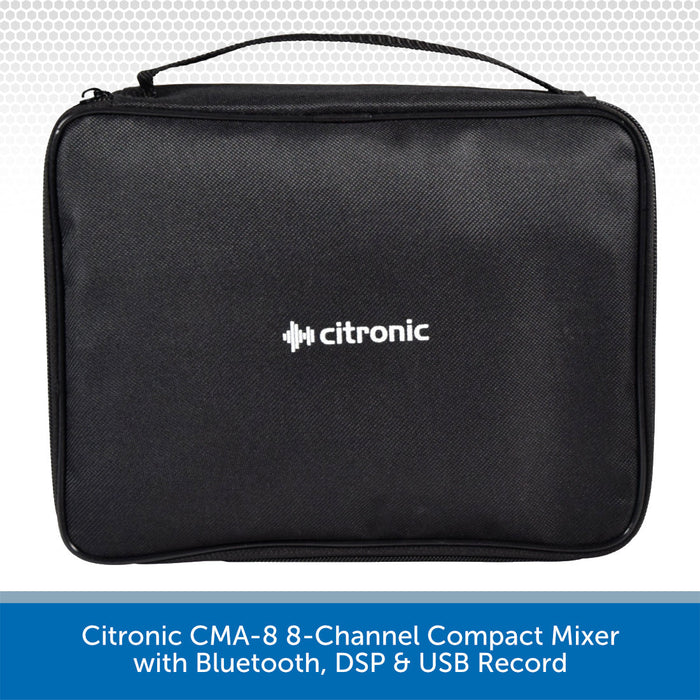

Additionally, the CMA-8 comes supplied with a padded transit bag, making it easy to transport to any gig or studio session. The Citronic CMA-8 Compact 8-Channel Mixing Desk is designed to elevate your audio mixing capabilities, whether you’re in the studio or on stage.
Citronic CMA-8 Key Features:
- DSP effect section with 99 adjustable presets
- USB mp3 audio player/recorder
- Bluetooth receiver with independent volume control
- PC/Mac audio device and aux power via USB A connection
- Switchable +48V phantom power
- Mono mic line inputs can be paired to stereo
- Balanced XLR/Jack mono inputs
- Stereo line input jacks and stereo minijack input
- Supplied in a padded transit bag
- USB type-C power supply
SPECS & DOWNLOADS
Citronic CMA-8 Specifications
- Weight: 1.125kg
- Dimensions: 232 x 183 x 60mm
- Inputs: 4 x combo XLR/jack + stereo L+R 6.3mm + stereo 3.5mm

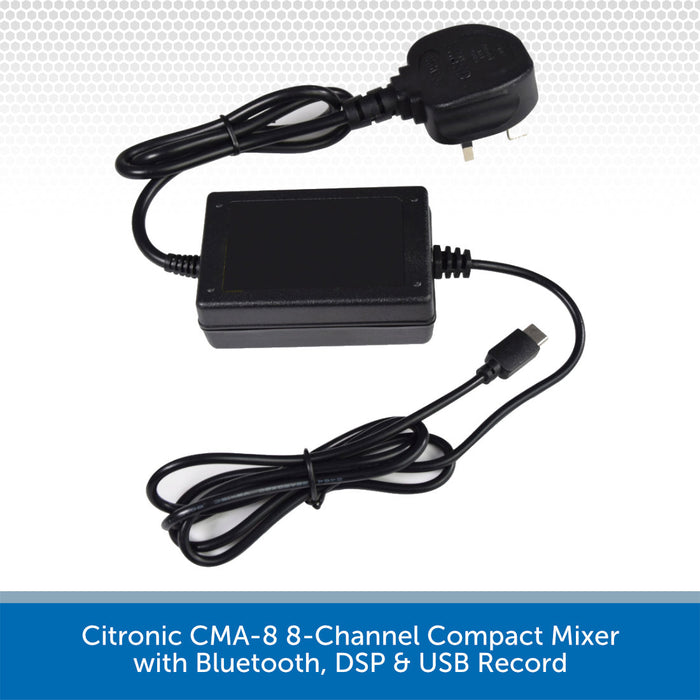

- Power supply: 5Vdc 1A min. (USB-C adaptor included)
- Power consumption max.: 5W
- Effects: 99 program DSP (2 parameter controls)
- Audio source: Bluetooth receiver, USB mp3 player/recorder
- Bluetooth version: v5.1 (+BR+EDR+BLE)
- USB version: v1.1 audio (mp3/wav/ape/flac)
- EQ: low: ±15dB @ 80Hz
- EQ: high: ±15dB @ 12kHz
- Phantom power: +48V switchable in pairs (XLR inputs only)
- Frequency response: 20Hz - 22kHz (±1dB)
- Input level: Mic +10dBu max. / Line +22dBu max.
- Input impedance: Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm
- THD +N: <0.05% @ 1kHz
- Noise: EIN -122dBu (22Hz - 22kHz)
- CMRR: >75dB (Mic 1kHz)
- Sensitivity: XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
- Crosstalk : stereo: >80dB (1kHz fader shutoff)
- Outputs: Left + Right balanced XLR, Headphones 6.3mm jack
-
Max. output level: XLR +22dBu, TRS +20dBu
