Citronic H2400 2 x 1200W Class-H Power Amplifier - 2 Ohms Stable

Original price £399.00 (inc. VAT) - Original price £399.00 (inc. VAT)
Original price £399.00 (inc. VAT)
£399.00 (inc. VAT)
£399.00 (inc. VAT) - £399.00 (inc. VAT)
Current price £399.00 (inc. VAT)
SKU 172.125

DETAILS

A new range of hybrid Class-H power amplifiers from Citronic which are stable down to 2 Ohms and provide up to 2400-watts of power.

Using hybrid Class-H architecture, these Citronic power amplifiers are designed to offer a high power output whilst retaining a lightweight form factor.

The H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.

Available in 2 models with power outputs of up to 1600W (H1600) or 2400W (H2400), stable down to 2 Ohms with bridgeable modes.

Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting.

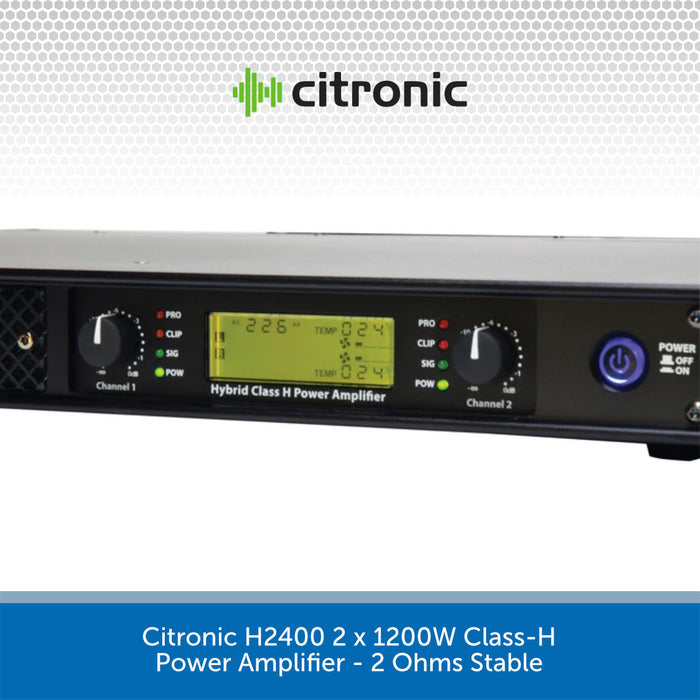

A digital display continually shows the supply voltage, internal temperature and output level.

A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes.

A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space.

Citronic H-Series Power Amplifiers Key Features:

  • Hybrid class-H circuit design
  • Digitally controlled and monitored power section
  • Industry standard Class-AB bi-polar output stage
  • Switchable 120Hz low-pass crossover
  • Backlit LCD status display
  • Full internal thermal and overload protection
  • Stable down to 2 Ohms (4 Ohms bridged)

SPECS & DOWNLOADS

Citronic Class-H Power Amplifiers Specifications

Common

  • Power supply: 200-240Vac, 50Hz (IEC)
  • Amplifier : construction: Hybrid Class-H
  • Protection: Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting.
  • Frequency response: 20Hz-20KHz ±0.5dB
  • THD +N: 0.2%
  • S/N ratio: -95dB
  • Damping factor: >700
  • Input sensitivity: 1.0V - 1.4V - 2.0V switchable
  • Input impedance: 20K? (balanced),10K? (unbalanced)
  • Dimensions: 483 x 361 x 44 mm (1U)

    H2400 Key Specifications

    • Fuse: T8AL 250V
    • Power rms @ 8 Ohms: 2 x 650W
    • Power rms @ 4 Ohms: 2 x 900W
    • Power rms @ 2 Ohms: 2 x 1200W (40ms burst 1kHz sine)
    • Power rms bridge @ 8 Ohms: 1800W
    • Power rms bridge @ 4 Ohms: 2400W (40ms burst 1kHz sine)
    • Weight: 7.0kg

    Citronic Class-H Power Amplifiers - PDF Downloads

    Download the User Manual HERE

    }
