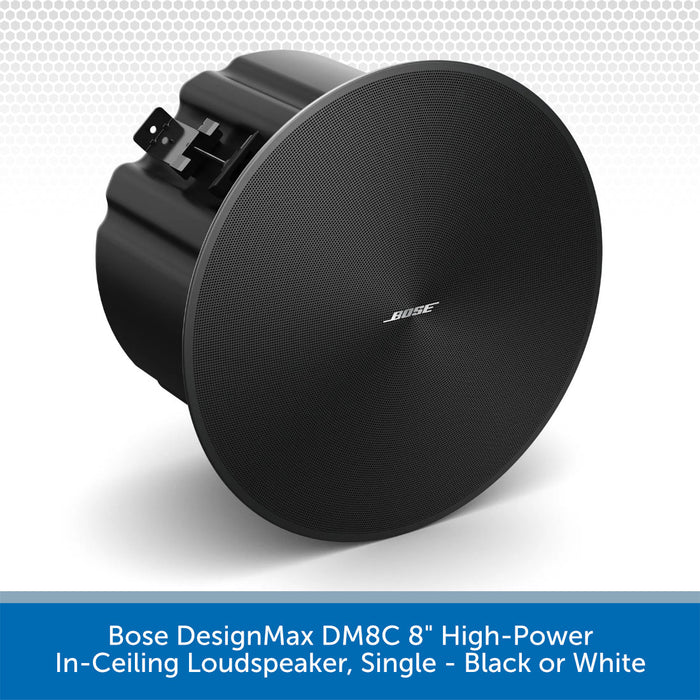

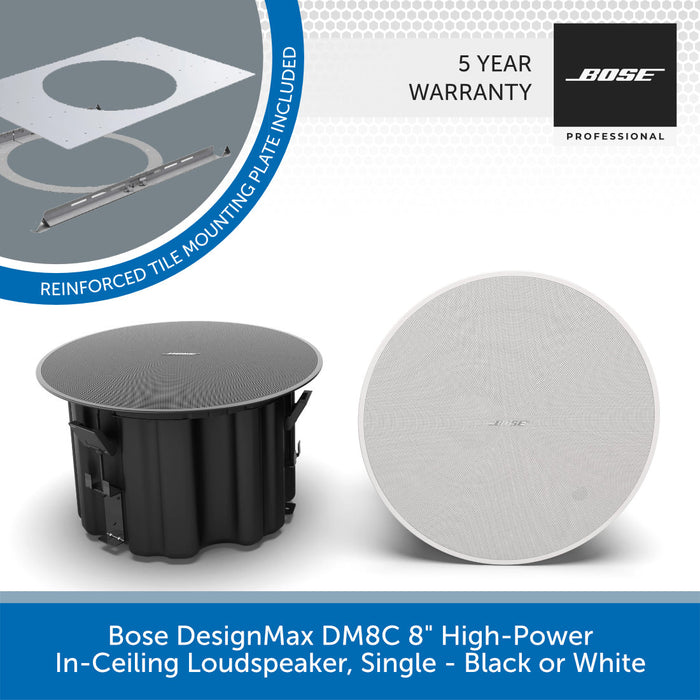

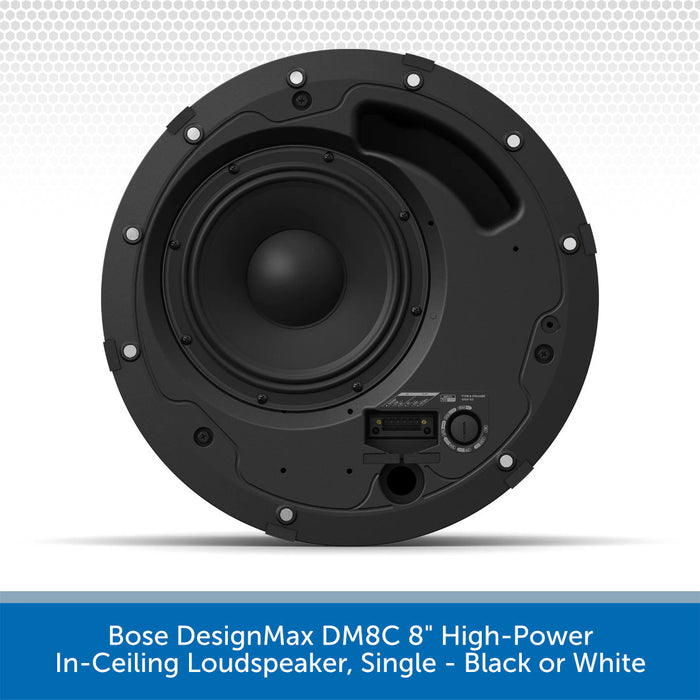

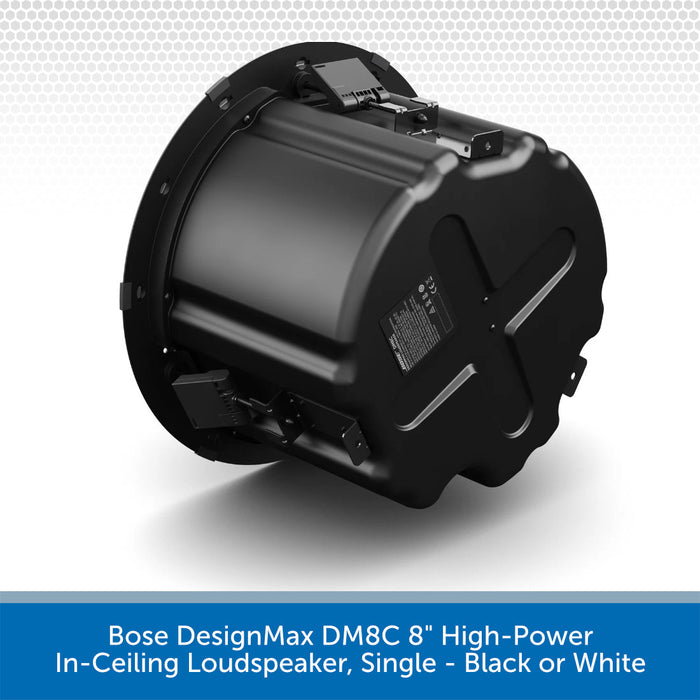

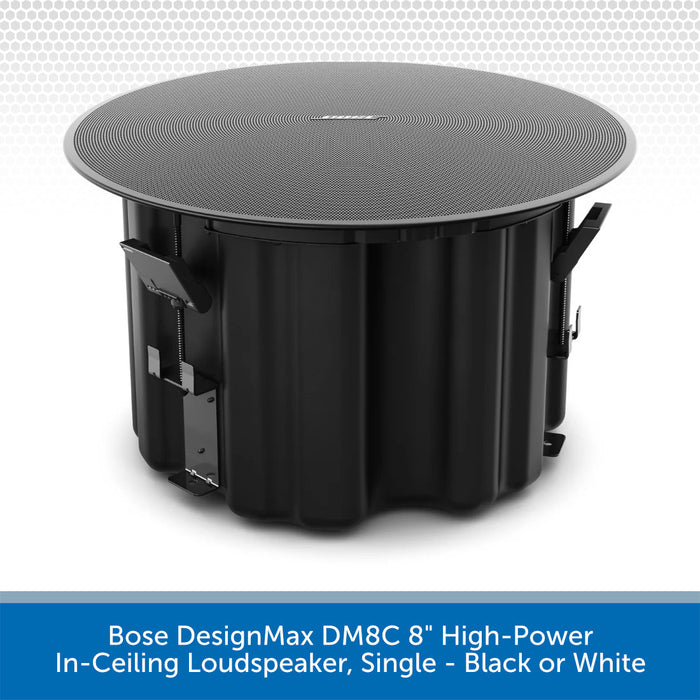

Bose DesignMax DM8C 8" High-Power In-Ceiling Loudspeaker, Single - Black or White
BLACK FRIDAY - Use code BF10 at checkout
Save an EXTRA 10% sitewide, including Sale items!
DETAILS
The Bose DesignMax DM8C In-Ceiling Loudspeaker combines high sound pressure level (SPL) capabilities with a sleek design, making it well-suited for a variety of commercial environments.
With a 150-watt output, this speaker features an 8-inch woofer and a 1-inch coaxial compression driver, delivering a broad frequency range from 52 Hz to 20 kHz.
Its efficient installation is facilitated by the patented QuickHold mounting arms, ensuring both secure placement and ease of setup.
Bose DesignMax DM8C Key Features:
-
High-SPL Performance: The DM8C delivers robust sound suitable for demanding audio applications, making it perfect for large venues that require clear, impactful sound.
-
Coaxial Two-Way Drivers: The 8-inch woofer and 1-inch compression driver offer rich lows and crisp highs, ensuring balanced audio performance across a broad frequency range.
-
Elegant In-Ceiling Design: Available in black or white, the DM8C features a minimum-bezel grille and removable logos, allowing it to blend seamlessly with any room décor.
-
Quick and Secure Installation: The patented QuickHold mounting system reduces installation time and minimizes the risk of product damage, making the DM8C easy to install in any ceiling.
-
Flexible System Integration: Combine the DM8C with other DesignMax models to create a custom audio solution tailored to your specific needs. Enhance performance with Bose Professional DSPs and amplifiers for optimized speaker EQ and SmartBass processing.
-
Versatile Applications: Suitable for a wide range of commercial settings, including performing arts venues, places of worship, conference centres, retail stores, restaurants, bars, and hospitality venues.
Why Choose the Bose DesignMax DM8C? The Bose DesignMax DM8C In-Ceiling Loudspeaker offers powerful sound and premium design, making it a versatile choice for any commercial space that demands high-quality audio. Whether for background music or more demanding applications, the DM8C delivers reliable performance with style.
In the Box:
- 1 x DesignMax DM6C Loudspeaker in Black or White
- 1 x Speaker Grilles

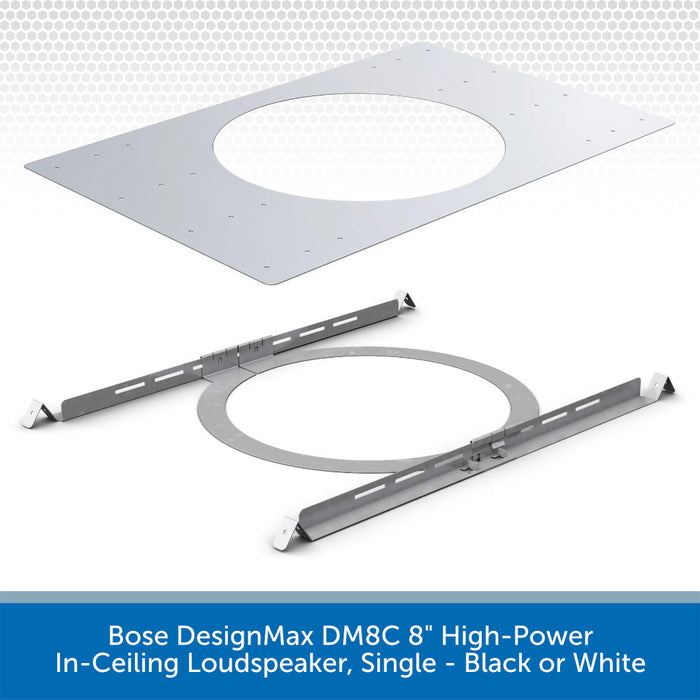

- 1 x Tile Bridges
- 1 x Cutout Template
- 1 x Installation Guide
SPECS & DOWNLOADS
Bose DesignMax DM8C PDF Spec Sheet > DOWNLOAD HERE
Bose DesignMax DM8C Specifications
Physical:
- Colours: Black (RAL 9005), white (similar to RAL 9003), paintable
- Cutout Diameter: 13.8 in (349 mm)
- Enclosure Material: Engineered-plastics front baffle with integrated steel-formed back can
- Environmental Testing: Indoor only
- Grille Material: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
- Logo: Rotatable, removable
- Mounting/Rigging Provisions: (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
- Net Weight: 21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge
- Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D): 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth
-
Shipping Weight: 28.0 lb (12.7 kg), single
Performance:
- Frequency Range (-10 dB): 52 Hz – 20,000 Hz
- Coverage, Horizontal: 135° conical
- Maximum SPL at 1 m: 113 dB
- Nominal Impedance: 8 Ω (transformer bypass)
- Power Handling, Continuous: 150 W
- Power Handling, Peak: 600 W
- Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
- Sensitivity (SPL/1 W at 1 m): 91 dB
- Transformer Taps, 100V: 5, 10, 20, 40, 80 W, bypass
- Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
- Coverage, Vertical: 135° conical
Transducers:
- Crossover Frequency: 1.5 kHz, passive 2-way crossover
- Driver Protection: Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset
- High-Frequency Transducer Quantity and Size: 1 × 1 in (25 mm) compression driver, coaxial centre-firing
- Low-Frequency Transducer Quantity and Size: 1 × 8 in (203 mm) woofer
