Bose DesignMax DM10S-SUB 10" High-Power Passive Subwoofer, Single - Black or White

by BOSE
Original price £612.00 (inc. VAT) - Original price £612.00 (inc. VAT)
Original price £612.00 (inc. VAT)
£612.00 (inc. VAT)
£612.00 (inc. VAT) - £612.00 (inc. VAT)
Current price £612.00 (inc. VAT)
SKU BOSEDM10SSUBW
Colour: White
DETAILS

The Bose DesignMax DM10S-SUB 10" High-Power Passive Subwoofer is designed to bring deep, rich bass to any indoor commercial environment, including performing arts venues, restaurants, retail stores, and hospitality spaces.

Featuring a powerful 10-inch woofer and a frequency range of 35 Hz to 125 Hz, this 300-watt subwoofer delivers impressive low-end performance, enhancing the overall audio experience in any setting.

Built with a high-density wood composite enclosure, the DM10S-SUB blends seamlessly with any room design. Available in black or white with a minimum-bezel grille, it complements the aesthetic of various commercial spaces.

The subwoofer features the patented QuickHold mounting system, which allows for quick and secure surface-mount installation using the included U-bracket. With its flexible mounting options and rotatable, removable logo, the DM10S-SUB is adaptable to various installation requirements.

Bose DesignMax DM10S-SUB Key Features:

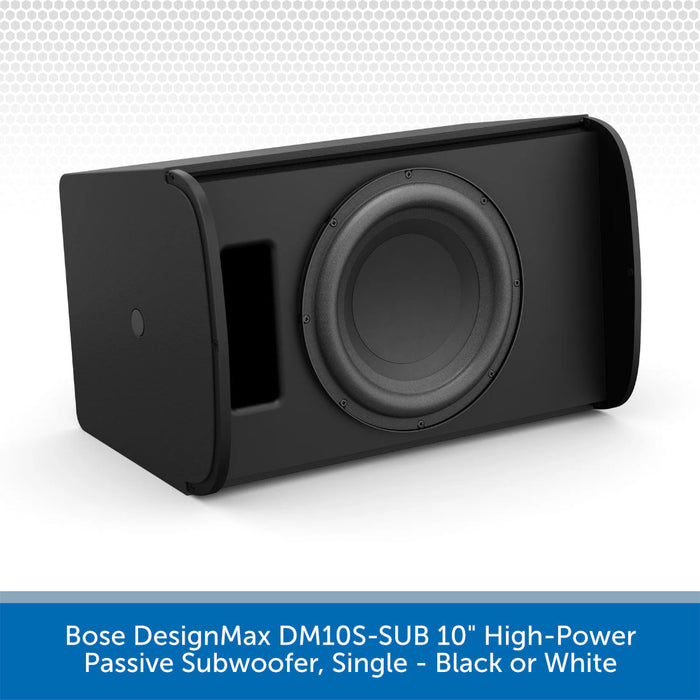

  • Rich Bass Performance: Equipped with a custom-designed 10-inch woofer, the DM10S-SUB provides a frequency range of 35 Hz to 125 Hz, delivering deep, immersive bass that enhances the audio experience in any commercial environment.

  • High Power Handling: The subwoofer boasts 300 watts of continuous power handling and up to 1200 watts peak, ensuring consistent, high-quality sound performance across various applications.

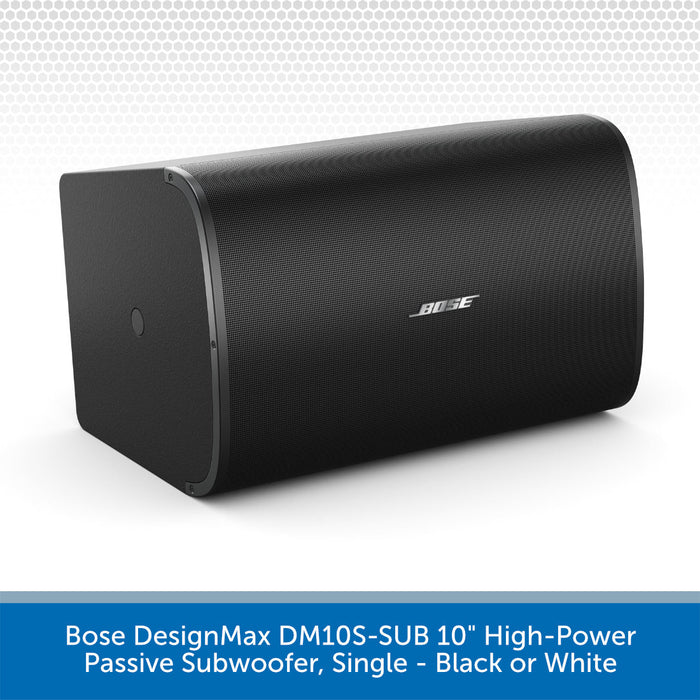

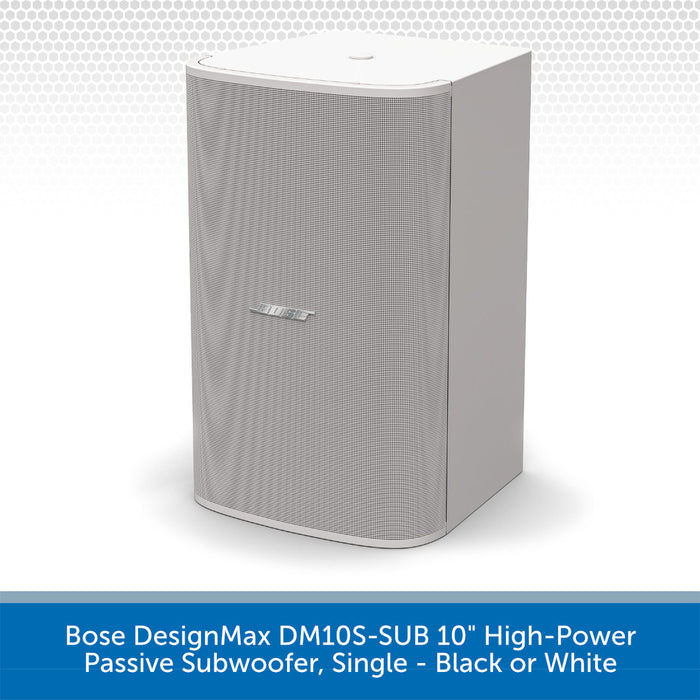

  • Elegant Design: Available in black or white with a sleek, modern appearance, the subwoofer features a minimum-bezel grille and a rotatable, removable logo, allowing it to blend seamlessly into any setting.

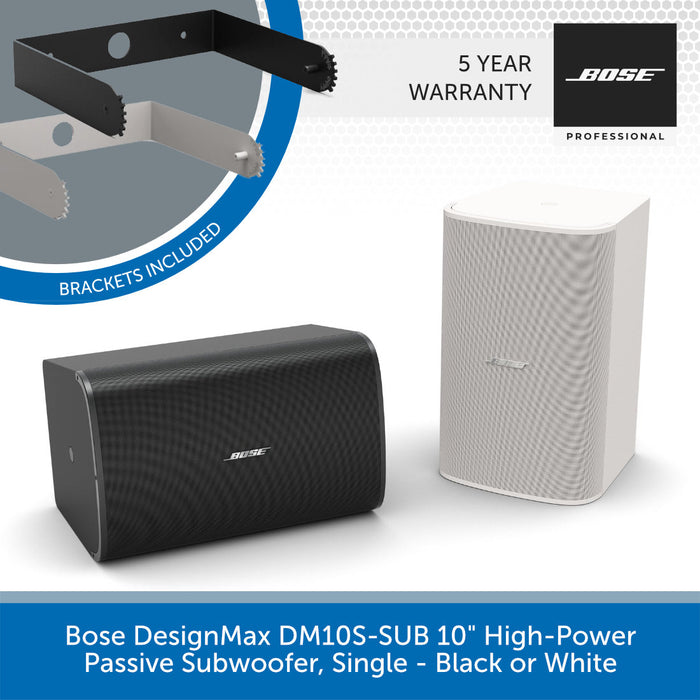

  • Quick and Secure Installation: The included QuickHold U-bracket ensures fast and secure surface-mount installation, reducing installation time and minimizing the chance of product damage.

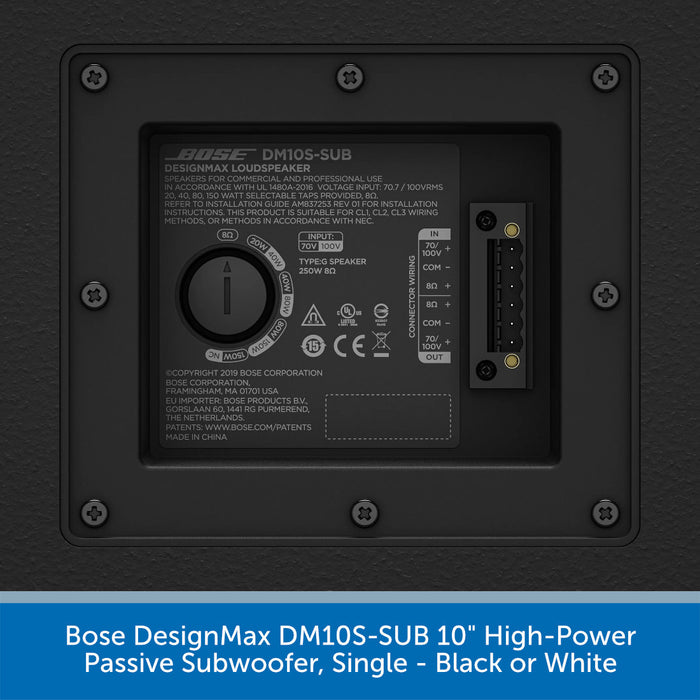

  • Flexible Integration: Compatible with various Bose Professional DSPs and amplifiers, the DM10S-SUB can be seamlessly integrated into any sound system setup. It also includes Euroblock connectors for easy wiring and installation.

  • Versatile Applications: Ideal for a variety of indoor commercial environments, including conference centers, places of worship, retail stores, restaurants, bars, and hospitality venues.

Exceptional Low-End Sound for Commercial Spaces
The Bose DesignMax DM10S-SUB brings powerful, clear bass to your indoor commercial sound installations. Its robust build, elegant design, and superior performance make it an ideal choice for enhancing the audio atmosphere in any setting.

Choose Bose for Reliable Audio Solutions
Enhance your commercial sound system with the Bose DesignMax DM10S-SUB. Its combination of deep bass, elegant design, and flexible installation makes it the perfect addition to any indoor audio setup.

In the Box:

  • 1 x DesignMax DM10S-SUB Subwoofer (Black or White)

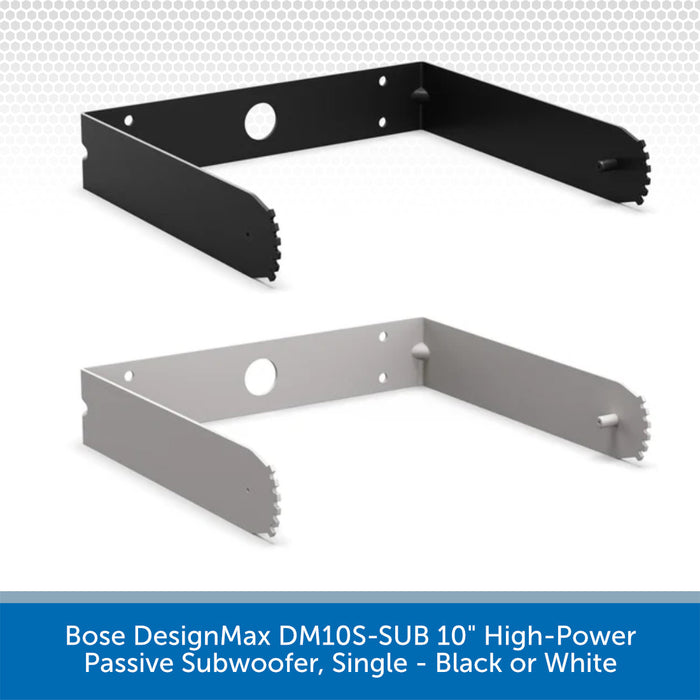

  • 1 x QuickHold U-Bracket
  • 2 x M8 Screws
  • 2 x Rubber Caps
  • 1 x Installation Guide
SPECS & DOWNLOADS

Bose DesignMax DM10S-SUB PDF Spec Sheet > DOWNLOAD HERE

Bose DesignMax DM10S-SUB Specifications

Physical:

  • Colours: Black (RAL 9005), white (RAL 9003), paintable
  • Enclosure Material: High-density wood composite with solid colour laminate, UV fade-resistant
  • Environmental Testing: Indoor only
  • Grille Material: Perforated steel, powder-coated finish, paintable, tamper-resistant design
  • Logo: Rotatable, removable
  • Mounting/Rigging Provisions: QuickHold mounting system with included U-Bracket, (1) M8 safety cable attachment insert
  • Net Weight: 35.5 lb (16.1 kg), loudspeaker with grille & bracket
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (H×W×D): 19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm), loudspeaker / 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm), loudspeaker with bracket
  • Shipping Weight: 41.5 lb (18.8 kg)

Performance:

  • Frequency Range (-10 dB): 35 Hz – 125 Hz
  • Coverage, Horizontal: Omnidirectional below 200 Hz
  • Maximum SPL at 1 m: 115 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, Continuous: 300 W
  • Power Handling, Peak: 1200 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 90 dB
  • Transformer Taps, 100V: 40, 80, 150 W, bypass
  • Transformer Taps, 70V: 20 W, 40 W, 80 W, 150 W, bypass
  • Coverage, Vertical: Omnidirectional below 200 Hz

Transducers:

  • Crossover Frequency: 80 Hz – 200 Hz via active crossover in DSP
  • Driver Protection: Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
  • Low-Frequency Transducer Quantity and Size: 1 × 10 in (254 mm) woofer
}
