Audiokraft PCS-40 - 40W In-Ceiling Speakers & Adastra A4 Amplifier, Dual-Zone System

£439.00 (inc. VAT)
SKU 953404-6PCS40-W
Amount of Speakers
Speaker Cable
Colour of Grill

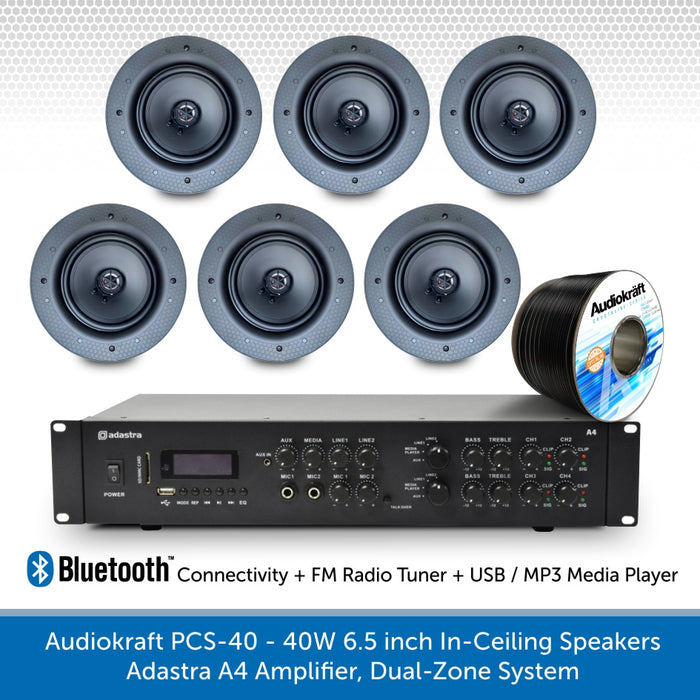

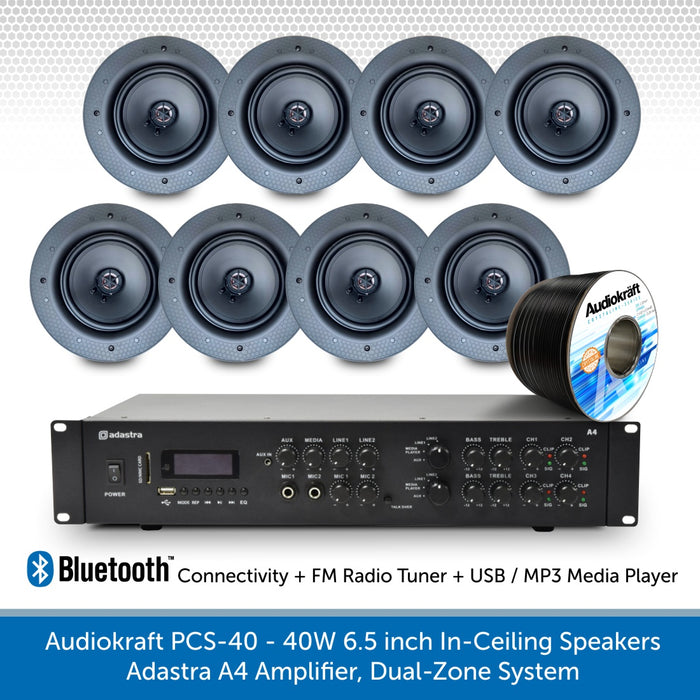

Audiokraft PCS-40 - 40W In-Ceiling Speakers & Adastra A4 Amplifier, Dual-Zone SystemThis high-quality Audiokraft dual-zone Bluetooth music system comes complete with the more powerful Adastra A4 4 x 200W Stereo Amplifier & up to 8 Premium PCS-40 Audiokraft 40W In-Ceiling Speakers.

A superb sounding music system offering dual-zone PA with audio source selection & volume control for each zone: designed for multi-zone audio installations into bars, restaurants, retail environments, and homes etc.

The Adastra A4 Mixer Amplifier is high-powered 4 x 200W and features Bluetooth Connectivity, an FM radio tuner, and a USB/MP3 media player offering seamless audio streaming from any audio device.

Audiokraft PCS-40 - 40W In-Ceiling Speakers & Adastra A4 Amplifier, Dual-Zone SystemKey Features:

  • High-powered 4 x 200W Music System
  • 2-Zone control - Audio source selection & volume control
  • Bluetooth, FM Radio Tuner, USB/MP3 Media Player
  • Supplied with 6 x Premium 6.5" In-Ceiling Speakers
  • Perfect for any home or commercial environment
  • Ideal for high-end music playback
  • Quick and easy to install

Adastra A4 4 x 200W Mixer Amplifier

Fully featured PA amplifier with 2 independent stereo zone outputs and mixer section for 2 microphones and a stereo audio source.

An inbuilt media player section offers playback of MP3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner.

A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times.

2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels to deliver up to 4 x 200W.

Designed to offer installers a comprehensive dual-zone PA for bars, restaurants and function rooms.

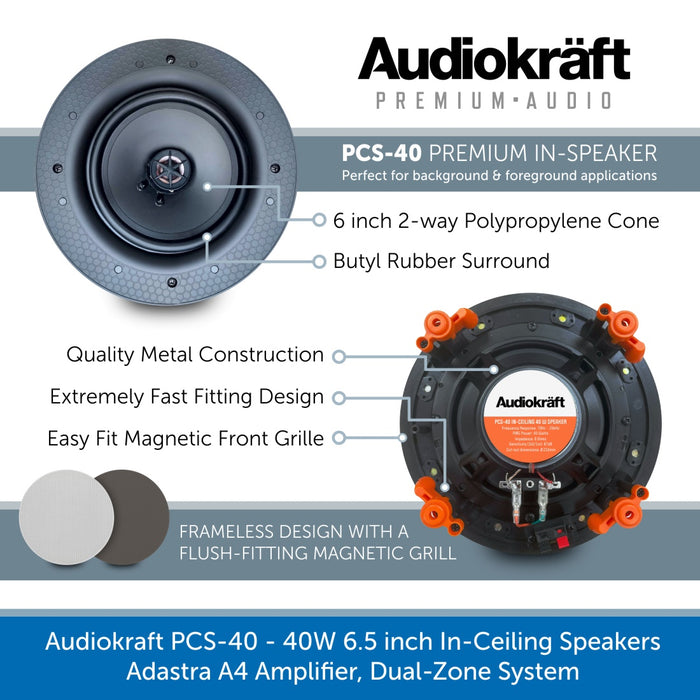

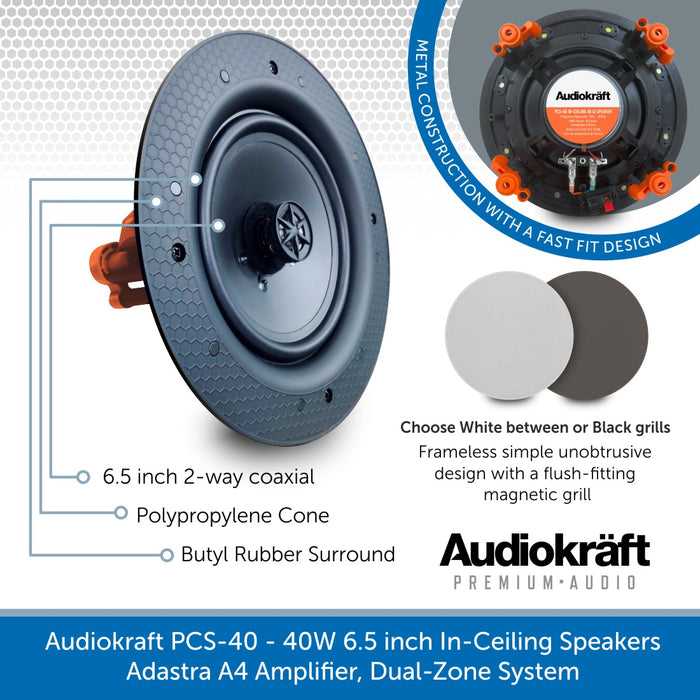

Audiokraft PCS-40 - 40W 6.5 inch Ceiling Speakers & Adastra A2 Bluetooth AmplifierAudiokraft PCS-40 6.5 inch 40W In-Ceiling Speakers

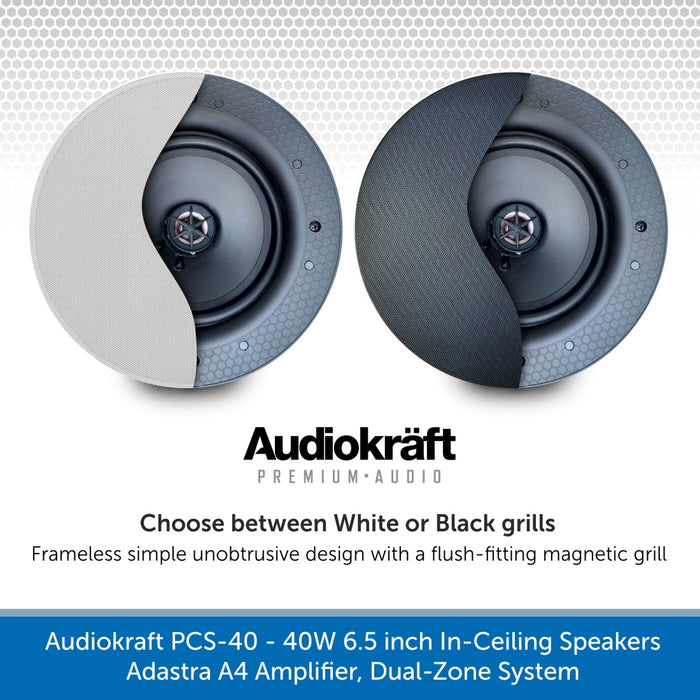

The frameless design of the PCS-40 ceiling speaker makes it one of the most discrete ceiling speakers able to match most decors.

With its Polypropylene cone and butyl rubber surround the speaker is suited to a wide variety of applications where high quality background or foreground music is required, such as, restaurants, bars, retail, residential or even schools and colleges.

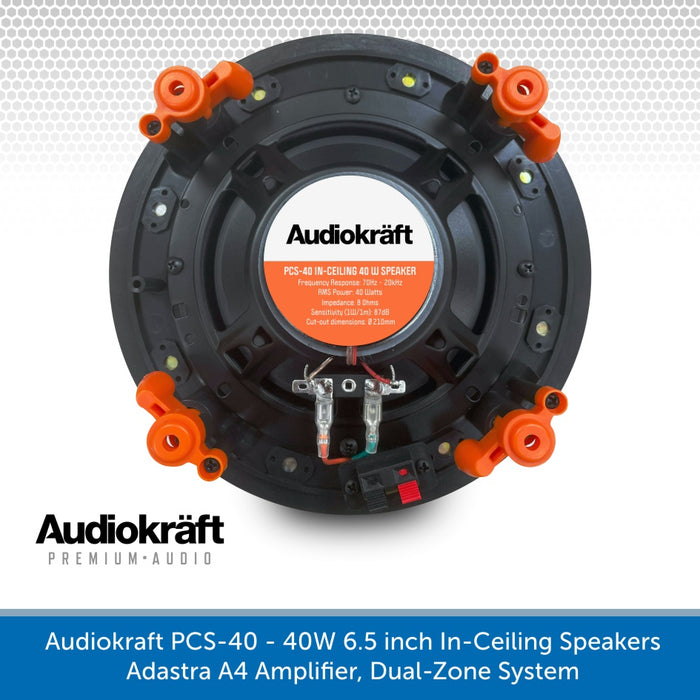

Constructed in metal and utilising a 'dog-leg' installation, this product is extremely fast fitting and accessible from the front with accessible environmental EQ controls

Audiokraft 6.5 inch Premium 60W Ceiling Speakers & Adastra A2 Bluetooth Amplifier

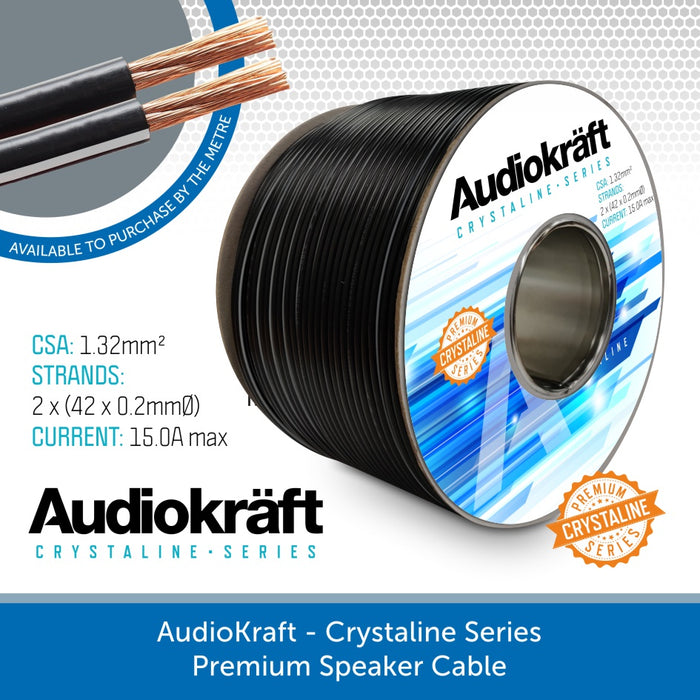

AudioKraft Crystaline Series is a premium range of speaker cable.

With 42 strands per wire its perfect for this dual zone system.

This professional-grade audio cable is designed to bring you high-quality, reliable audio that will last for years to come.

If you require any further assistance regarding our Audiokraft range just contact us on 02476 369890 and one of our experts will be happy to help. Or use our Request a Call Back page for a FREE no obligation system design & consultation service.

SPECIFICATION

Adastra A4 Mixer Amplifier Specifications

  • Power supply: 230Vac, 50Hz (IEC)
  • Power consumption max.: 360W
  • Fuse: F5A, 250V
  • Output power rms @ 4 Ohms: 4 x 200W
  • Output power rms @ 8 Ohms: 4 x 100W
  • Amplifier: construction: Class D
  • Frequency response: 20Hz - 20kHz ±0.5dB
  • Microphone inputs: 2 x 6.3mm jack (mono)
  • Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
  • Input sensitivity : line: 0.775Vrms
  • Auxiliary input: 3.5mm stereo jack
  • Input sensitivity : aux: 0.480Vrms
  • Input impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
  • Audio source: USB/SD mp3 playback, FM tuner, BT receiver
  • Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
  • Line output: 2 x RCA
  • Speaker outputs: 4mm binding posts (4 channels)
  • Antenna connection: F type (FM tuner)
  • Output controls: 2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4
  • Dynamic range: 92dB
  • THD: +N <0.1%
  • Protection: Thermal, over-current, over-voltage, short-circuit
  • Dimensions: 482 x 240 x 88mm
  • Weight: 5.98kg

    Audiokraft PCS-60 Ceiling Speakers Specifications

    • Nominal Impedance: 8 Ohms
    • Power (RMS): 60W
    • Driver: 6.5 inch
    • Driver Material: Kevlar Woven Cone
    • Single Tweeter: 0.75 inch
    • Tweeter Material: Titanium Dome
    • Frequency Response (±3db): 60 Hz-20 kHz
    • Efficiency: 90dB
    • Colour: White (RAL 9010)
    • Dimension: Ø 227mm x 87mm
    • Cut-out Size: Ø 210mm
    • Weight (Net): 1.52kg
    • Weight (Gross): 2.00kg
       DOWNLOADS

      Audiokraft PCS-60 - PDF Downloads

      Download the PDF Specification Sheet HERE

      Download the PDF Manual HERE

      ADASTRA A4 4 CHANNEL STEREO PA AMPLIFIER  - PDF FILE DOWNLOAD

       Download the user manual HERE
