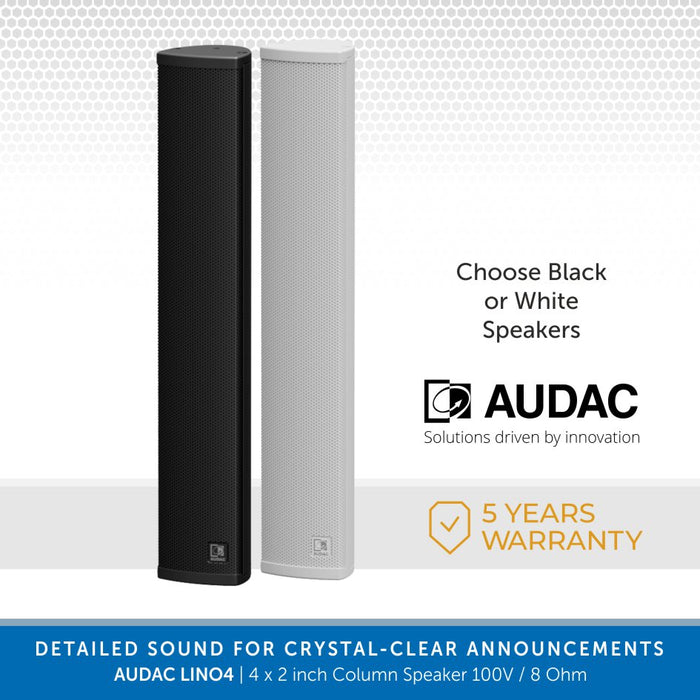

AUDAC LINO4 - 4 x 2 inch Column Speaker 100V / 8 Ohm, Choose Black or White

Original price £179.00 (inc. VAT) - Original price £179.00 (inc. VAT)
Original price £179.00 (inc. VAT)
£179.00 (inc. VAT)
£179.00 (inc. VAT) - £179.00 (inc. VAT)
Current price £179.00 (inc. VAT)
Colour: Black

The AUDAC LINO series are column speaker series designed for a wide variation of general-purpose applications in acoustic difficult environments, ranging from speech and announcement applications to background music systems.

Typical applications are houses of worship, auditoria, presentation rooms, public transportation hubs, … and many more. They are solid constructed using solid aluminum materials and finished through a rigid finely perforated front grill.

The LINO4 column speaker consists of 4 x 2” low/mid-frequency drives with a 1” central positioned tweeter for the high frequencies. It reaches a power handling of 20 watts, while a multi-tapping line transformer allows it to be connected in 70V/100V public address systems with power taps for 20W, 10W and 5W (2.5 W for 70V use only). It offers solutions for uniform acoustic performance in any type of system in reverberant venues, while reducing echo and microphone feedback to optimise the intelligibility of music & speech.

Mounting is done through an L-shaped bracket on top and bottom, offering optimal flexibility for fixation and directional placement. The distance from the speaker to the wall is 10mm, while it can be vertically inclined 4°. Connections are made through a multi-tapping terminal block connector and A multi-tapping line transformer allows them to be connected to 70/100V public address systems with various power tapping settings, while connections in low impedance systems are also possible.

*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB - 1/3 oct) , which are critical for the speech intelligibility in the main application field of these loudspeakers.

AUDAC LINO4 Key Features:

  • 10 mm distance to wall
  • Slimline aluminum design
  • 4 x 2" high-quality broadband speakers
  • Multi-tapping 70V / 100V line transformer
  • Finely perforated front grill
  • Multi-functional L-shaped wall bracket
  • 4° vertical incline angle

      Download the Product Data Sheet HERE >

      AUDAC LINO4 Specifications

      • Speaker type: Column speaker
      • Peak power handling: 80 W
      • Program power handling: 40 W
      • RMS/AES power handling: 20 W
      • Impedance: 8 Ω
      • Sensitivity (1W/1m): 88 dB
      • Sound Pressure (Max. W/1m): 101 dB
      • Frequency Range (-10 dB): 120 Hz - 20 kHz
      • 100V Line Transformer Tappings: 20W, 10W, 5W
      • Drivers: 4 x 2”
      • Connectors: 6-pin Euro Terminal Block
      • Temperature Operating: -20 - 50 °C
      • Dispersion Horizontal: 160° (-6 dB avg 1 kHz - 4 kHz)
      • Dispersion Vertical: 33° (-6 dB avg 1 kHz - 4 kHz)
      • Construction: Aluminum
      • Front finish: Aluminium grill

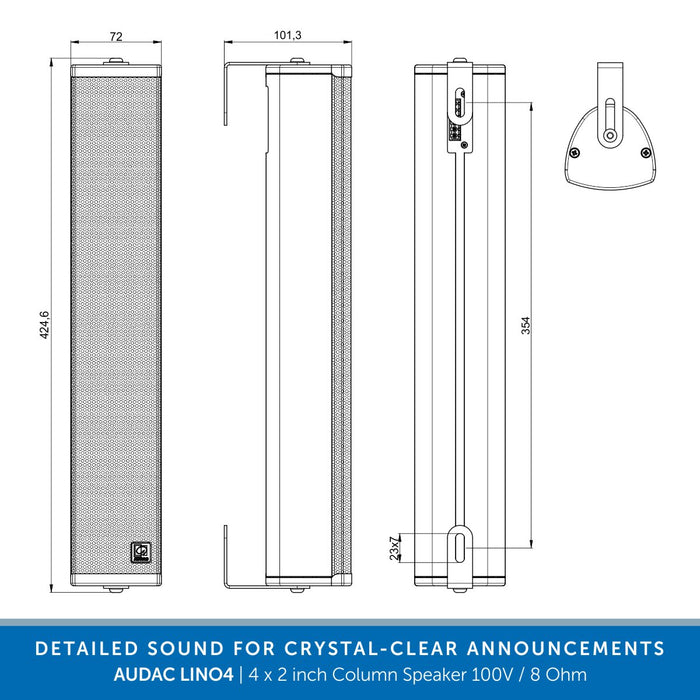

      • Dimensions: 72 x 414 x 68.3 mm (W x H x D)
      • Weight: 1.81 kg
