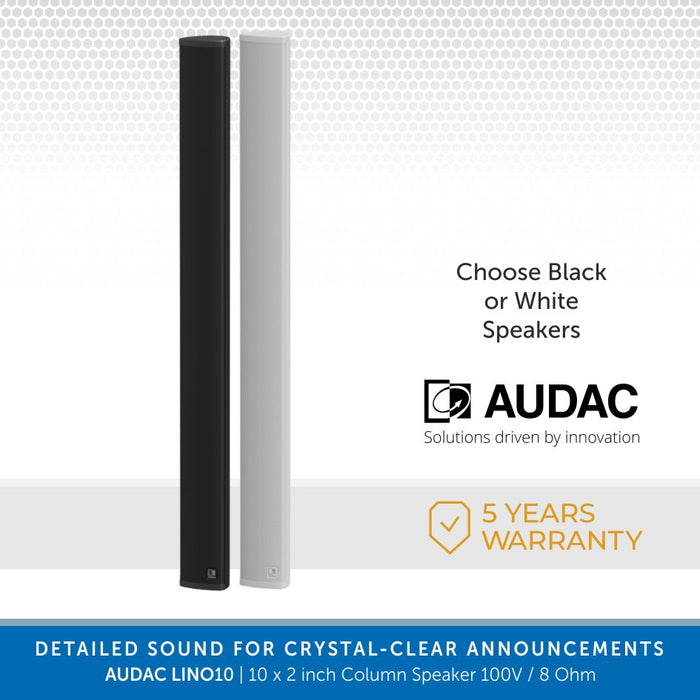

AUDAC LINO10 - 10 x 2 inch Column Speaker 100V / 8 Ohm, Choose Black or White
BLACK FRIDAY - Use code BF10 at checkout
Save an EXTRA 10% sitewide, including Sale items!
DETAILS
The AUDAC LINO series are column speaker series designed for a wide variation of general-purpose applications in acoustic difficult environments, ranging from speech and announcement applications to background music systems.
Typical applications are houses of worship, auditoria, presentation rooms, public transportation hubs, … and many more. They are constructed using solid aluminium materials and finished through a rigid finely perforated front grill.

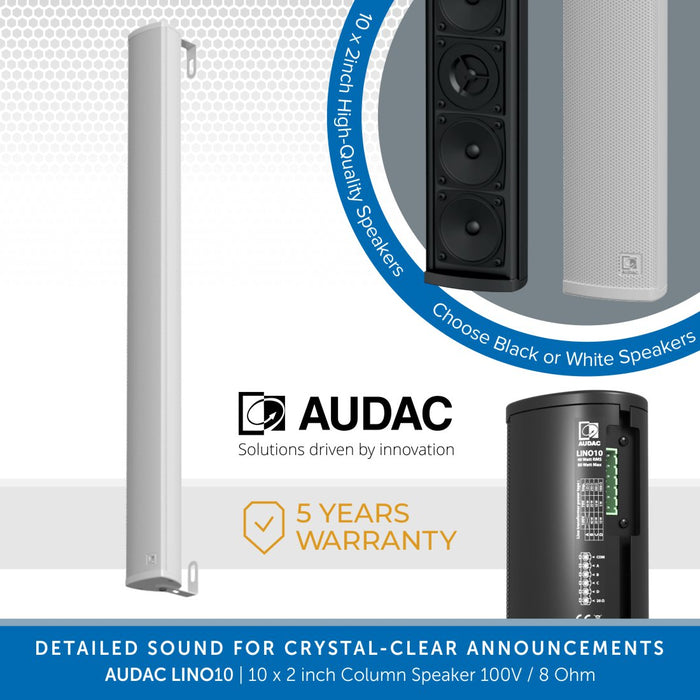

The LINO10 column speaker consists of 10 x 2” low/mid-frequency drives with a 1” central positioned tweeter for the high frequencies. It reaches a power handling of 40 Watt, while a multi-tapping line transformer allows it to be connected in 70V/100V public address systems with power taps for 40W, 20W and 10W (5 W for 70V use only). It offers solutions for uniform acoustic performance in any type of system in reverberant venues, while reducing echo and microphone feedback to optimise the intelligibility of music & speech.
Mounting is done through an L-shaped bracket on top and bottom, offering optimal flexibility for fixation and directional placement. The distance from the speaker to the wall is 10mm, while it can be vertically inclined 2°. Connections are made through multi-tapping terminal block connector and A multi-tapping line transformer allows them to be connected to 70/100V public address systems with various power tapping settings, while connections in low impedance systems are also possible.
*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB - 1/3 oct) , which are critical for the speech intelligibility in the main application field of these loudspeakers.
AUDAC LINO10 Key Features:
- 10 mm distance to wall
- Slimline aluminum design
- 10 x 2" high-quality broadband speakers
- Multi-tapping 70V / 100V line transformer
- Finely perforated front grill
- Multi-functional L-shaped wall bracket
- 2° vertical incline angle
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
AUDAC LINO10 Specifications
- Speaker type: Column speaker
- Peak power handling: 160 W
- Program power handling: 80 W
- RMS/AES power handling: 40 W
- Impedance: 20 Ω
- Sensitivity (1W/1m): 90 dB
- Sound Pressure (Max. W/1m): 107 dB
- Frequency Range (-10 dB): 120 Hz - 20 kHz
- 100V Line Transformer Tappings: 40W, 20W, 10W
- Drivers: 10 x 2”
- Connectors: 6-pin Euro Terminal Block
- Temperature Operating: -20 - 50 °C
- Dispersion Horizontal: 160° (-6 dB avg 1 kHz - 4 kHz)
- Dispersion Vertical: 15° (-6 dB avg 1 kHz - 4 kHz)
- Construction: Aluminum
- Front finish: Aluminium grill

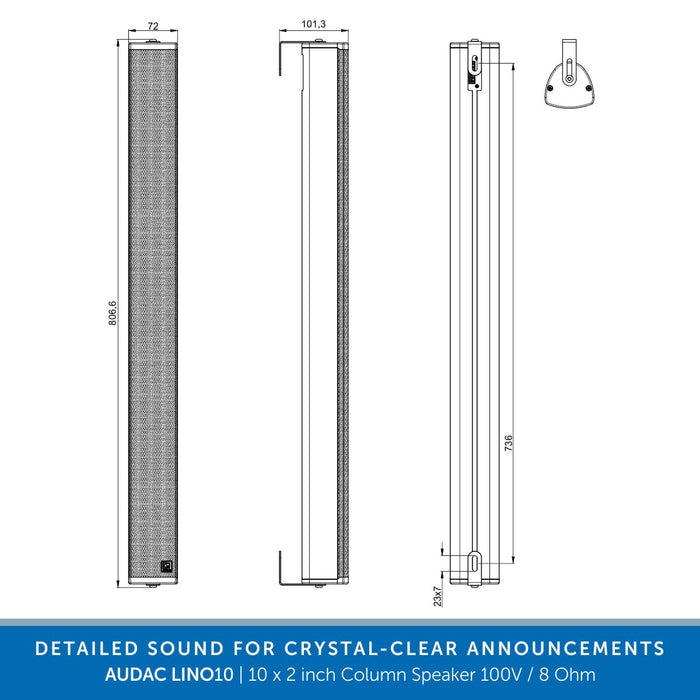

- Dimensions: 72 x 796 x 68.3 mm (W x H x D)
- Weight: 3.7 kg
