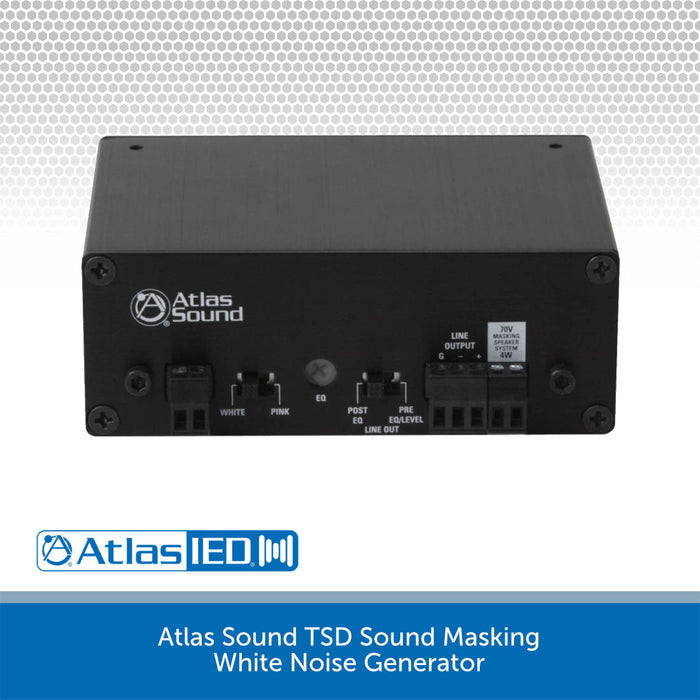

Atlas Sound TSD Sound Masking White Noise Generator

£339.00 (inc. VAT)
SKU TSD-GPN1200
DETAILS

Part of the ‘TSD’ Time-Saving Device range, Atlas IED’s new TSD-GPN1200 is an ideal Sound Masking Generator solution for basic sound masking systems, where the provision of white/pink noise is required to mask conversations that may be private (eg. in a doctor’s surgery or pharmacy advice area) or where multiple conversations may be distracting (eg. an open plan sales floor).

The analogue topology of the Masking Generator ensures repetition of cycles – commonly found in other low-cost generators - is eliminated

The TSD-GPN1200 allows the selection of white or pink noise sources and incorporates a variable balanced output to match the input requirements of Atlas IED equalizers and amplifiers.

In addition to the line-level output, a 4W 70v (2W @ 100V) output is provided to power up to 6 sound masking loudspeakers (tapped at 0.6W).

Both outputs can be used simultaneously allowing large zones to be screened with external equalization and amplification, while a smaller zone is powered by the 100v amplifier with spectrum control from the integrated hi-cut filter.

Audio Applications

  • Audio Sound Masking
  • Security Masking
  • Pink Noise Generator
  • White Noise Generator
  • Amplifier

Key Features

  • Balanced Line Output Plus 4W, 70v (2W, 100v) Output
  • Adjustable Gain and Hi-cut Filter
  • EQ & Gain Bypass for Line Output
  • Selectable Pink or White Noise source
  • Stand-alone or Rack-mountable
  • Security covers included for All rear panel controls
  • Meets energy star standards
  • Compact Chassis Design
SPECS & DOWNLOADS

Atlas Sound TSD-GPN1200 Specifications

  • Chassis Material: Aluminum
  • Noise Generator Input: Internal Pink & White Selectable
  • Output Types: Qty 1, Balanced Line / Qty 1, Speaker out 70v Masking Systems
  • Connection Outputs: Removable 3 position Captive Screw 3.5mm Spacing
  • Impedance: 300? Balanced, 150? Unbalanced
  • Line Output Level: Maximum output 500mv / 4W, 70v (2W, 100v)
  • Controls: Level Control, Noise Generator Select, Line Out Select, EQ Adjust
  • Topology: Random Analog
  • Frequency Response: 20Hz~20kHz Line Out Pre EQ Only
  • EQ Filter: High Cut, Variable, 1kHz~7kHz / 6dB
  • 24v DC: 250mA
  • Average Power Consumption: 100mA / 2.4W
  • Dimensions: 39(H) x 101(W) x 70(D) mm
  • Weight (Net): 0.17kg
  • Weight (Gross): 0.25kg

Atlas Sound TSD-GPN1200 PDF Downloads

Download the Spec Sheet Here

Download the User Manual Here
